How to Sew with Conductive Thread Without Short Circuits

How to Sew with Conductive Thread Without Short Circuits (Beginner's Guide)

Conductive thread is magic: it turns a needle and thread into wiring. It's also the number one place beginner wearable projects go wrong — one stray stitch touches another and suddenly your LED won't light, your board resets, or your battery drains overnight.

The good news: short circuits are completely avoidable once you know the handful of rules below. This is the guide I wish every student had before their first stitch.

What you'll need

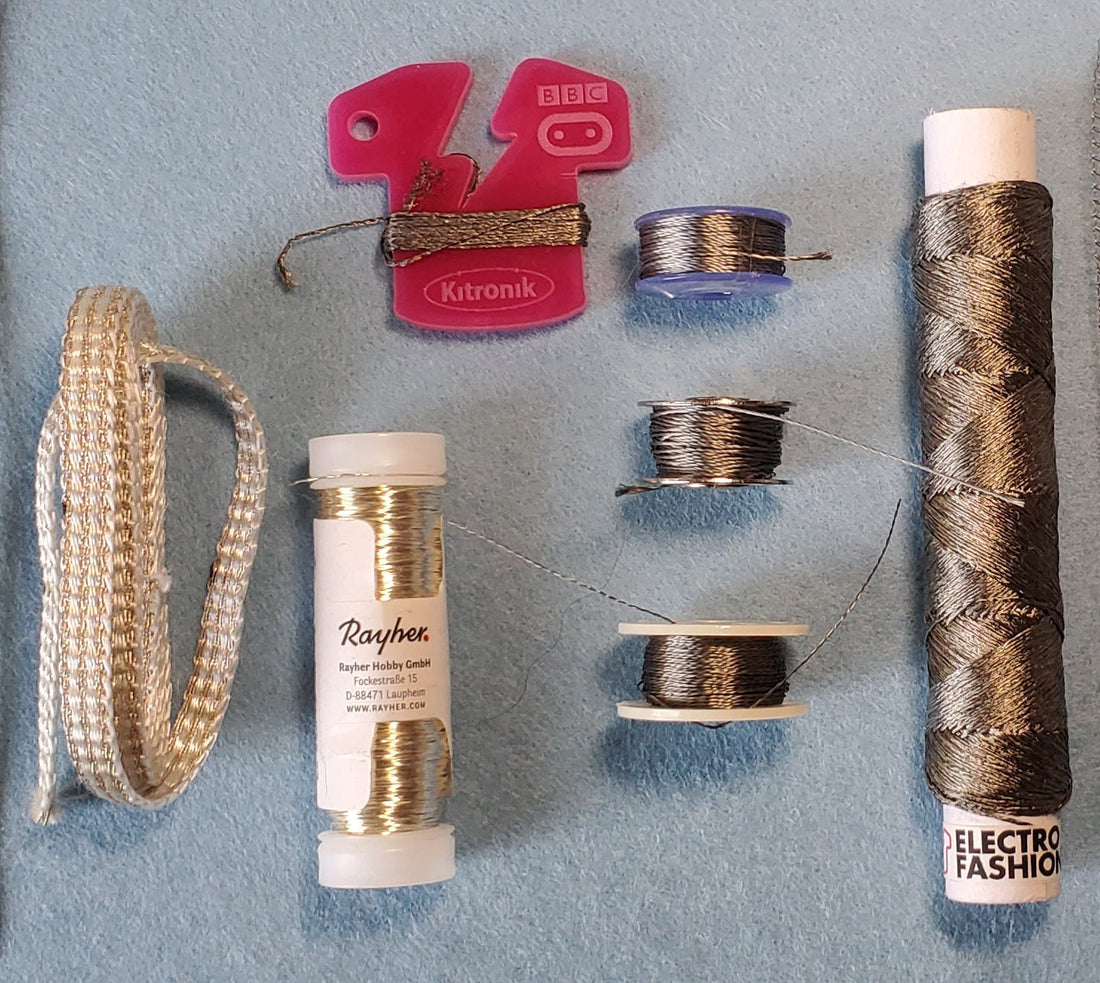

• Stainless steel 2-ply conductive thread — stainless doesn't corrode or tarnish, which makes it the most reliable choice for beginners
• A needle with a larger eye (conductive thread is thicker and springier than cotton)
• Fabric to stitch on — felt is wonderfully forgiving for a first project
• A sewable board and LED to connect (browse the Tailor collection for supplies)

Rule 1: One trace, one path — never let stitches cross

Every line of conductive stitching is a wire. If two "wires" touch anywhere along their length, electricity takes the shortcut, and that's your short circuit.

Before you thread a needle, draw your circuit on the fabric with chalk or a washable marker. Plan power and ground lines so they never cross. If they absolutely must cross, one of them needs insulation at the crossing point — a patch of plain fabric stitched between the layers, or run one trace on the back of the fabric while the other stays on the front.

Rule 2: Tie knots like you mean it, then seal them

Conductive thread is springy and slippery, and a loose tail is a short circuit waiting to happen — tails love to curl over and touch a neighbouring trace.

• Tie off with two or three overhand knots, pulled tight.
• Trim tails short — 2 to 3 millimetres.
• Seal the knot with a tiny dab of clear nail polish or fabric glue. This locks the knot AND insulates the cut end.

Rule 3: Keep your stitches small and snug

Long, loose stitches sag, and saggy stitches wander into places they shouldn't. Aim for a running stitch of roughly 3–5mm, pulled snug against the fabric (but not so tight the fabric puckers). Snug stitches also mean lower resistance — your LEDs will thank you with brighter light.

Rule 4: Loop connections tight at every pad

Where thread meets a sewable board's pad or hole, wrap three or four tight loops through the hole. This is both your mechanical connection and your electrical one — a wobbly single loop gives you flickery, intermittent contact that's maddening to debug.

Rule 5: Test before you build the whole thing

Sew one connection, then test it — a multimeter on continuity mode, or simply power up the LED. Finding a problem after two stitches takes a minute to fix. Finding it after forty takes an evening of unpicking.

Troubleshooting quick reference

LED doesn't light at all: check polarity first (LEDs only work one way), then check for a broken or loose trace.

LED flickers when the fabric moves: loose loops at a pad. Reinforce with more loops or a dab of glue over the connection.

Battery drains fast or gets warm: that's a short. Power off, inspect everywhere traces run near each other, and check every knot tail. A warm battery means find it now.

Everything worked, then stopped after washing: check whether your thread or fabric is wash-safe, and look for corrosion at connection points. (Stainless thread survives washing far better than silver-coated thread.)

Ready to stitch?

Grab a reel of stainless conductive thread, pick a simple first project — one LED, one battery holder, one switch — and follow the rules above. Once that first LED lights up from stitches you sewed yourself, you'll be hooked. For build-along projects, come join us on CMozMaker.

FAQ

Can I use conductive thread in a sewing machine? It's possible in the bobbin, but hand-sewing gives beginners far more control over trace placement — and shorts are all about placement.

How much resistance does conductive thread have? More than wire — expect a few ohms over a typical trace length. Keep traces short between power and components, and use fresh batteries for bright LEDs.

Do I need special fabric? No. Felt is ideal to learn on: it doesn't fray, holds stitches firmly, and hides beginner wobbles beautifully.
