Why Your Silver Fabric Darkens (And Why It Still Works)
A practical guide to storing, using, and washing silver-plated conductive fabrics.

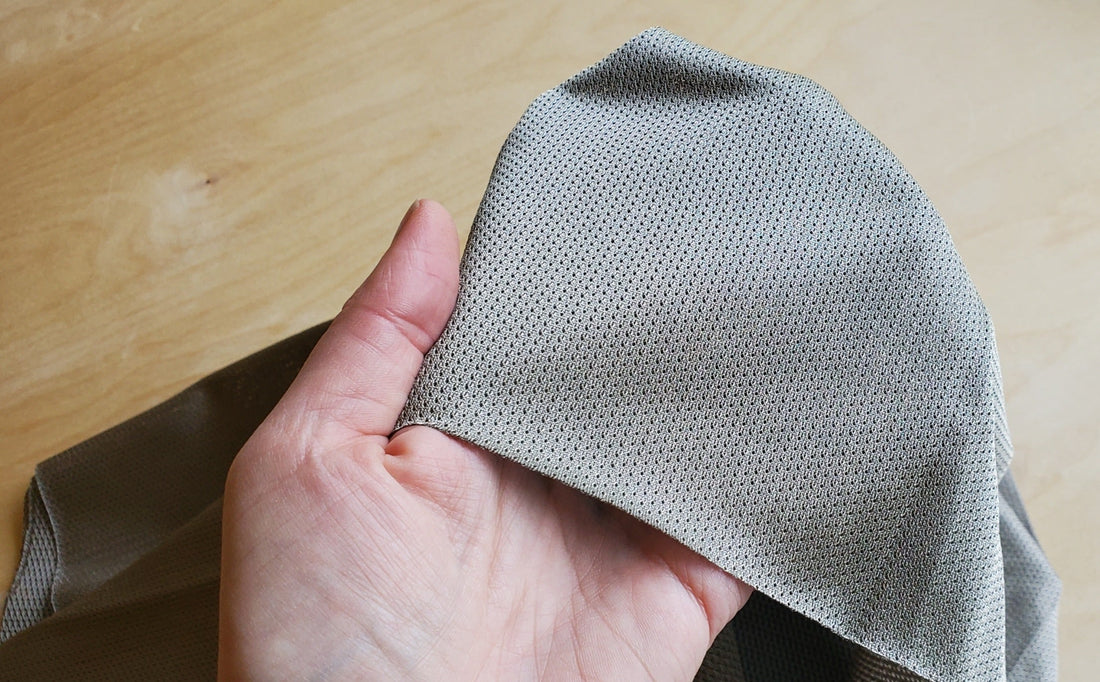

If you have bought silver-plated / silver thread conductive fabric and noticed it looking duller or darker than the day it arrived, nothing has gone wrong. Silver tarnishes. It is the same reaction that turns a silver teapot grey, and it happens to every silver-plated textile on the market, from every supplier.
The important part is what tarnish means for your project, which is usually much less than people expect. Here is what is happening, when it matters, and how to slow it down.
What tarnish actually is
Silver reacts with sulfur compounds to form silver sulfide, a thin dark film on the surface of the plating. Sulfur is everywhere in small quantities:
- Air, especially in cities, near roads, or anywhere with combustion
- Sweat and skin oils
- Wool, felt, and some animal-based materials
- Rubber bands, latex, and many foams
- Cardboard and some adhesives
- Cooking fumes and household cleaners
Humidity speeds up the reaction. Heat speeds it up. Sealed, cool, dry storage slows it dramatically.
The film is extremely thin. It sits on the surface of the plating rather than eating through it, so a tarnished fabric has essentially the same amount of silver on it as it did when it was bright.
The part that surprises people: it still conducts
Silver sulfide is a semiconductor, not an insulator. This is the key difference between silver tarnish and, say, aluminium oxide or copper corrosion.
What that means in practice is that tarnished silver fabric does not stop working. Surface resistance rises gradually as the film thickens. It does not jump to open circuit. Fabric that looks visibly darkened will usually still read within a workable range for the things most people build with it.
Applications that barely care about tarnish:
- Capacitive touch pads and soft touch sensors
- EMF and RF shielding
- Ground planes and large conductive areas
- Antistatic and grounding layers
- Pressure and stretch sensors where you are reading relative change rather than absolute resistance
- Costume, art, and display pieces where the fabric carries very little current
Applications where tarnish does matter:
- Long, narrow traces carrying meaningful current, where accumulated resistance causes voltage drop
- Snap connections, crimps, and any mechanical contact point, because the film sits exactly at the junction
- Precision sensing where you need a stable absolute resistance reading over months
- Anything where the fabric is the visible surface of a finished piece and appearance is part of the design
If you are in the first group, tarnish is a cosmetic issue. If you are in the second, it is worth designing around, and the rest of this guide will help.
How to store it
This is where you get the biggest return for the least effort. Storage is the difference between fabric that stays bright for years and fabric that dulls in a few months.
- Seal it. A zip-top bag with the air pressed out is enough. Tarnish needs airborne sulfur, so cutting off the air supply cuts off the reaction.
- Add an anti-tarnish tab. The small paper tabs sold for silver jewellery work perfectly. They absorb sulfur compounds inside the bag. One tab per bag, replaced roughly once a year.
- Keep it away from the usual suspects. No wool, no rubber bands, no latex, no foam offcuts, no cardboard sleeves in the same container.
- Cool and dry. Avoid a sunny windowsill, a garage that swings through the seasons, or a drawer next to a radiator. Silica gel packets are a cheap addition if your workspace is humid.
- Store flat or loosely rolled. Hard creases in plated fabric can crack the plating along the fold line, which is a real electrical problem rather than a cosmetic one. This matters more than tarnish for most fabrics.
How to wash it
Some silver-plated fabrics are washable and some are not, so check the product page for the specific fabric you have. Where washing is supported:
- Hand wash, cold water only
- Mild, pH-neutral detergent with no bleach, no optical brighteners, no fabric softener
- No wringing or twisting, which stresses the plating
- Press between towels to remove water, then air dry flat
- No tumble dryer, no iron directly on the surface
- Wash only when you need to, since every wash cycle takes a little plating with it
Also avoid chlorinated pool water, hand creams and sunscreens on the fabric surface, and any silver polish or abrasive cleaner. Polish is designed to remove tarnish by removing a layer of silver, which is fine on a solid silver spoon and destructive on a plated textile with a micron-thin coating.
Cleaning a tarnished contact point
If tarnish is affecting a specific connection rather than the whole piece, you rarely need to clean the whole fabric.
A gentle rub with a soft, dry cloth on the contact area is usually enough to restore a good connection. A pencil eraser used very lightly can work on a stubborn spot, but go carefully, because you are only ever a few passes away from the base fabric.
If a joint keeps degrading, the answer is usually mechanical rather than chemical. Better contact pressure fixes far more problems than better cleaning does.
Designing so tarnish never becomes your problem
The best approach is to build in a way that assumes the surface will change over time.
- Make connections early. Solder, crimp, or sew your connections while the fabric is fresh, before a film has formed at the junction.
- Protect the joint. A dab of conductive epoxy, a crimped ferrule, or a well-seated snap keeps air away from the contact surface.
- Use pressure, not proximity. A firmly clamped or stitched joint tolerates a surface film far better than a loosely touching one.
- Give yourself margin. If a trace works at exactly the resistance limit of your circuit today, it will fail eventually. Wider traces, shorter runs, and a little headroom cost nothing at the design stage.
- Seal finished pieces. For art and display work that will not be washed, a light conformal coat or a fabric layer over the conductive surface stops tarnish almost completely. Test on a scrap first, since coatings change the hand and drape of the fabric.
- Consider the alternatives where appearance is critical. Stainless steel and copper-nickel-plated fabrics do not tarnish the way silver does. They also do not match silver's conductivity, which is exactly why silver remains the first choice for most conductive textile work. It is a trade-off, not a ranking.
