Elevate your wearable projects with this crisp 1.28" 240x240 IPS LCD display—perfect for instrument panels, status dashboards, or vibrant e-textile interfaces! The GC9A01 driver delivers rich IPS colors and full 180° viewing angles that beat standard TFT screens, all packed into a tiny 35.6x38.1mm panel that disappears into tight designs.
Description:
- It is a 1.28inch 240*240 IPS LCD Display Screen. - It uses IPS color display screen and the display effect is more vivid than an ordinary TFT LCD effect.
Features:
IPS color display screen
4Pin SPI communication
Adjustable display direction
Full viewing angle display

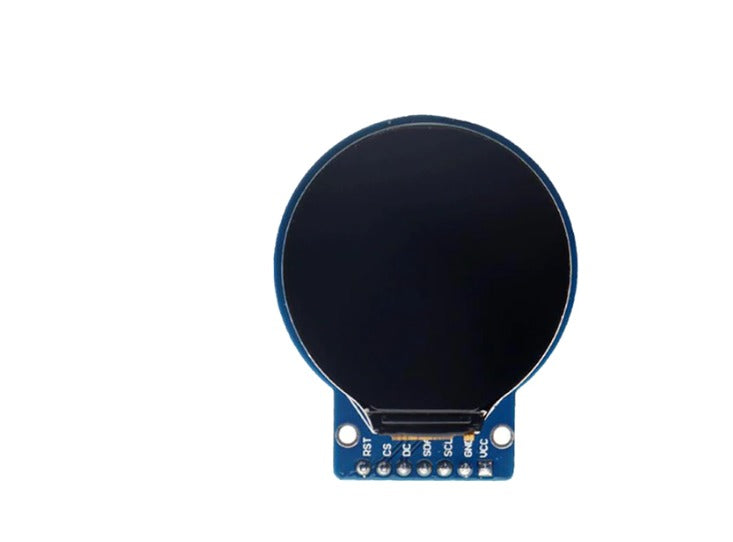

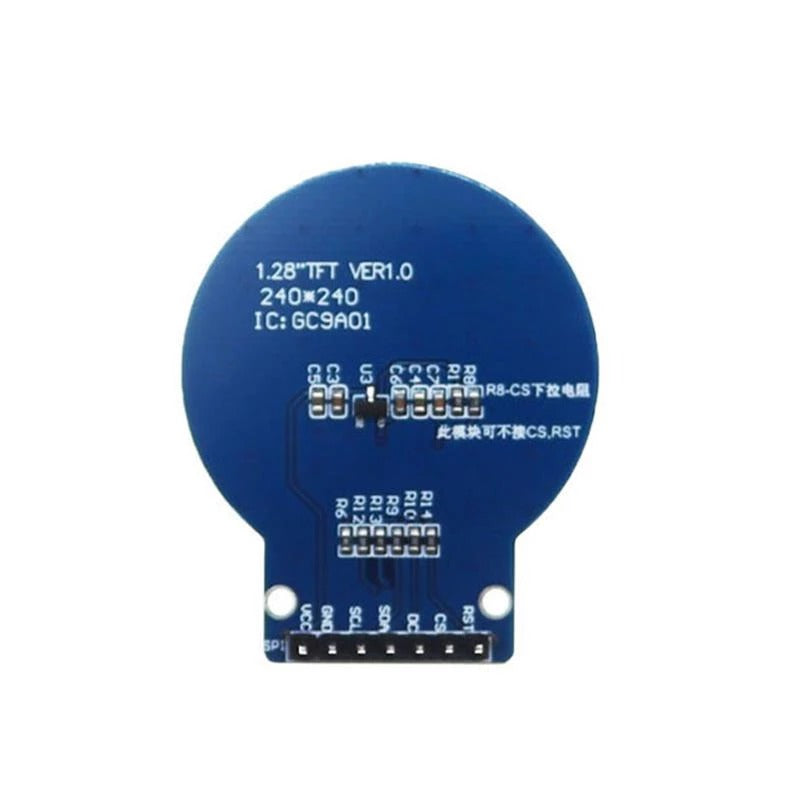

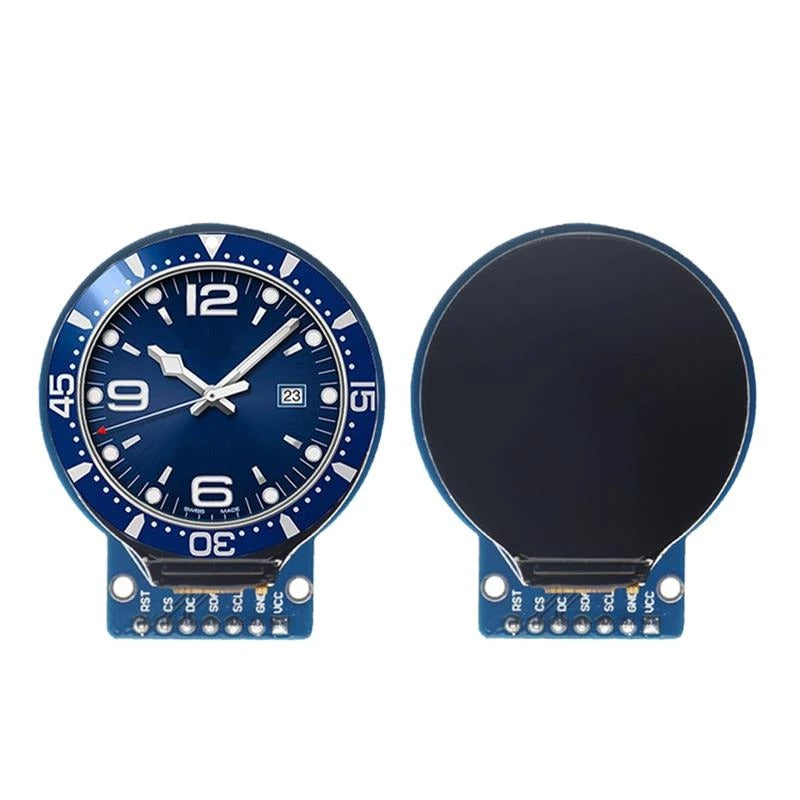

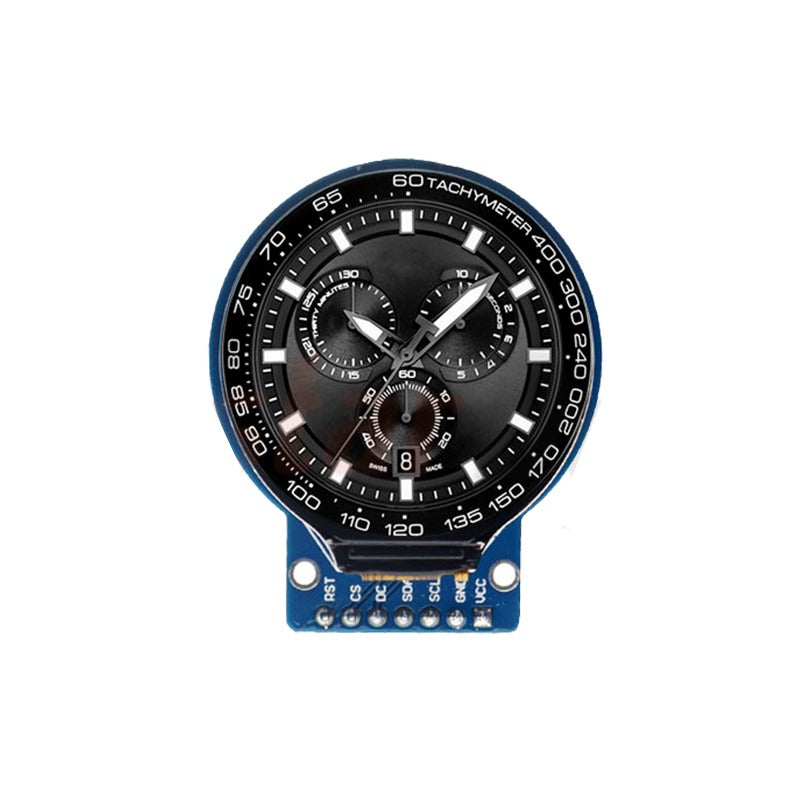

1.28inch 240*240 IPS LCD Display Screen
Material: IPS color display screen Resolution: 240*240 Driver Chip: GC9A01 Display Size: 1.28inch Display area: D32.4mm Panel size: 35.6*38.1*1.5mm Interface type: 4-Pin SPI Work voltage: 2.8V-3.3V Pins: 2.54mm 8Pin View: Full viewing angle display Working Temperature range: -20℃~70℃ Working Humidity Range: 5%-95%RH .PCB Size: 44*36*5mm
Application:
Instrument display Mobile devices Wearable display device Real-time monitoring and display equipment
Hook up via simple 4-wire SPI (2.8-3.3V, 2.54mm 8-pin) with adjustable orientation and -20°C to +70°C ruggedness—ideal for smart watches, fitness trackers, or real-time sensor readouts that demand readability from any angle. Your wearables just got a professional display upgrade!
