Tinker Tailor

20 Mini RGB LED strip

20 Mini RGB LED strip

$5.85 CAD
$5.85 CAD
Sale Sold out
Shipping calculated at checkout.

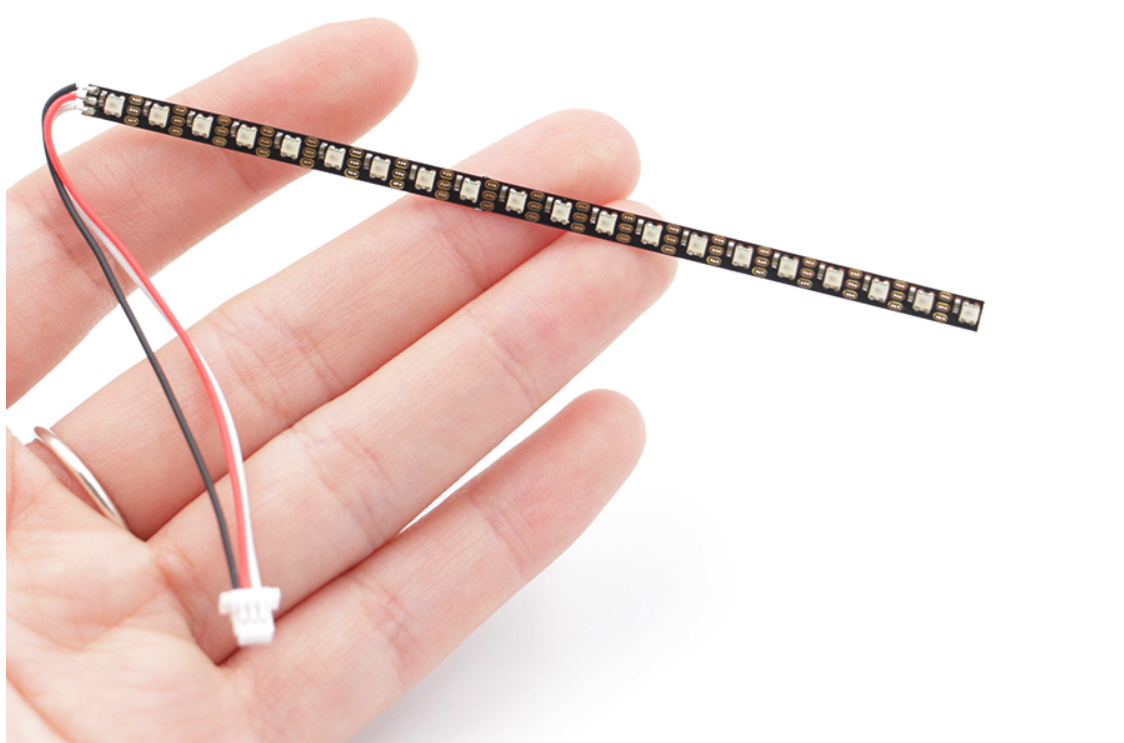

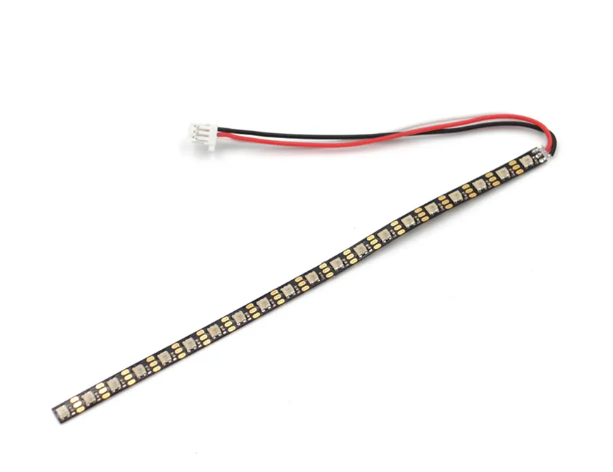

This is a very small, flexible strip with 20 individually addressable RGB LEDs (WS2812B).

They’re a lot of fun to add to wearable projects. Only 3 connections are needed — ground, power, and a data pin. Easy to program with the extensive libraries available online.

Also check out the *mini* 10 RGB Pixel Strip for an even smaller option, or the 144/meter RGB Pixel Strips for high-density builds.

Specifications

  • LEDs: 20 × WS2812B (2020 size)
  • Voltage: 3.3–5 V
  • Current: 50 mA (all 20 LEDs fully lit)
  • Size: 100 × 3.5 × 1 mm
  • Weight: 0.5 g
  • Connector: 1.0 mm 3P

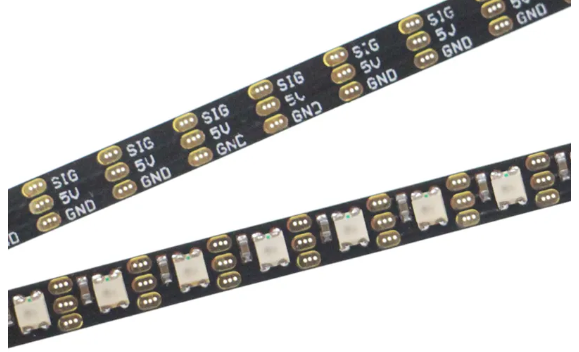

  • Cuttable along marked white lines on the back of the PCB
  • Flexible and bendable — can be glued into tight spaces

Drone Compatible

Equipped with a 1.0 mm 3P connector, this strip supports main flight controllers including F3, F4, and F7, as well as external controllers using the WS2812 protocol — great for FPV drone lighting builds.

View full details

  • We made a library to help you get up and running fast! --> Web page that writes your Glow code for you! Writes itself! Use our handy webpage that generates the code for you with the effect you want: https://cmoz.github.io/CMozESP32Board/

  • Our Git Hub Library with full details and library download. https://github.com/cmoz/CMozESP32Board/blob/main/README.md

  • More information on TinkerTailor: https://www.tinkertailor.ca/products/library-program-for-ws2812b-neopixels
