Beetle ESP32 Microcontroller [Sewable]

This little beetle can be sewn into your wearables!

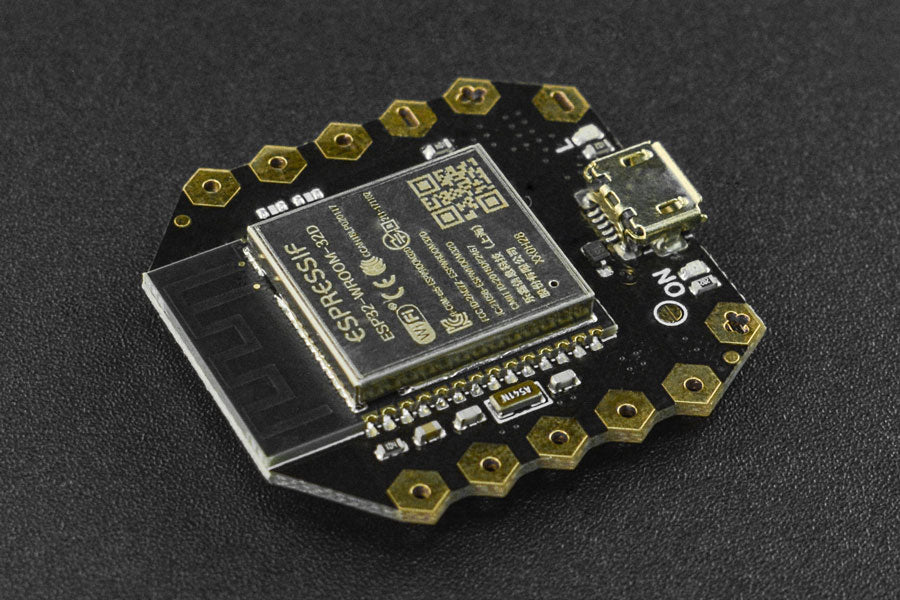

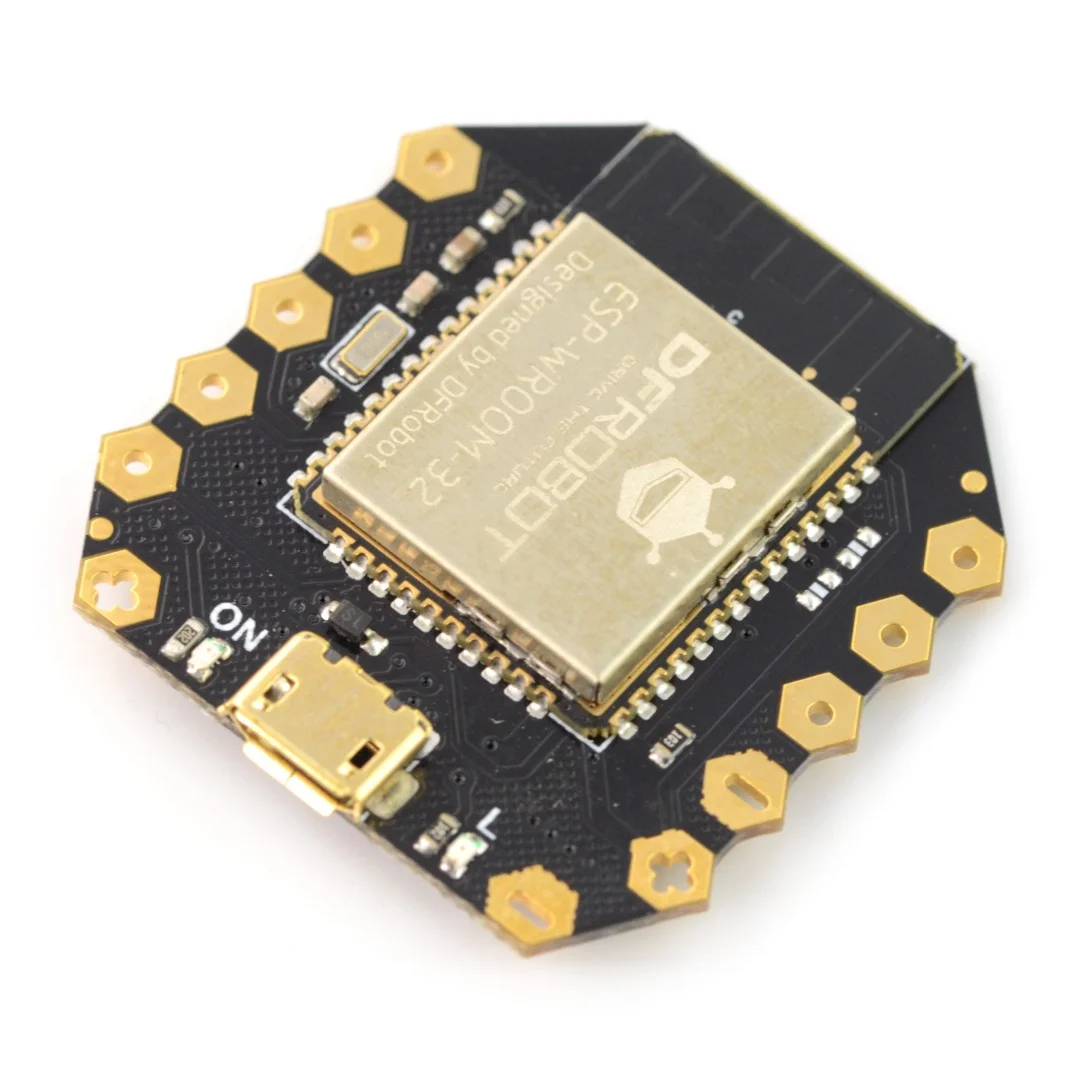

The Beetle-ESP32 is only 35 × 34 mm in size — a simplified version of the FireBeetle-ESP32, specially designed for electronic engineering fans and DIY lovers. It has large-scale gold-plated I/O ports that are easy to twist wire onto or sew directly into clothing without soldering.

Note: the holes are small, so you do need a thin needle. It can also be soldered with wires that you sew into your circuits.

Features

• Compact: 35 × 34 mm
• Gold-plated I/O ports — easy to sew or twist wire onto, no soldering required
• Honeycomb-style gold-plated power interfaces
• Integrated Wi-Fi and Bluetooth
• Program directly via Micro USB — no programmer needed

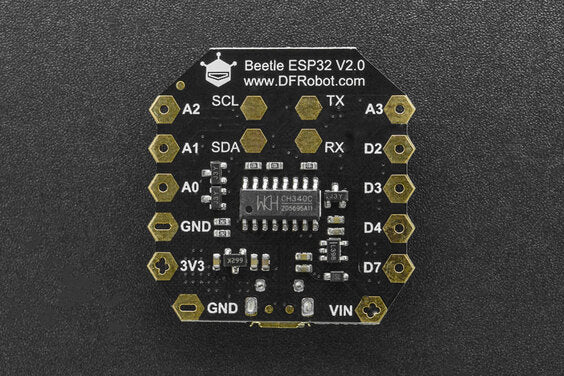

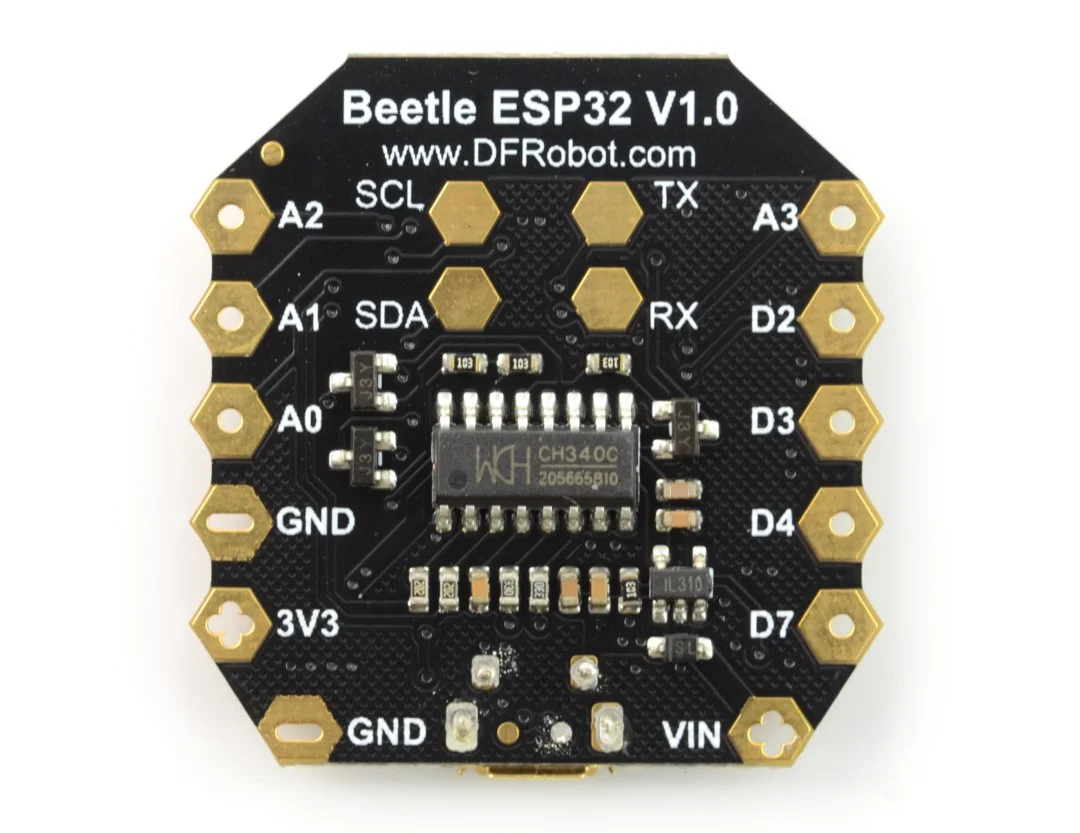

• 4 analog ports (A0–A3), 4 digital ports (D2, D3, D4, D7)
• I2C and UART interfaces

Specifications

• Processor: Tensilica LX6 dual-core, 240 MHz
• SRAM: 520 KB
• Flash: 16 Mbit
• USB supply voltage: 5.0 V
• VIN supply voltage: DC 3.5–6.5 V
• Wi-Fi: 802.11 b/g/n, 2.4–2.5 GHz
• Bluetooth: v4.2 BR/EDR/BLE
• Clock: 40 MHz crystal + 32.768 kHz crystal

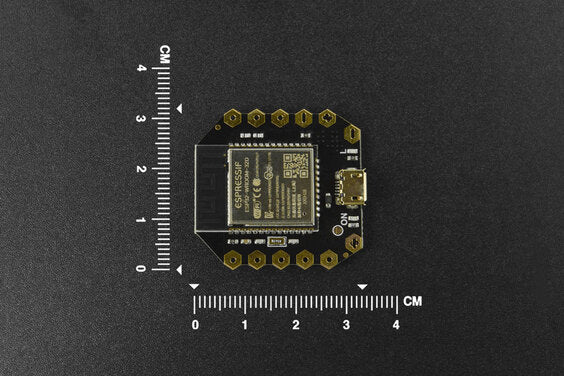

• Dimensions: 35 × 34 mm
