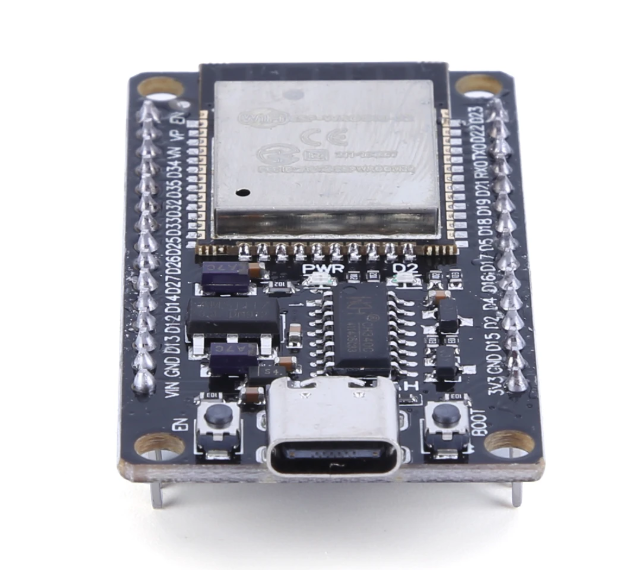

  • An ESP32 development board with a built-in USB-C connector, featuring a black printed circuit board, silver metal components, and a white chip carrier, photographed on a white background.

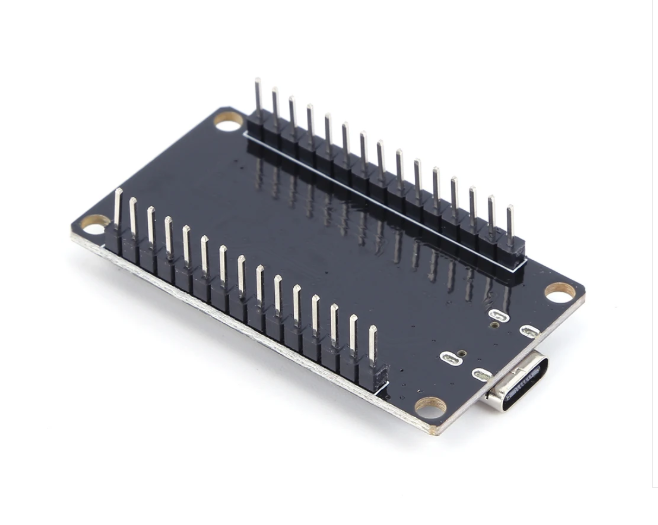

  • A black electronic breadboard module with multiple rows of silver pins and a USB-C port, shown on a clean white background.

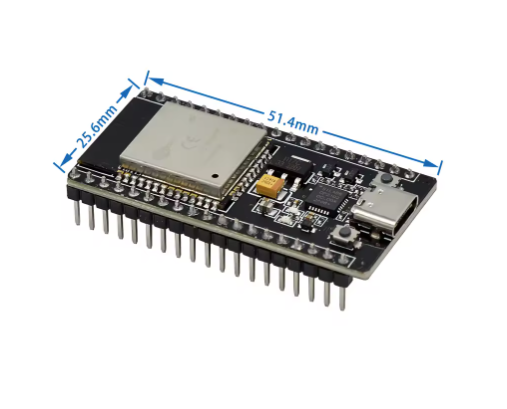

  • A black PCB module with a large silver metal shield on top, many pin leads along the bottom edge, a USB-C port, and blue dimension arrows labeling 51.4mm length and 25.

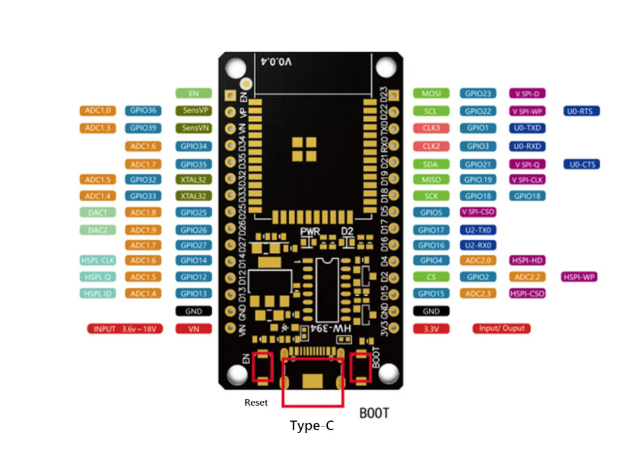

  • AESP32-USBc microcontroller board centered on a white background, surrounded by multicolored pin labels and red highlighted areas around the reset and type-c connectors.
1 6
New Item

Tinker Tailor

ESP32 Development Board 30-Pin (USB-C)

ESP32 Development Board 30-Pin (USB-C)

$14.95 CAD
$14.95 CAD
Sale Sold out
Shipping calculated at checkout.

The classic ESP32 dev board, now with USB-C. The same beginner-friendly WROOM-32 board used across countless tutorials — dual-core 240MHz processor, WiFi and Bluetooth built in — in the compact 30-pin layout that leaves a row of breadboard space free on each side. USB-C means the cable you already have finally fits.

Highlights

  • ESP32-WROOM-32 module: dual-core 240MHz, WiFi 2.4GHz + Bluetooth
  • USB-C connector for power and programming
  • 30-pin layout — narrower than the 38-pin, easier to breadboard
  • BOOT and EN buttons on board
  • Works with PlatformIO, Arduino IDE, ESP-IDF, and MicroPython
  • Great for IoT, wearables prototyping, displays, sensors, and LED projects

Details

  1. Integrated SPI Flash: The module has an integrated SPI flash that allows for fast and reliable data storage, making it more efficient for various applications.
  2. Wide Range of Wireless Communication: With built-in WiFi support, the module can connect to the internet directly via a router, allowing for efficient wireless communication and data transfer over long distances.
  3. Wide Application Potential: The module is widely used in applications such as WiFi solutions, WiFi mini cameras, mesh networking, smart homes, and mobile IoT, providing a solution for various IoT and smart device development projects.

Specifications

  • Working voltage: TYPE-C 5V
  • SPI FLASH: Default 32MBIT
  • Serial port speed: 115200BPS
  • Frequency range: 2412-2484MHZ
  • Bluetooth-compatible protocol: Bluetooth-compatible 4.2BR/EDR and BLE standards
  • WIFI protocol: 802.11B/G/N
  • Antenna form: onboard PCB antenna, gain 2DB
  • Supported interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC
  • Product size: about 54 * 28 * 10mm/2.12 * 1.10 * 0.39inch
  • Header pins come pre-soldered

Depending on the batch, the USB-serial chip is CH340 or CP2102 — both use free, widely available drivers if your computer doesn't detect the board automatically.

This board is also part of some of our video kits! https://www.tinkertailor.ca/collections/build-along-video-kits

View full details

Downloads for this Product (if available)

📄 Why choose an ESP32? (companion pdf)

  • Good to know

    You'll need a USB-C data cable to program the board. Many USB-C cables are charge-only and will not work — if you're not sure, grab our USB-C data cable.

  • WiFi and Bluetooth-compatible Features

    The 32 module is a versatile WiFi+BT+BLE MCU module that supports both low-power Bluetooth-compatible and WiFi connectivity, providing wide application potential.

  • Easy Signal Detection

    The module's Bluetooth-compatible capabilities allow users to detect signals easily and conveniently via their mobile devices, making it ideal for signal detection applications.
