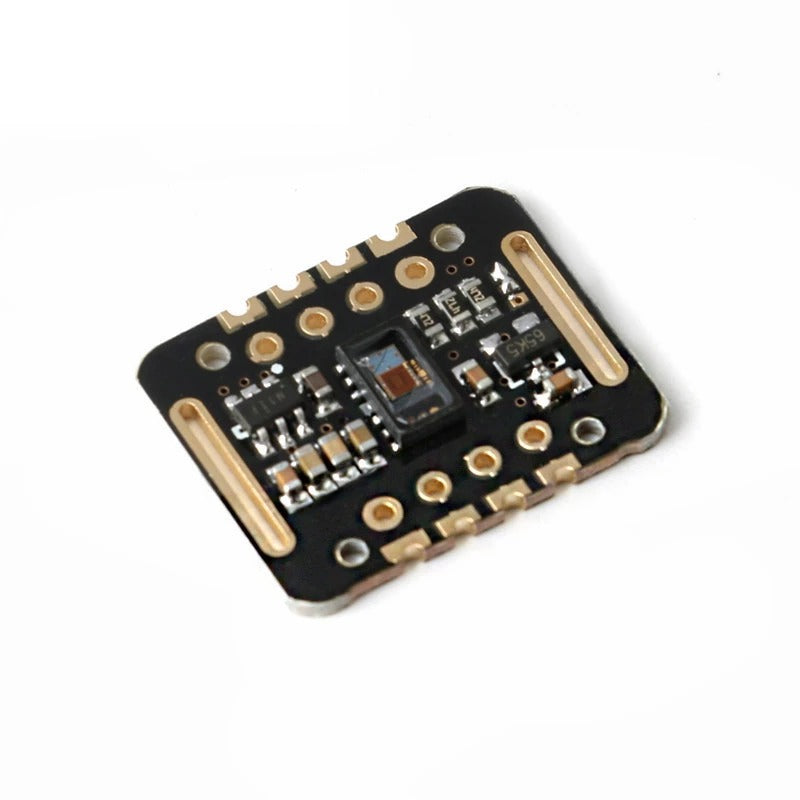

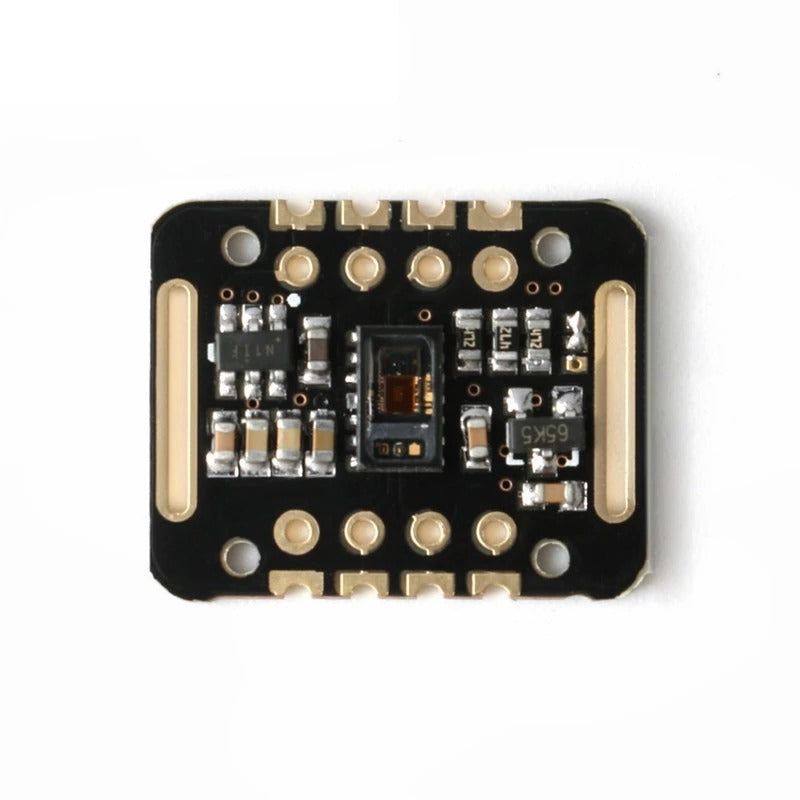

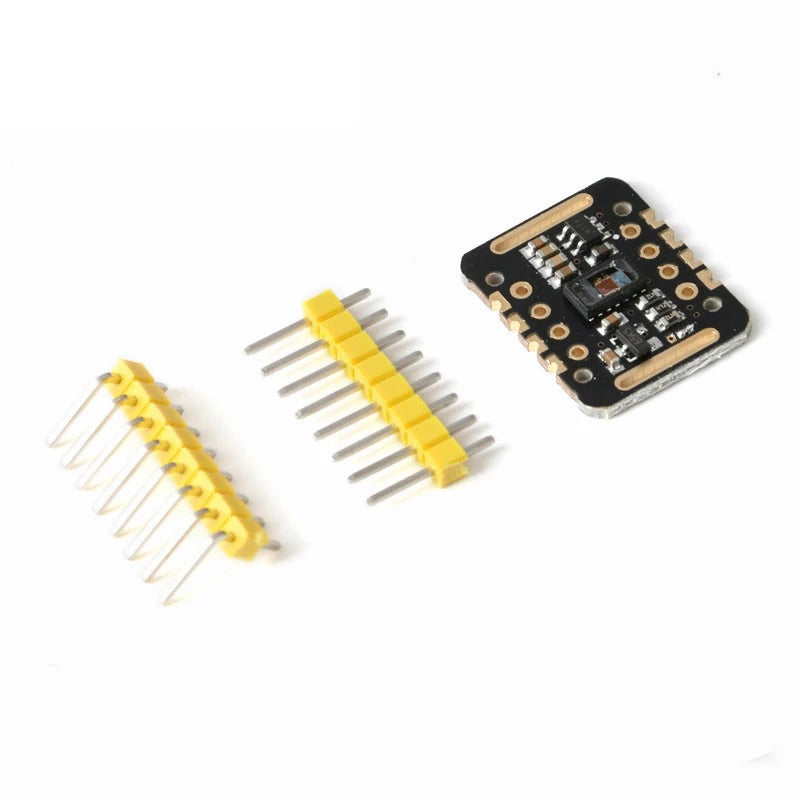

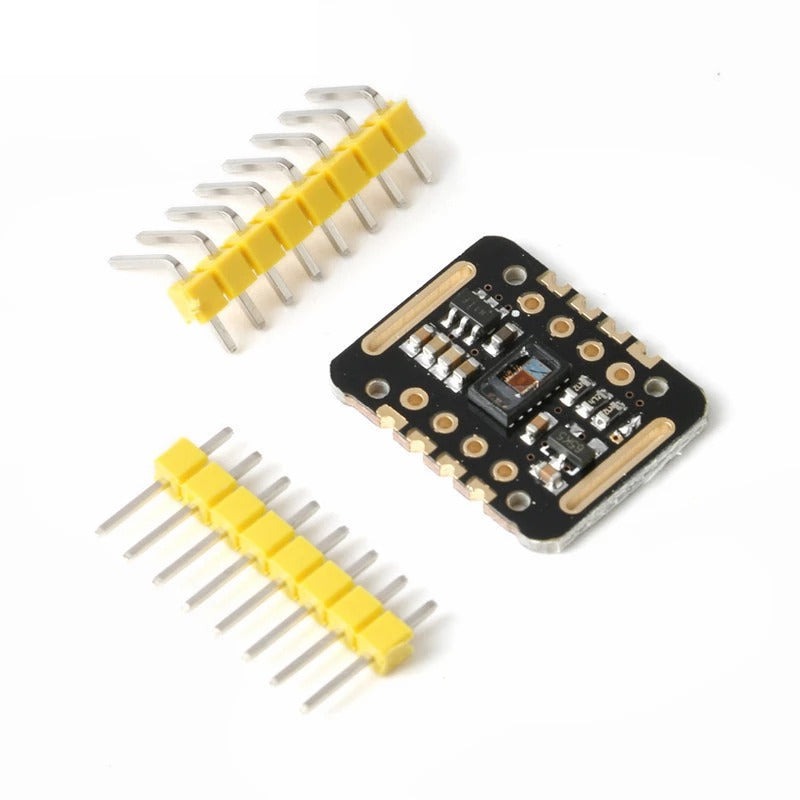

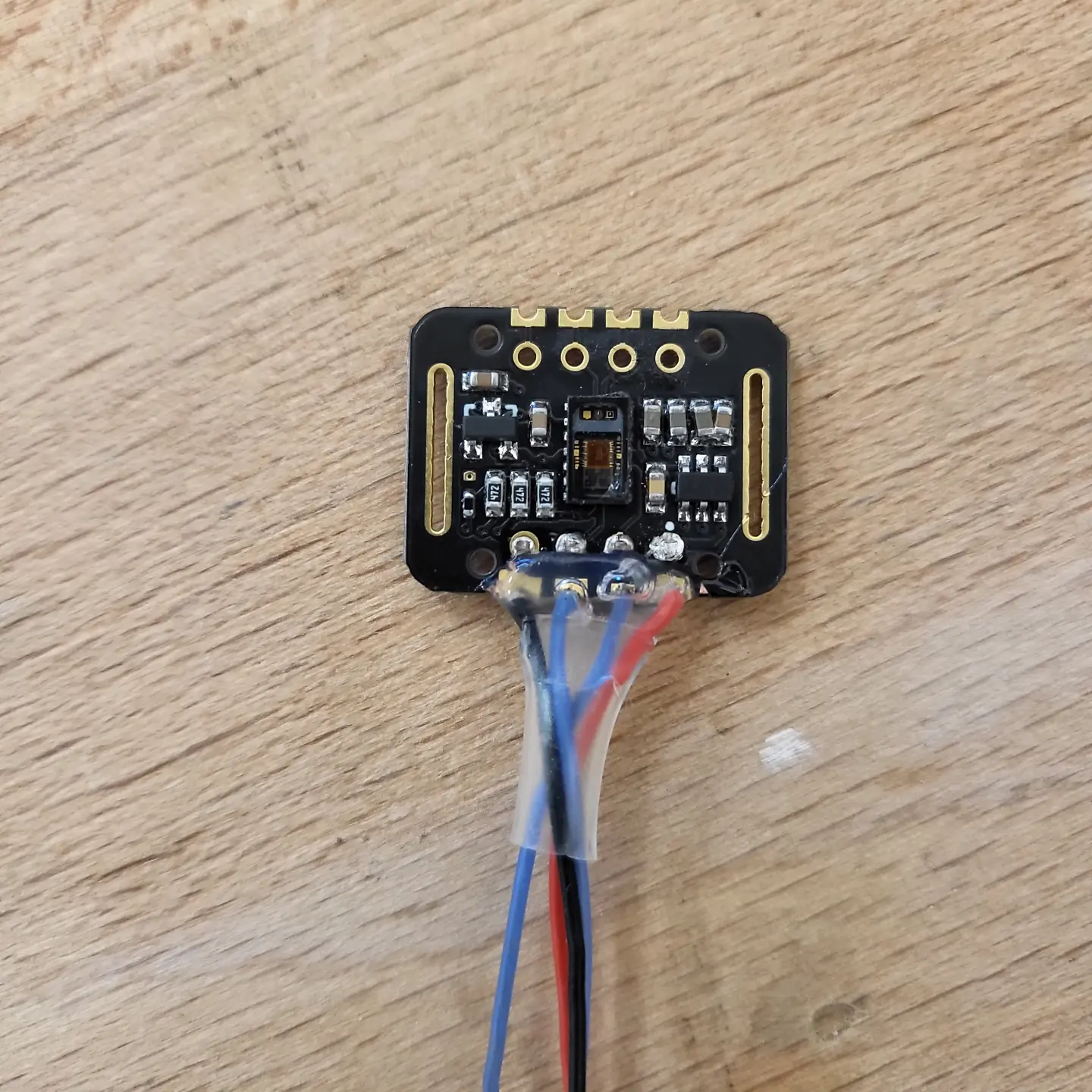

The MAX30102 is an integrated pulse oximeter and heart rate monitor biosensor. It uses red and infrared LEDs with a photodetector to measure heart rate and blood oxygen saturation (SpO2) via light reflection (PPG). Wear it on a finger, earlobe, or wrist. Communicates over I2C — easy to connect to Arduino, ESP32, or any microcontroller.
Used in Samsung Galaxy S series phones for its excellent performance and reliable glass-covered sensor that suppresses ambient light interference. Ultra-low standby power — can be shut down via software with near-zero current draw.
Specifications
LED peak wavelengths: 660 nm (red) / 880 nm (IR)
LED supply voltage: 3.3–5 V
Signal type: PPG (light reflection)
Interface: I2C
Communication voltage: 1.8 V / 3.3 V / 5 V (selectable)

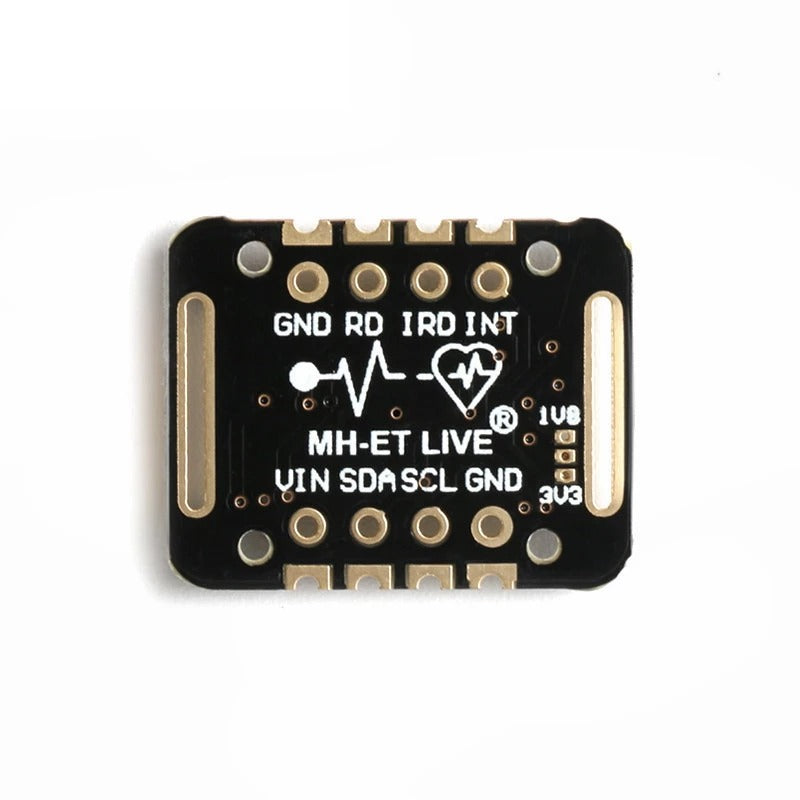

Pinout
VIN — Power input, 1.8–5 V
SCL — I2C clock
SDA — I2C data
INT — Interrupt pin
GND — Ground
RD / IRD — LED ground terminals (generally not connected)
