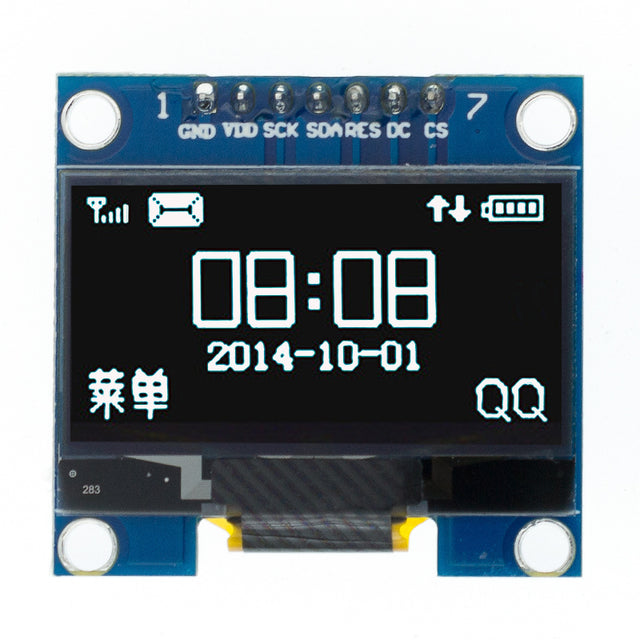

A lovely 1.3" OLED to add a display to your wearable.
Level up your wearables with this larger 1.3" (35x33mm) SH1106 OLED display—crisp 128x64 resolution, 160° viewing angle, and ultra-low 0.08W power over SPI! Rugged industrial-grade (-30°C to +70°C) and 3-5V ready, it delivers TFT-beating contrast without backlight bulk. Perfect for bigger dashboards, data readouts, or e-textile interfaces that demand visibility from any angle!

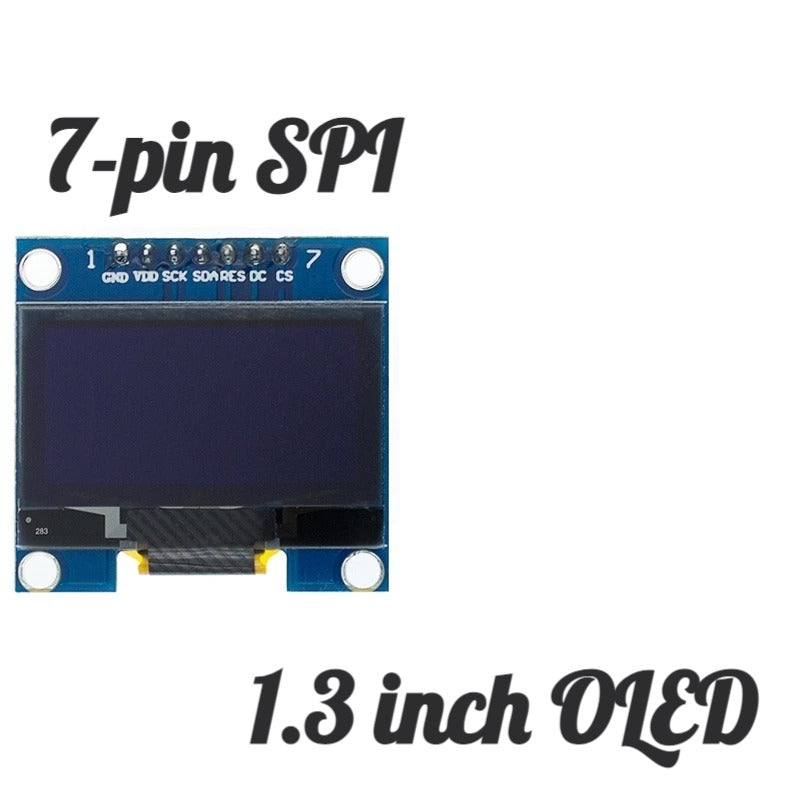

This uses the SPI protocol to connect to your microcontroller.
1. resolution: 128X64
2. super wide viewing angle: more than 160 ° (maximum viewing angle display a screen)
3. ultra-low power consumption: normal display 0.08W (far below the TFT display)
4. wide supply range: DC 3V-5V (without any changes, directly compatible with common 3. 3V and 5V power supply system)
5. industrial grade: Operating temperature range -30 degree~ 70 degree

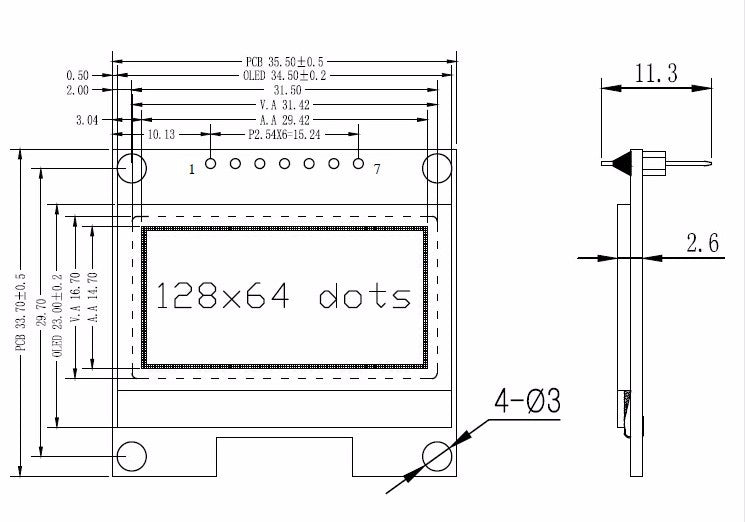

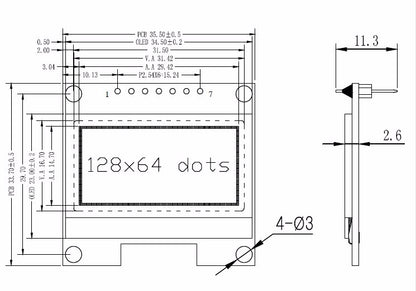

6. the ultra-small size: (length) 35.4MM * (W) 33.5MM * (thickness) 4.3MM
7. compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)
8. OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)

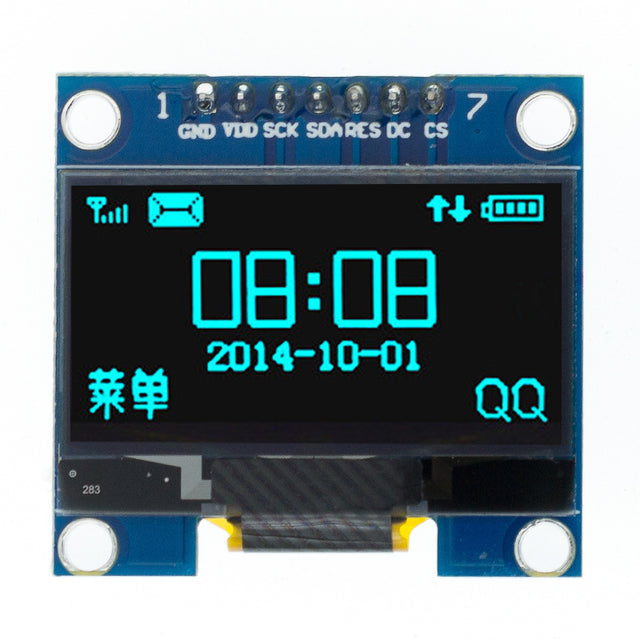

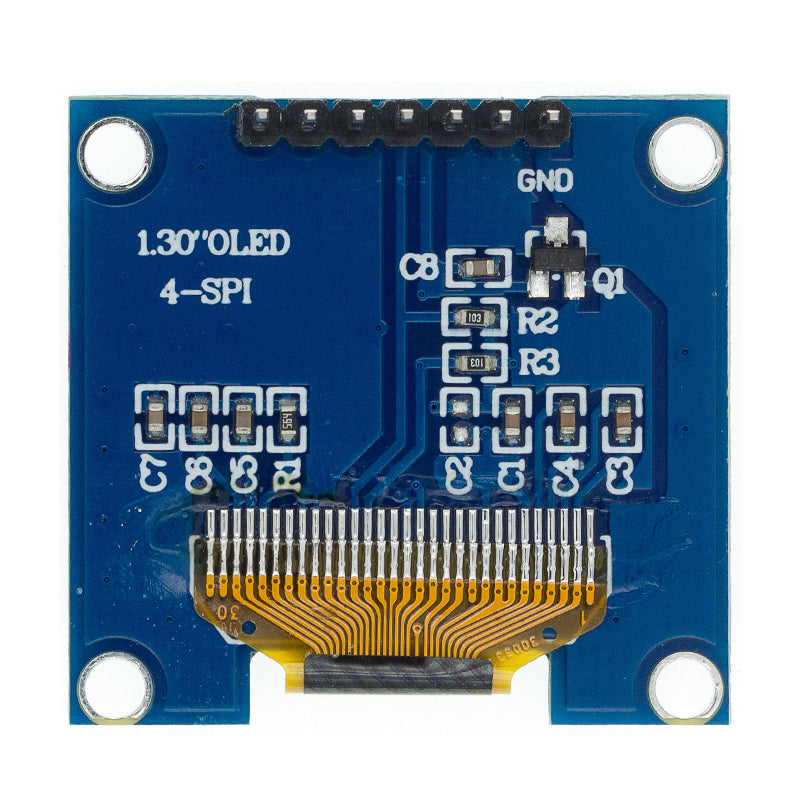

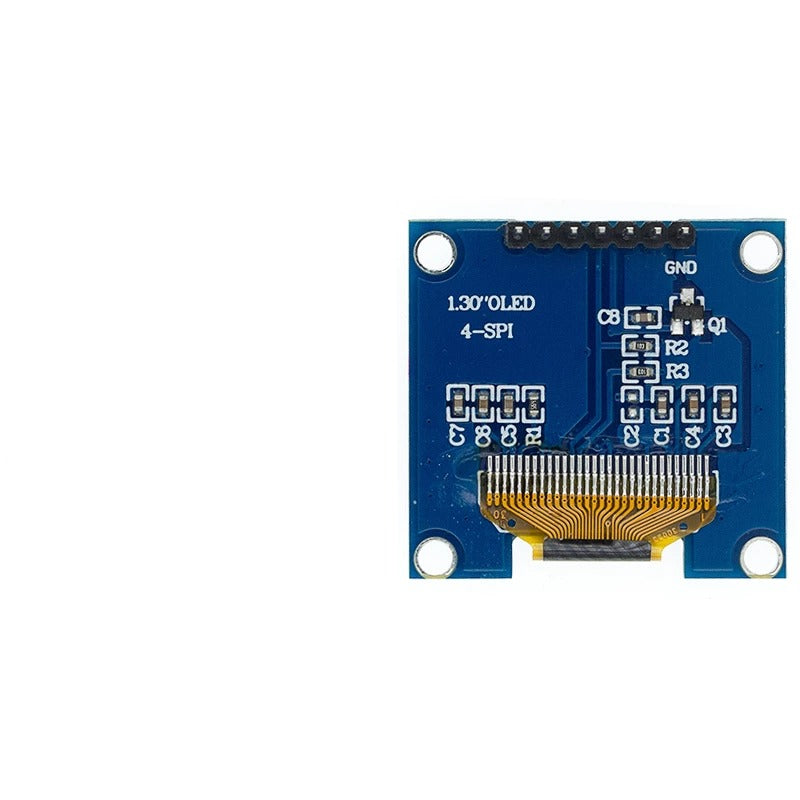

The OLED module has a blue circuit board.
It works without a backlight, that is, in a dark environment OLED display is higher compared to that of LCD display you will like the miniature for its crispness.
This blue PCB powerhouse runs cooler, brighter, and thinner than LCDs—ideal for heart rate graphs, navigation displays, or animated wearables that need to be seen in any light. Hook up SPI and start coding; your projects just got a pro-sized display upgrade!
