Shieldex

Premium Shieldex® Bonn

Premium Shieldex® Bonn

Regular price $4.95 CAD
Regular price Sale price $4.95 CAD
Sale Sold out
Shipping calculated at checkout.
Size
Quantity

If your project needs to move with the body, this is the fabric for you. Shieldex® Bonn is my go-to recommendation when stretch and conductivity both matter — it’s soft, skin-safe, and performs beautifully in wearable builds.

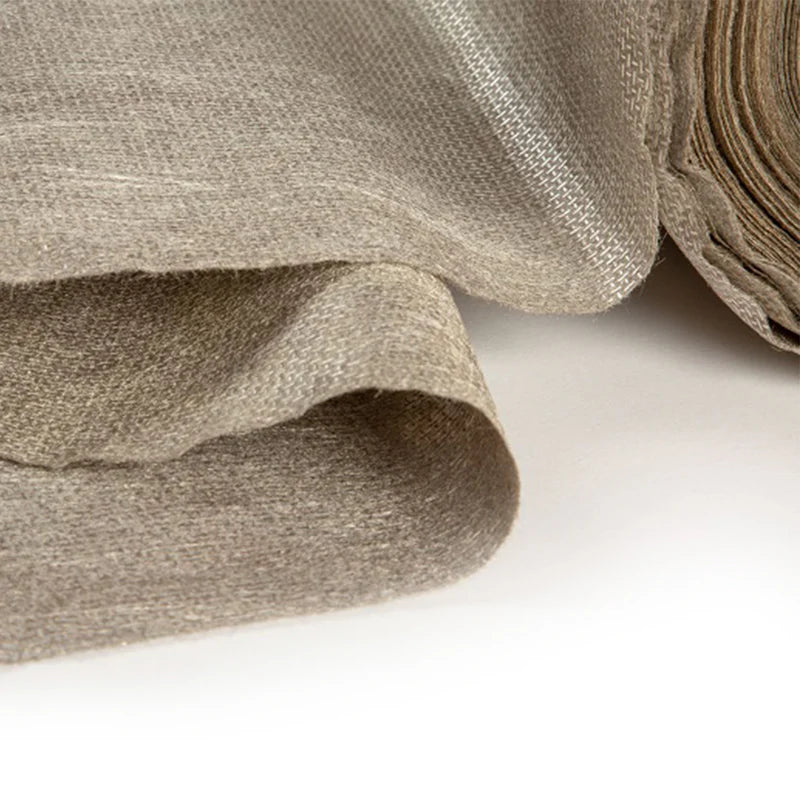

Shieldex® Bonn is a highly stretchable silver-plated polyamide knit fabric designed for dynamic wearable electronics and e-textile applications. This premium conductive textile combines exceptional electrical conductivity with superior elasticity, making it ideal for projects that require both flexibility and reliable electrical performance.

Unlike rigid conductive fabrics, Shieldex® Bonn features a stretchable knit construction with a durable silver-plated coating. This unique combination allows the fabric to stretch and move with the body while maintaining consistent electrical conductivity — perfect for wearable sensors, smart garments, and flexible circuits that need to conform to curved surfaces or moving joints.

Also available in our Shieldex® range: Shieldex® Balingen and Shieldex® Bern.

Key Features

  • Highly stretchable knit construction (bi-directional stretch)
  • Excellent electrical conductivity with low surface resistance
  • Silver-plated polyamide for durability and performance
  • Maintains conductivity even when stretched
  • Soft, comfortable, and skin-safe
  • Washable and long-lasting
  • Can be sewn, cut, and integrated into garments

Common Applications

  • Wearable heart rate and ECG electrodes
  • Stretch sensor bands and straps
  • Smart athletic wear and fitness trackers
  • Flexible touch-sensitive interfaces
  • Body-conforming EMI/EMF shielding
  • Rehabilitation and medical monitoring devices
  • Interactive dance and performance costumes
  • Flexible circuit pathways in e-textiles

Technical Details

  • Material: Silver-plated polyamide knit
  • Surface resistivity: <1 Ω/sq (typical)
  • Stretchability: Bi-directional stretch
  • Washable: Up to 30°C
  • Maintains conductivity under strain
  • Comfortable against skin
View full details

Downloads for this Product (if available)


Videos

Additional Information

This is a really lovely fabric with a pattern on it, that has a slight thickness so it feels durable. There are many uses for this fabric!
