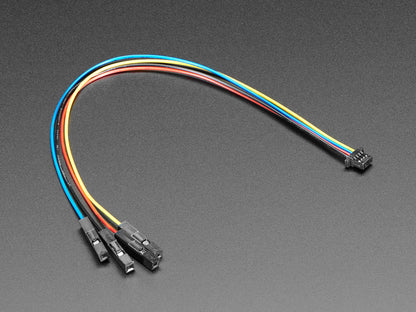

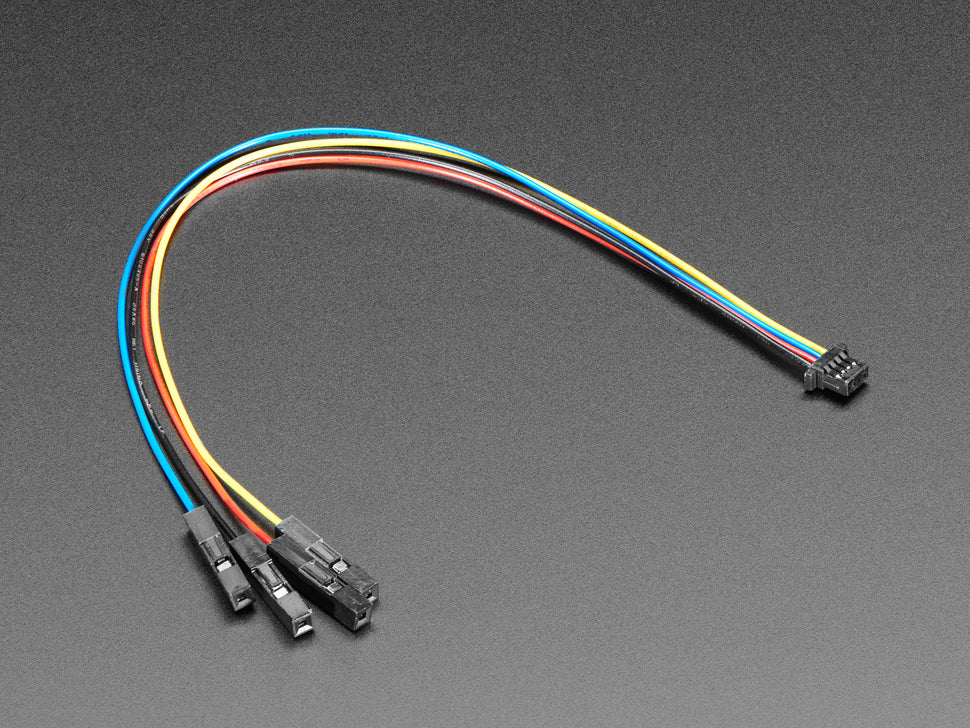

STEMMA QT / Qwiic JST SH 4-pin Cable with Premium Female Sockets

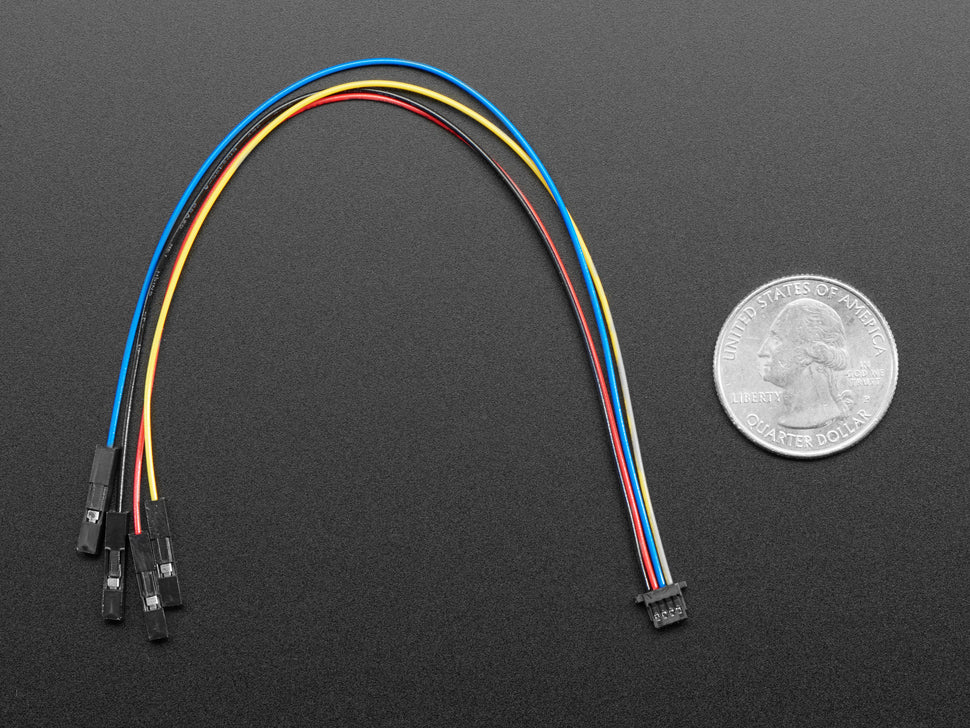

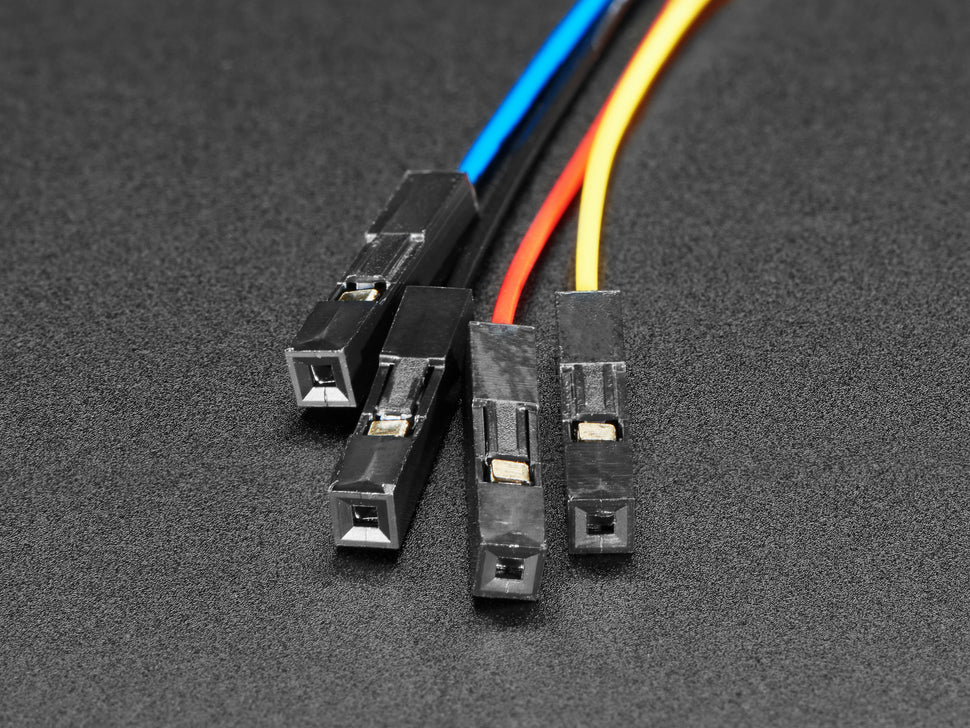

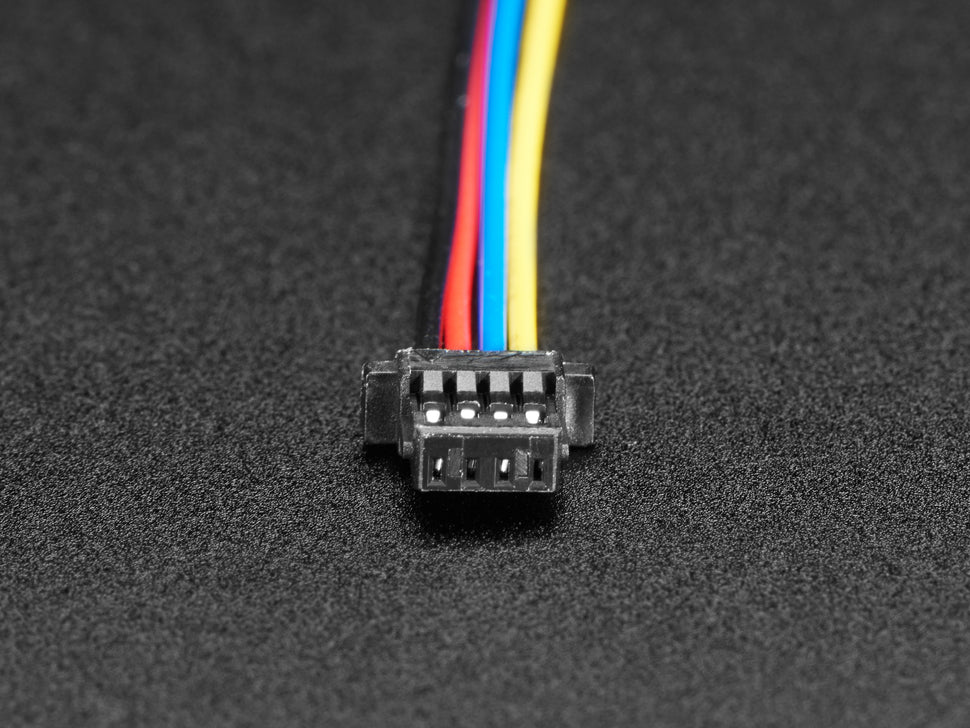

This 4-wire cable is a little over 150 mm / 6" long and fitted with a JST SH female 4-pin connector on one end and premium female headers on the other. Compared with the chunkier JST PH, these are 1 mm pitch instead of 2 mm, but still have a nice latching feel while being easy to insert and remove.

Use it with Qwiic or STEMMA QT boards to easily connect sensors and drivers to boards with standard 0.1" pin headers.

• Red — 3.3 V power
• Black — Ground
• Blue — I2C SDA data
• Yellow — I2C SCL clock

For more information about JST SH connectors, visit the JST website.
