Color Sensor TCS34725: Black version

Your projects can now see color — and this sensor is built to be sewn right in.

The TCS34725 color sensor (black PCB) features a double sew loop design, making it easy to stitch directly into fabric, soft circuits, and wearable builds. It detects RGB and clear light with an integrated IR blocking filter for accurate, human-eye-like color readings — even through darkened glass or fabric.

Specs

• Sensor IC: TCS34725
• Channels: RGB + Clear light
• IR blocking filter: Yes (on-chip)
• Dynamic range: 3,800,000:1
• Interface: I2C
• Voltage: 3.3V / 5V
• Adjustable integration time and gain

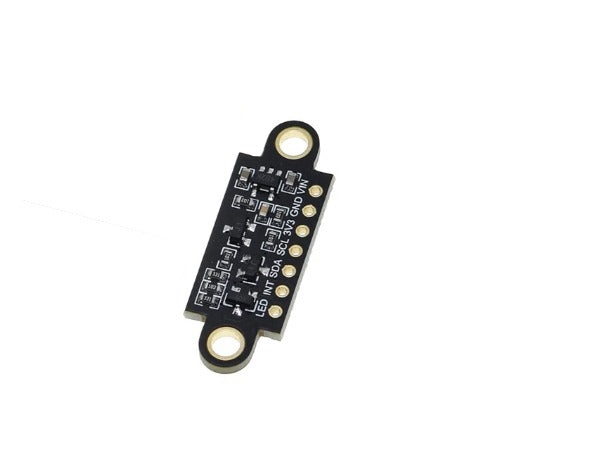

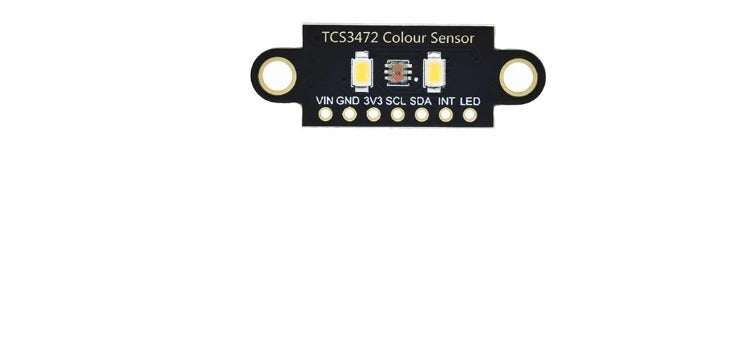

Pin Definitions

• VIN — 3.3V / 5V+
• GND — Ground
• 3V3 — 3.3V output
• SCL — I2C Clock
• SDA — I2C Data
• INT — Interrupt output
• LED — Onboard LED

Related products

• Prefer a different look? Check out the TCS34725 Color Sensor – Purple version.
• New to wearable electronics? The Busy New Bee Starter Kit is a great place to begin.

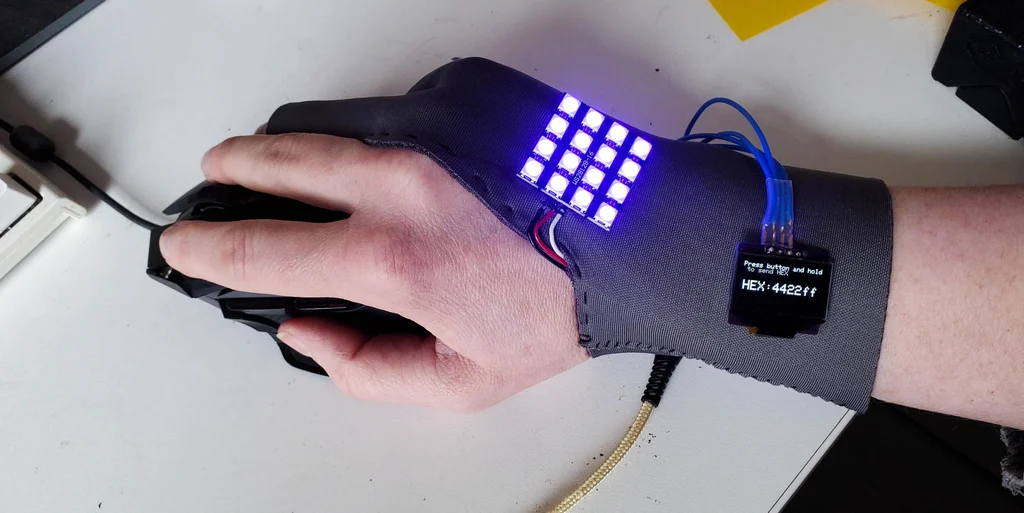

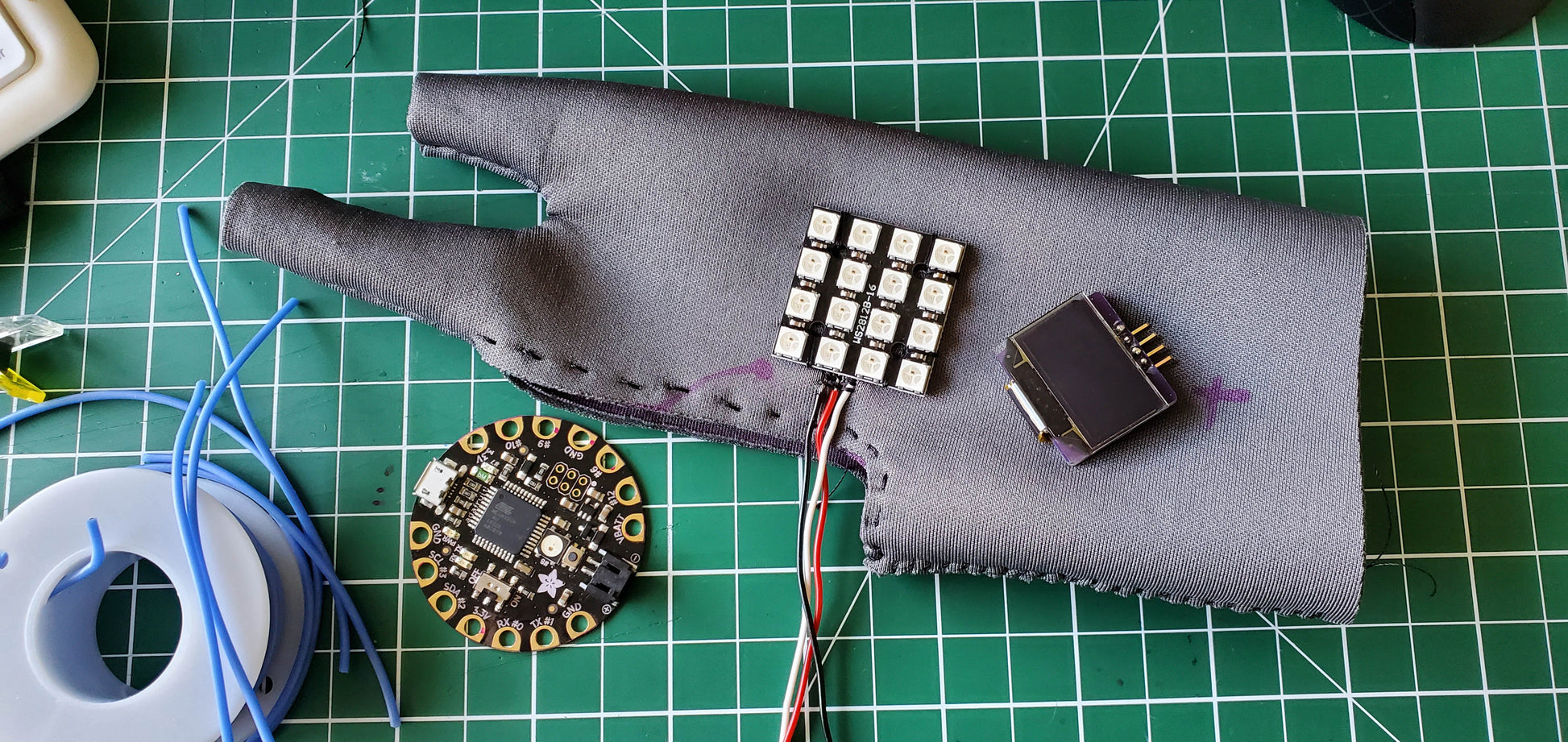

I've used this sensor in several projects — check out my tutorials on Instructables to see it in action!
