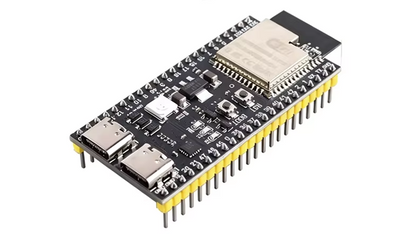

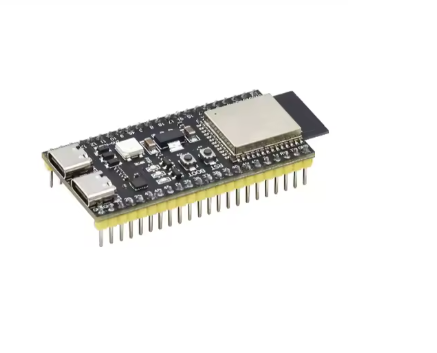

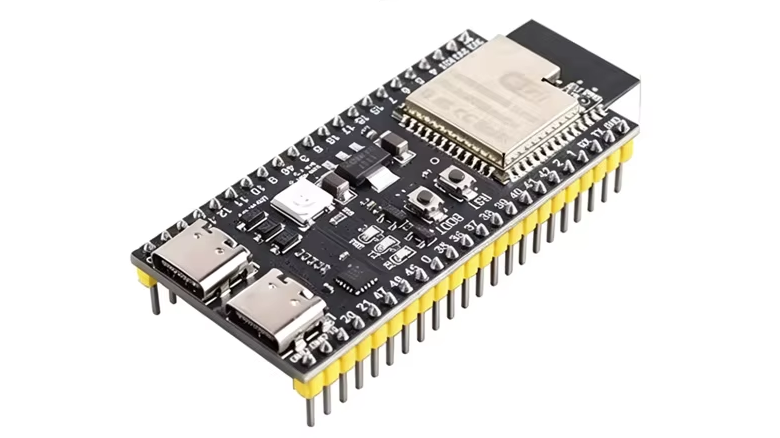

ESP32-S3 Dev Board N16R8 (Pre-soldered Headers, Dual USB-C)

ESP32-S3 Dev Board N16R8 (Pre-soldered Headers, Dual USB-C)

$19.95 CAD
$19.95 CAD
Sale Sold out
Shipping calculated at checkout.

ESP32-S3 development board with 16MB flash and 8MB octal PSRAM, supplied with header pins already soldered so it is ready for a breadboard straight out of the bag. Dual-core 240MHz processor, 2.4GHz Wi-Fi and Bluetooth 5 (LE), and plenty of memory for displays, camera, audio and wearable projects.

Make something you didn't plan to. The Maker-O-Matic 3000 will get you started.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

Specs

  • Module: ESP32-S3-WROOM-1 N16R8
  • CPU: Xtensa 32-bit LX7 dual-core, up to 240MHz
  • Wireless: 2.4GHz Wi-Fi and Bluetooth 5 (LE)
  • Memory: 512KB SRAM, 384KB ROM, 16MB flash, 8MB PSRAM (octal)
  • USB: dual USB-C (CH343 USB-serial and native USB)
  • Size: approx. 57.15 x 25.40mm
  • Headers: pre-soldered

Good to know

Octal PSRAM uses GPIO 35, 36 and 37 internally, so those pins are not available on this board.

PlatformIO

board = esp32-s3-devkitc-1
board_build.arduino.memory_type = qio_opi
board_upload.flash_size = 16MB
board_build.partitions = default_16MB.csv
build_flags = -DBOARD_HAS_PSRAM
