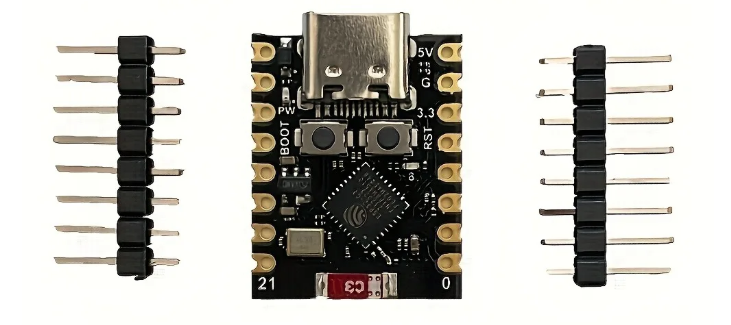

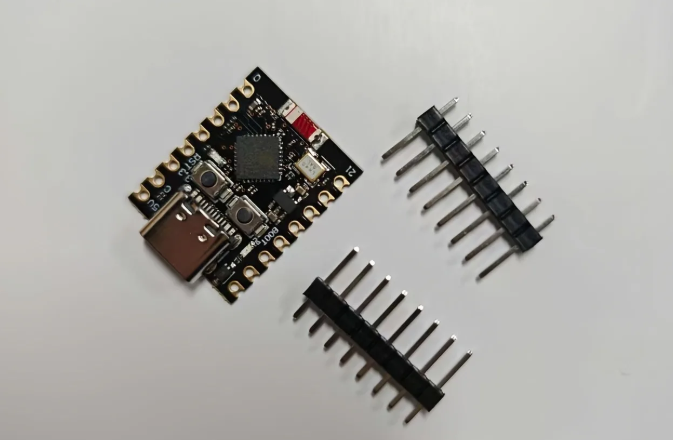

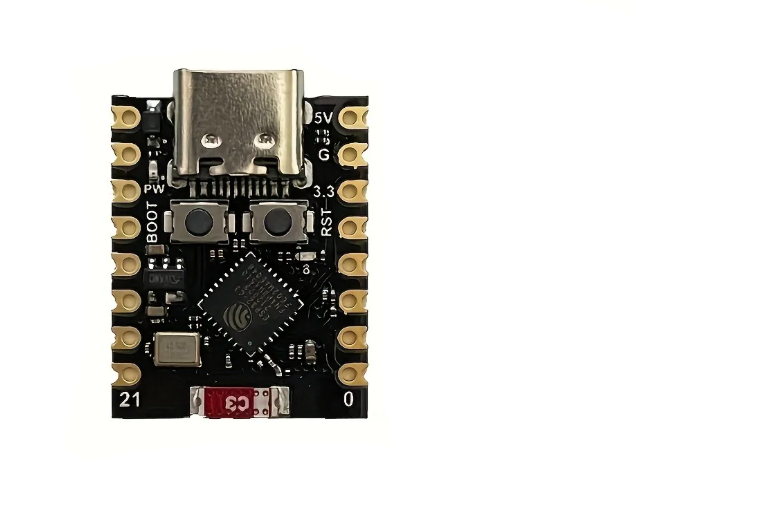

Black ESP32 C3 SuperMini Development Board

Black ESP32 C3 SuperMini Development Board

Regular price $9.75 CAD
Regular price Sale price $9.75 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity

Not sure which board? Compare every board by chip, touch pins, size and wireless.

Microcontroller Guide →
> PlatformIO setup (platformio.ini)

Paste this into your platformio.ini to get this board running.

[env:esp32-c3-supermini]
platform = espressif32
board = esp32-c3-devkitm-1
framework = arduino
monitor_speed = 115200
build_flags =
    -D ARDUINO_USB_MODE=1
    -D ARDUINO_USB_CDC_ON_BOOT=1
  • Keep the two build_flags lines: without them the Serial Monitor stays blank.
  • Upload won't start? Hold BOOT, tap RESET, let go of BOOT, then upload again.
  • The blue LED is on GPIO8 and lights when the pin is LOW.
  • Arduino IDE: choose ESP32C3 Dev Module and set Tools > USB CDC On Boot to Enabled.
  • The C3 has no touch pins; add an MPR121 for conductive fabric buttons.

Shipping in Canada from $3.50 for small parcels up to 150 g, usually arriving in about 4 business days. Canadian-owned and packed by hand in Nova Scotia, so there's no cross-border duty or brokerage. Shipping rates

This is one of my always-keep-one-in-the-drawer boards. It's barely bigger than a postage stamp, yet it has WiFi and Bluetooth 5, so it's ideal when a wearable needs to talk to a phone or the internet but there's no room for a full-size dev board. It hides easily inside a cuff, a hat band or a handbag lining.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

Also available in pink, and you can see the larger ESP32-S3 SuperMini if you need more pins or native USB features.

Good to know before you buy

  • Single-core RISC-V at 160MHz. Plenty for sensors, LEDs and WiFi or Bluetooth projects, but not for heavy graphics.

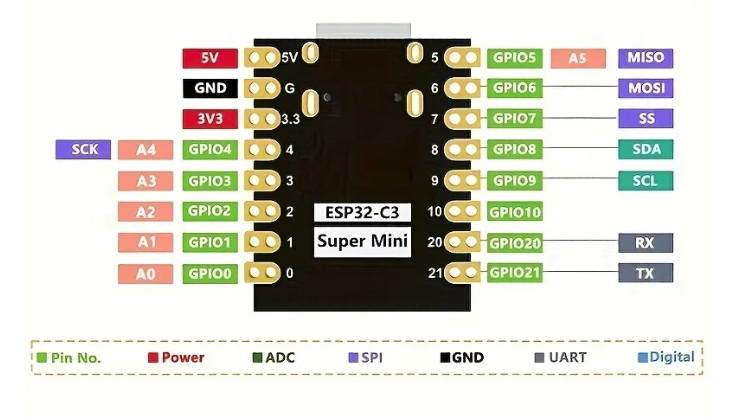

  • 11 GPIO is enough for most wearables, but plan your pins before you start a bigger build.
  • The onboard blue LED is on GPIO8, which is handy for a first blink test.
  • Uses USB-C for power and programming.

PlatformIO setup

Add this to your platformio.ini so Serial Monitor works over the USB-C port:

[env:esp32-c3-supermini]
platform = espressif32
board = esp32-c3-devkitm-1
framework = arduino
monitor_speed = 115200
build_flags =
  -DARDUINO_USB_MODE=1
  -DARDUINO_USB_CDC_ON_BOOT=1

If the board doesn't show up for uploading, hold BOOT, tap RESET, then release BOOT and try again.

Specs

  • ESP32-C3, 32-bit RISC-V, up to 160MHz
  • 400KB SRAM, 384KB ROM, 4MB flash
  • WiFi 802.11 b/g/n (2.4GHz) and Bluetooth 5.0 (LE)
  • 11 GPIO, all PWM capable
  • 4 analog inputs
  • 2 UART, 1 I2C, 1 SPI
  • Deep sleep around 43µA, good for battery-powered projects
  • Hardware security: AES, RSA, hash acceleration, secure boot
  • Reset and boot buttons

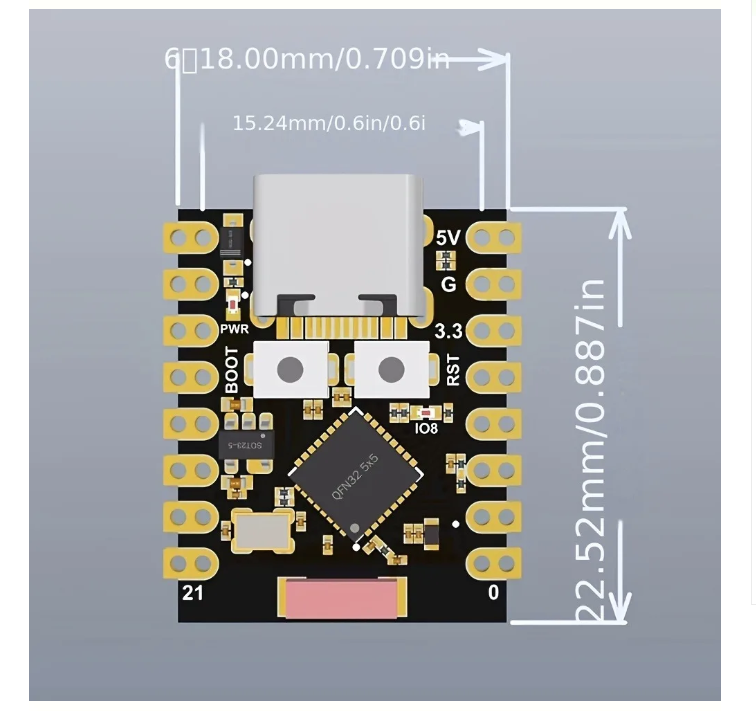

  • Size: 22.52 × 18mm

Pair it with


Downloads for this Product


  • Perfect For:

    • Wearable tech
    • Smart sensors
    • Home automation
    • Robotics
    • Wireless controllers
    • Compact IoT prototypes
    • Learning RISC‑V development
  • SuperMini Super Fun!

    Whether you're building smart wearables, compact sensors, home‑automation gadgets, or your next viral maker project, the SuperMini gives you the perfect blend of muscle, flexibility, and size.

  • Maker On-The-Move!

    Using a superMini board is a great way to miniaturise your circuits. Making projects, like the one I created while on a flight- possible!
