WS2812B RGB Pixel Modules – Sewable Pads (5 Pack)

WS2812B RGB Pixel Modules – Sewable Pads (5 Pack)

Regular price $7.00 USD
Regular price Sale price $7.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Not sure which LEDs? Compare every strip, ring and pixel, plus free code with CMozGlow.

LED Guide →

Shipping to the US? Orders go out from Nova Scotia the next business day. US shipping rates and duty info

Sold as a pack of 5. Quantity 1 in your cart means 5 pieces; quantity 2 means 10 pieces.

Let the Maker-O-Matic 3000 decide. Spin for a project idea.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

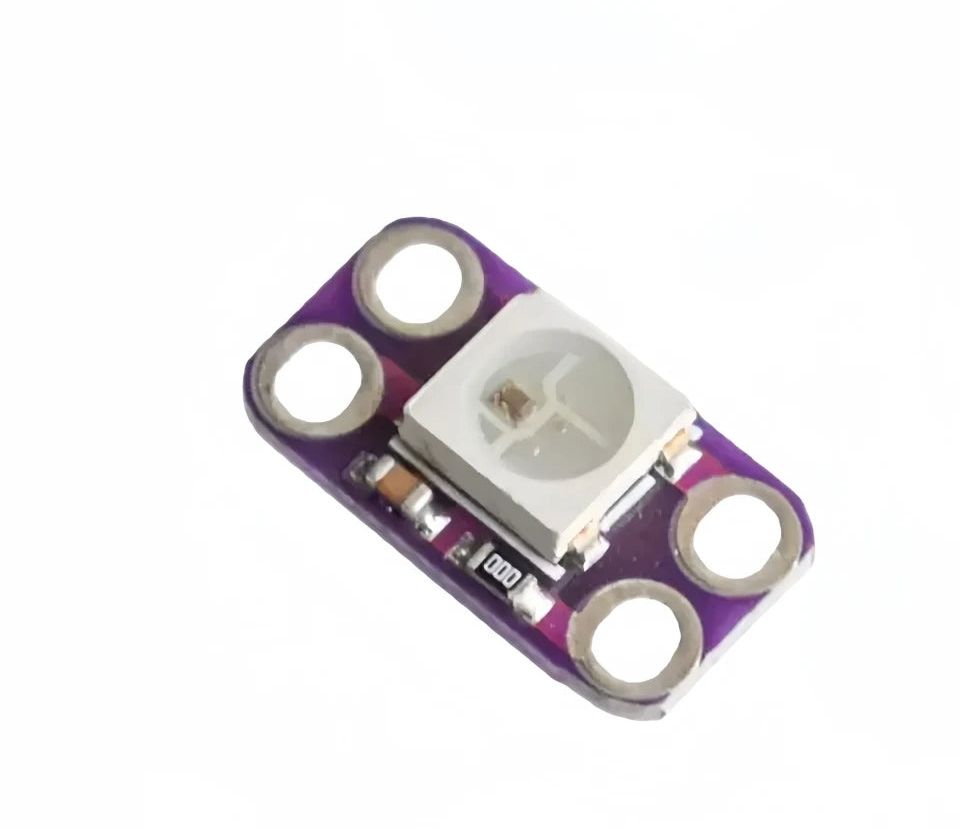

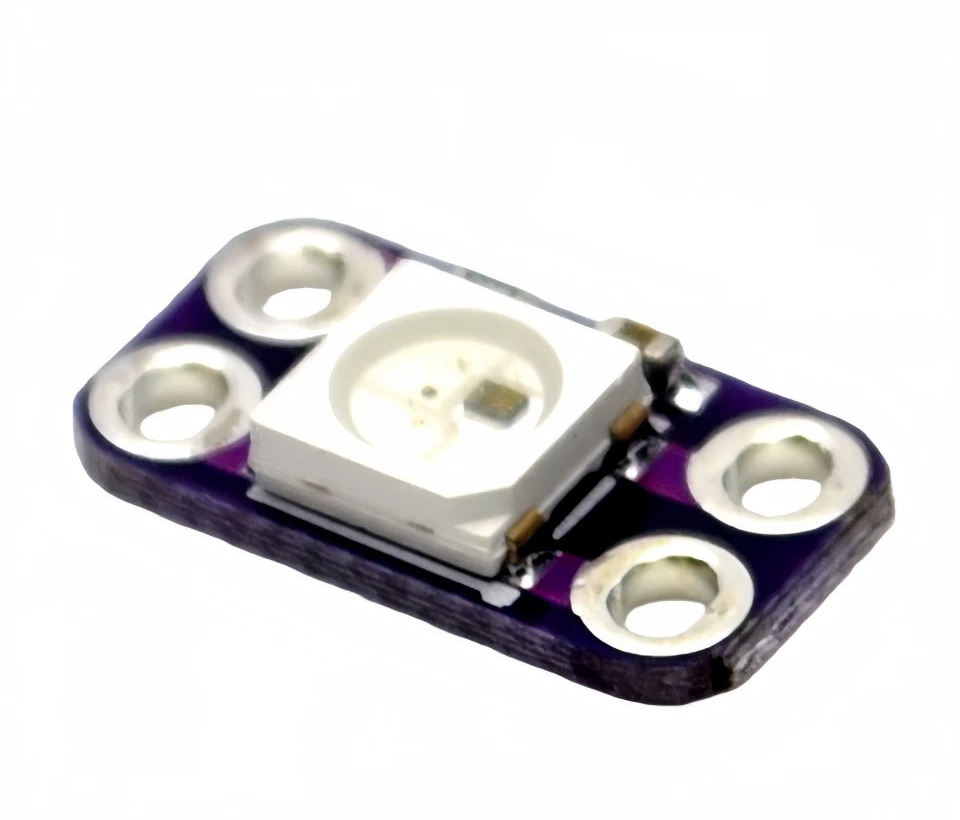

One addressable pixel, exactly where you want it. Each tiny purple board carries a single WS2812B 5050 RGB LED with its own built-in controller, so every pixel can show a different colour. Use one as a status light, or chain as many as you need — OUT of one goes to IN of the next — and control them all from a single pin.

Because they're separate boards, you can place pixels freely across a garment instead of being locked into strip spacing. Think stars scattered over a cape, eyes on a mask, or one glowing bead on a cuff. The large pads can be soldered or sewn with conductive thread.

Specifications

  • LED: WS2812B 5050 RGB with built-in driver IC
  • Colours: 24-bit (256 levels per channel)
  • Supply voltage: 5V nominal (usually works from 3.7V LiPo)
  • Current: up to about 60 mA at full white
  • Data: single-wire, chainable (IN → OUT)
  • Libraries: CMozGlow, FastLED, Adafruit NeoPixel (NEO_GRB)

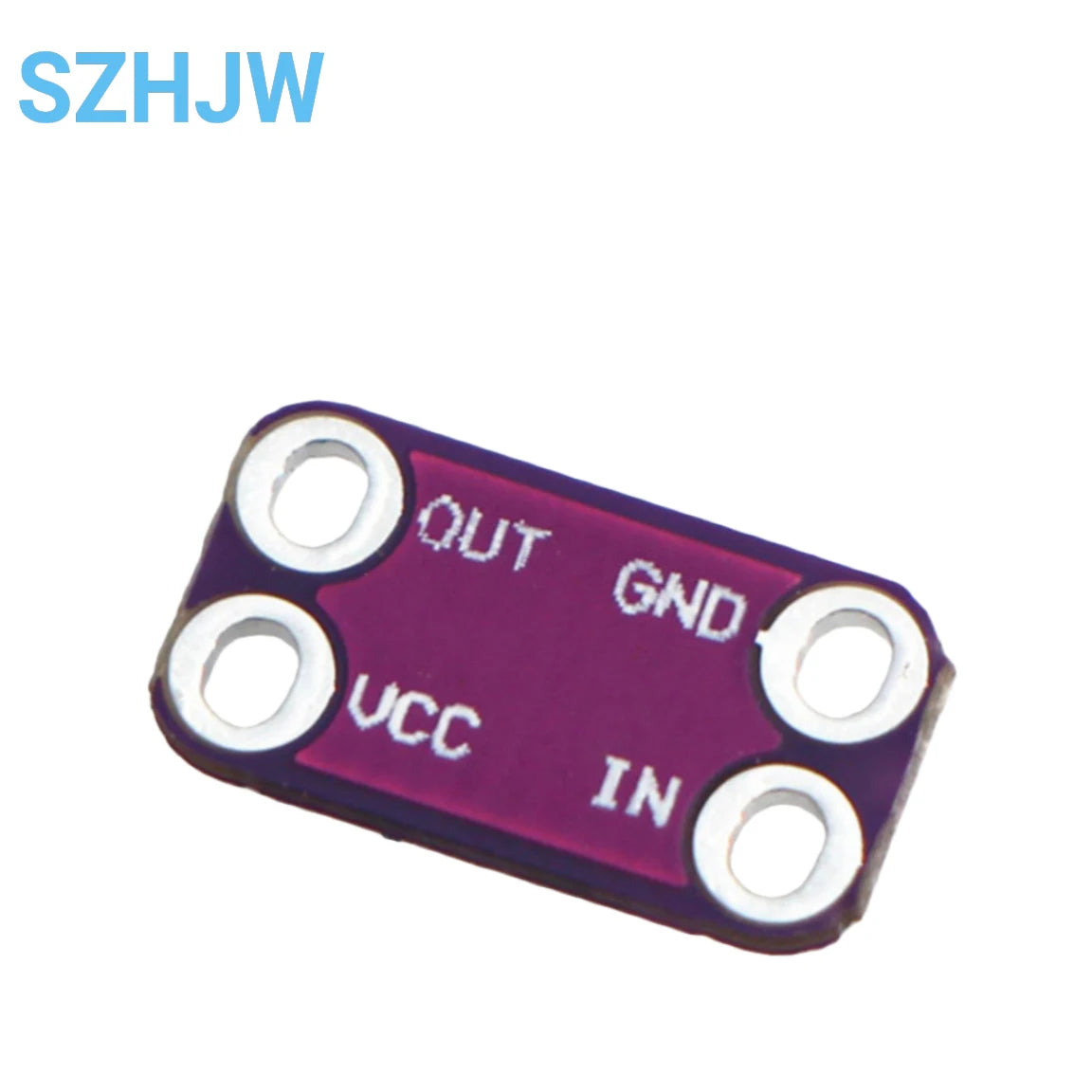

Pin Definitions

  • VCC — Power in, 5V
  • GND — Ground
  • IN — Data in, from your microcontroller or the previous pixel
  • OUT — Data out, to the next pixel

Project Ideas

Constellations on a jacket, glowing eyes on a mask or costume head, a status light on a wearable, jewellery that changes colour, or sparkles scattered across a skirt hem.

Good to know

Most WS2812B pixels run happily from a 3.7V LiPo, just slightly less bright than at 5V. Use conductive thread only for short runs: its resistance adds up quickly as you chain more pixels.

Pair It With

Get started fast with our free CMozGlow library. Sew them in with stainless steel conductive thread, or connect with Electro Loops (ring terminals). Want more pixels on one board? Try the NIBBLES 4-LED module, the 16-LED RGB ring, or WS2812D through-hole LEDs for a classic LED shape.

In the box

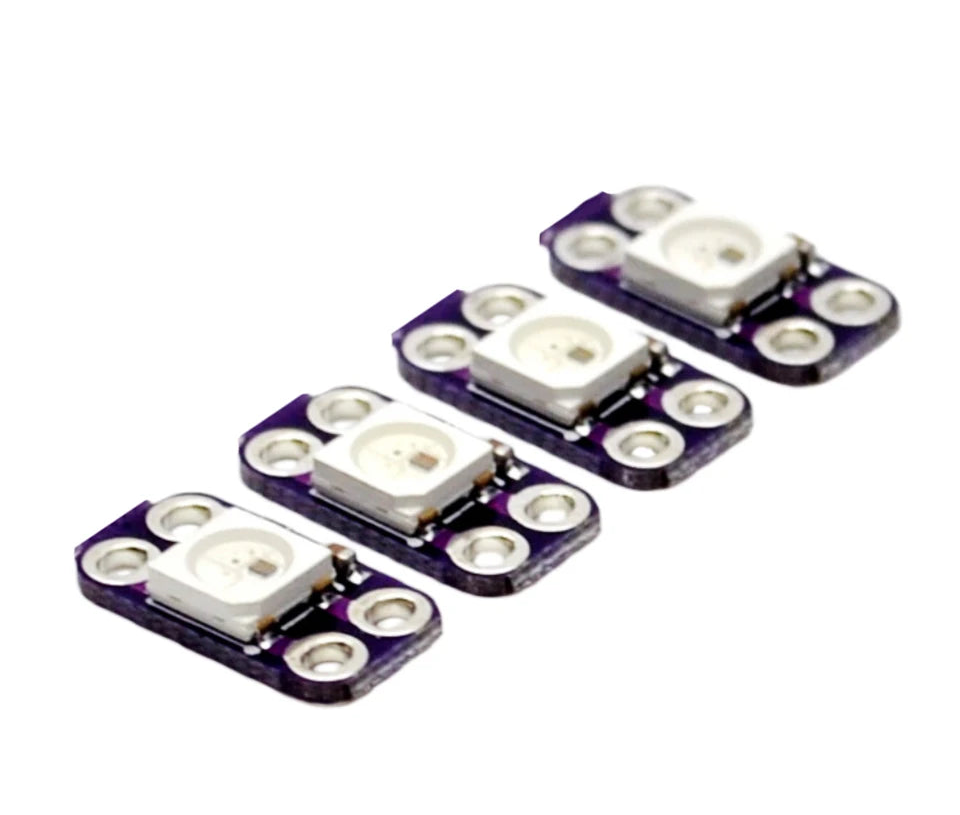

  • WS2812B RGB pixel module × 5

Want code for these lights without the headache? Preview your effects and copy a ready-to-run PlatformIO or Arduino sketch with the CMozGlow simulator. Learn more about the CMozGlow library.
