Tinker Tailor

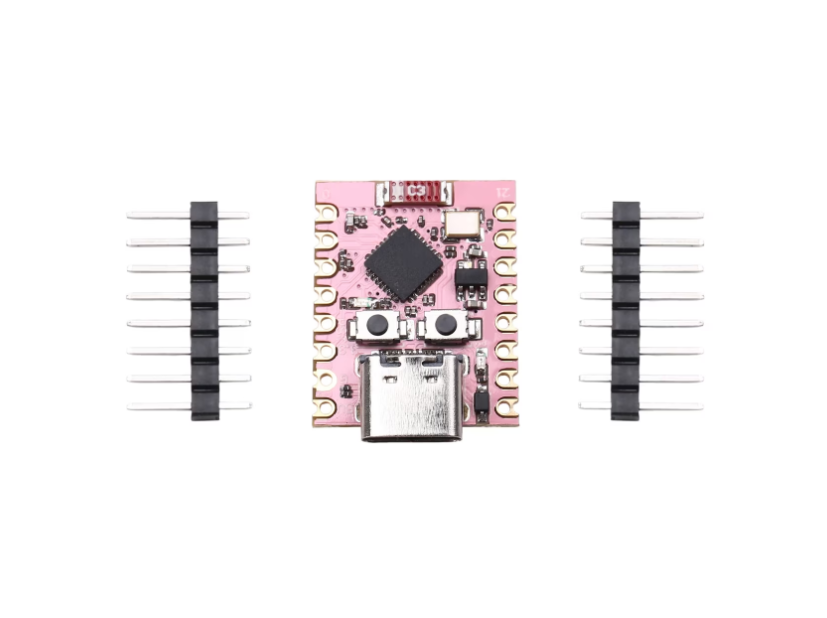

ESP32 C3 SuperMini Development Board (Pink)

ESP32 C3 SuperMini Development Board (Pink)

Regular price $9.75 CAD
Regular price Sale price $9.75 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity

Not sure which board? Compare every board by chip, touch pins, size and wireless.

Microcontroller Guide →
> PlatformIO setup (platformio.ini)

Paste this into your platformio.ini to get this board running.

[env:esp32-c3-supermini]
platform = espressif32
board = esp32-c3-devkitm-1
framework = arduino
monitor_speed = 115200
build_flags =
    -D ARDUINO_USB_MODE=1
    -D ARDUINO_USB_CDC_ON_BOOT=1
  • Keep the two build_flags lines: without them the Serial Monitor stays blank.
  • Upload won't start? Hold BOOT, tap RESET, let go of BOOT, then upload again.
  • The blue LED is on GPIO8 and lights when the pin is LOW.
  • Arduino IDE: choose ESP32C3 Dev Module and set Tools > USB CDC On Boot to Enabled.
  • The C3 has no touch pins; add an MPR121 for conductive fabric buttons.

Shipping in Canada from $3.50 for small parcels up to 150 g, usually arriving in about 4 business days. Canadian-owned and packed by hand in Nova Scotia, so there's no cross-border duty or brokerage. Shipping rates

🌟 ESP32‑C3 SuperMini — Tiny Board, Mighty Power in PINK 🩷!

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

The thumb‑sized WiFi + Bluetooth 5 IoT powerhouse for makers, tinkerers, and wearable‑tech dreamers.

If you love squeezing maximum capability into the smallest possible footprint, the ESP32‑C3 SuperMini is about to become your new favourite board. Built around Espressif’s efficient 32‑bit RISC‑V CPU, this little beast delivers serious computing power, ultra‑low energy consumption, and rock‑solid wireless performance—all in a board barely bigger than a postage stamp.

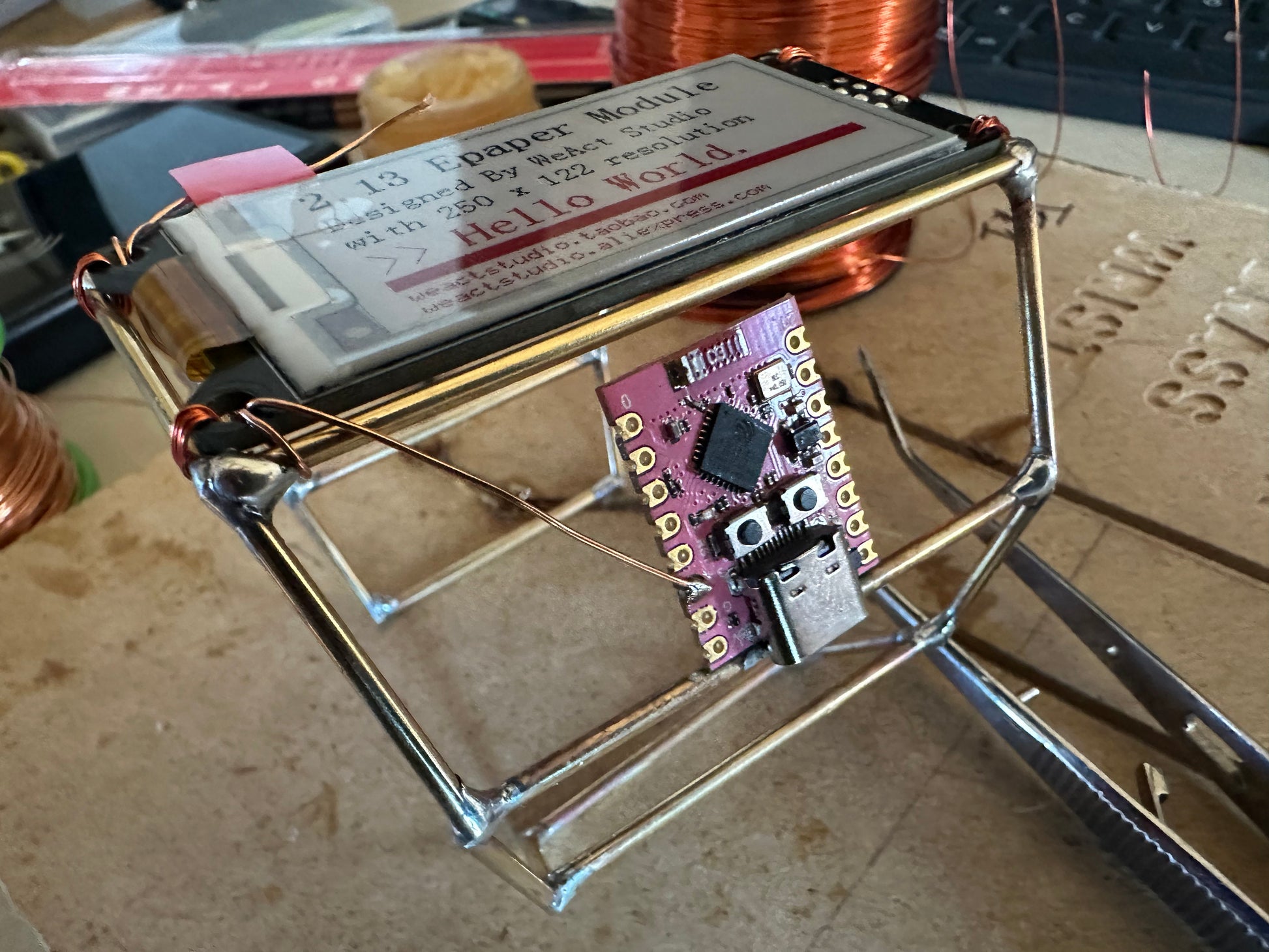

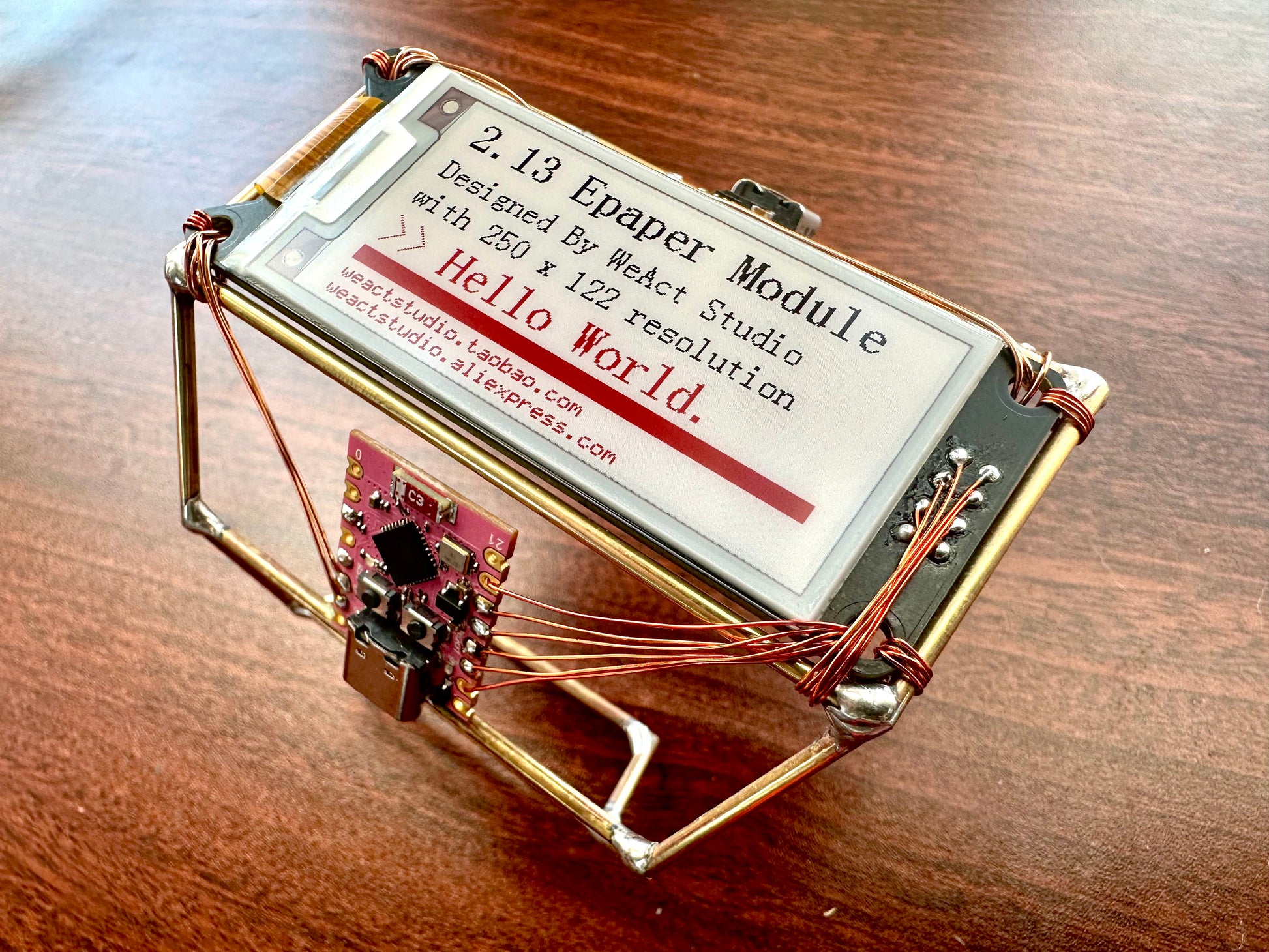

Using a SuperMini board is a great way to miniaturise your circuits, making projects like the to-do list build possible.

Why You’ll Love It

⚡ Powerful RISC‑V Performance

  • ESP32‑C3 single‑core RISC‑V CPU
  • Up to 160 MHz clock speed
  • Built‑in FPU for smooth 32‑bit floating‑point operations
  • 400 KB SRAM + 384 KB ROM + 4 MB Flash

Dual Wireless Connectivity

  • WiFi 802.11 b/g/n (2.4 GHz)
  • Bluetooth 5.0 (LE) for modern low‑energy peripherals

Ultra‑Low Power Ready

  • Deep‑sleep consumption around 43 μA, perfect for battery‑powered and always‑on IoT devices.

Rich I/O for Maximum Creativity

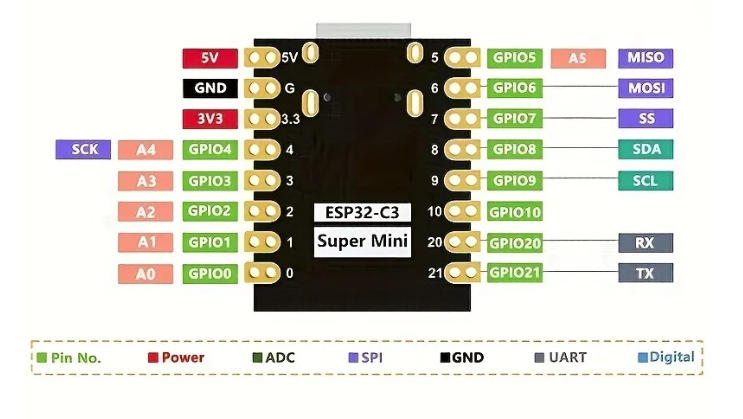

  • 11× GPIO (all PWM‑capable)
  • 4× ADC inputs
  • 2× UART, 1× I2C, 1× SPI
  • Onboard blue LED on GPIO8
  • Handy Reset + Bootloader buttons

Hardware‑Level Security

  • AES‑128/256
  • RSA
  • Hash acceleration
  • Digital signature
  • Secure boot

Ultra‑Compact Design

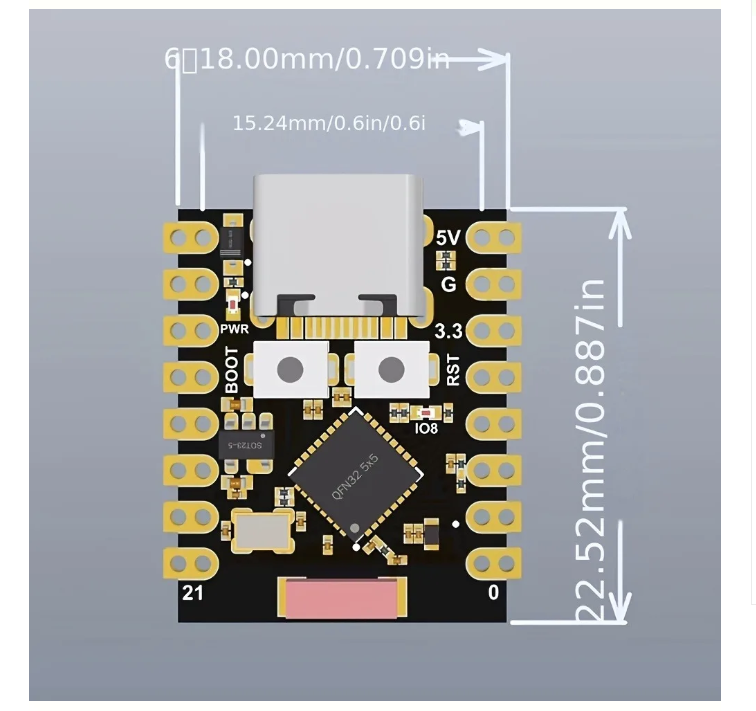

  • Just 22.52 × 18 mm
  • Perfect for wearables, embedded projects, and tight enclosures
  • Classic “SuperMini” layout for easy prototyping

Prefer a classic finish? See the Black ESP32-C3 SuperMini Development Board.


Downloads for this Product


  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Thomas

I bought 3, exciting to have different colors than black all the time. Made my wife her own little circuit.

N
Nancy

love that i can get these in pink
