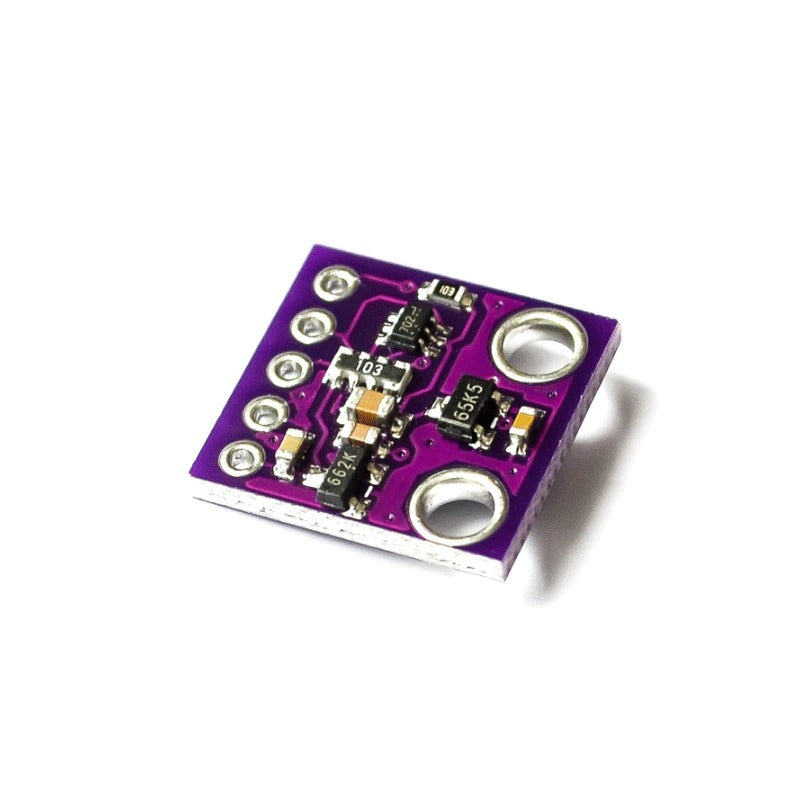

Heart / Pulse Sensor MAX30102

Heart / Pulse Sensor MAX30102

$4.95 CAD
$4.95 CAD
Sale Sold out
Shipping calculated at checkout.

Add real health sensing to your wearable builds with the MAX30102 — an integrated pulse oximeter and heart rate biosensor used in Samsung Galaxy phones and professional fitness devices. It measures heart rate and blood oxygen saturation (SpO2) using red (660nm) and infrared (880nm) LEDs with PPG (photoplethysmography) reflection, and communicates over I2C.

Warning: may produce weird and wonderful projects. Try the Maker-O-Matic 3000.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

Works on fingers, earlobes, and wrists. An integrated glass cover and ambient light suppression circuit ensure reliable readings even in bright environments. Ultra-low standby power (near zero) makes it ideal for battery-powered wearables.

Specs

  • Sensor IC: MAX30102
  • Measurement: Heart rate + SpO2 (blood oxygen)
  • LED wavelengths: 660nm (red) / 880nm (IR)
  • Signal type: PPG (light reflection)
  • Interface: I2C
  • Supply voltage: 1.8V – 5V
  • Communication voltage: 1.8V / 3.3V / 5V (selectable via pad)
  • Mounting holes: 0.5 × 8.5mm

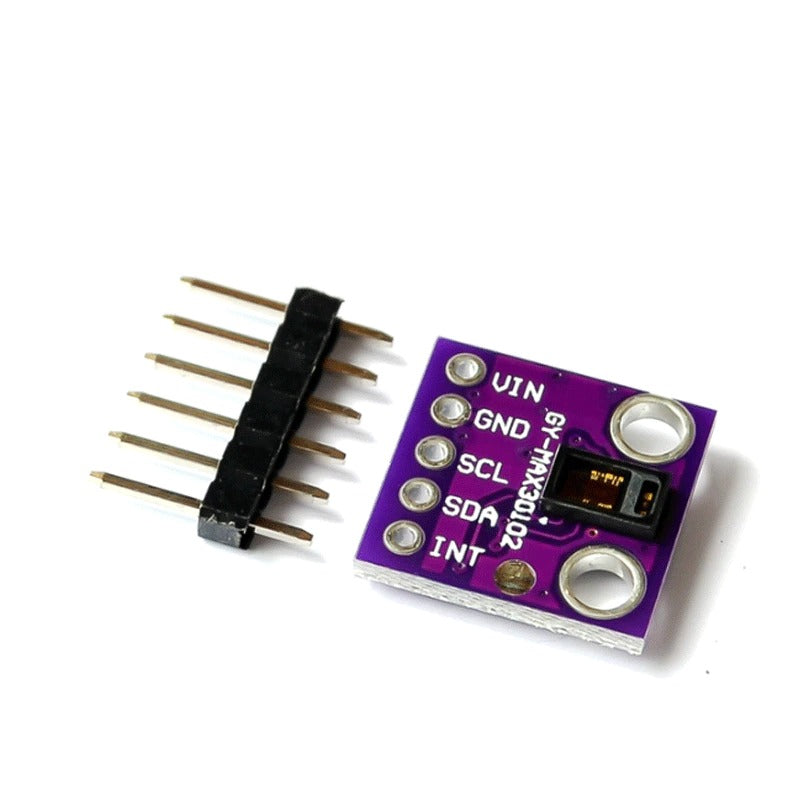

Pin Definitions

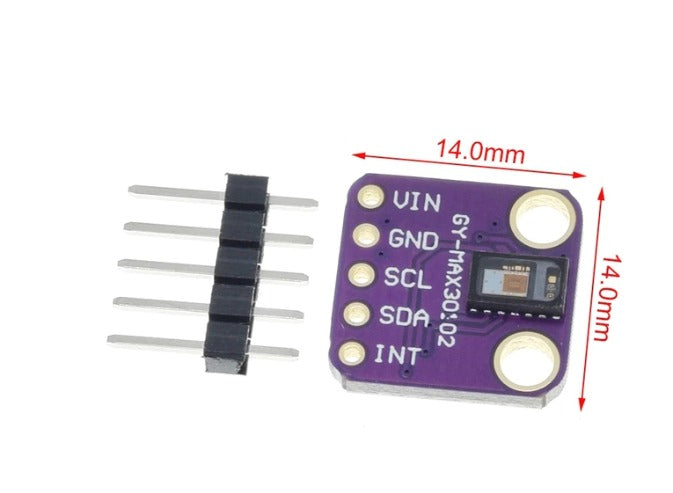

  • VIN — Power input (1.8V–5V)
  • GND — Ground
  • SCL — I2C Clock
  • SDA — I2C Data
  • INT — Interrupt output
  • RD / IRD — LED ground terminals (typically not connected)
  • 3-bit pad — Bus pull-up level select (1.8V or 3.3V+)

In the box

  • MAX30102 Heart Rate Sensor Module × 1
