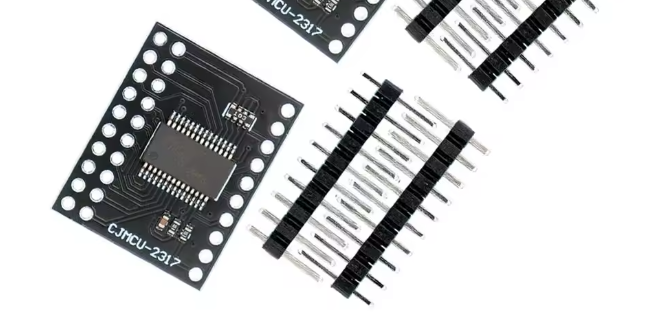

MCP23017 16-Bit I/O Expander Module (I2C)
MCP23017 16-Bit I/O Expander Module (I2C)
Regular price
$5.95 CAD
Regular price
Sale price
$5.95 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Add 16 extra GPIO pins to your ESP32 or any microcontroller using just two I2C wires. The MCP23017 converts 16-bit parallel I/O to I2C serial, with two programmable interrupt outputs and a polarity inversion register, which makes it ideal for button matrices, touch inputs, LED control and other pin-hungry wearable builds.
Warning: may produce weird and wonderful projects. Try the Maker-O-Matic 3000.
Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca
Add this too
Details
Specs

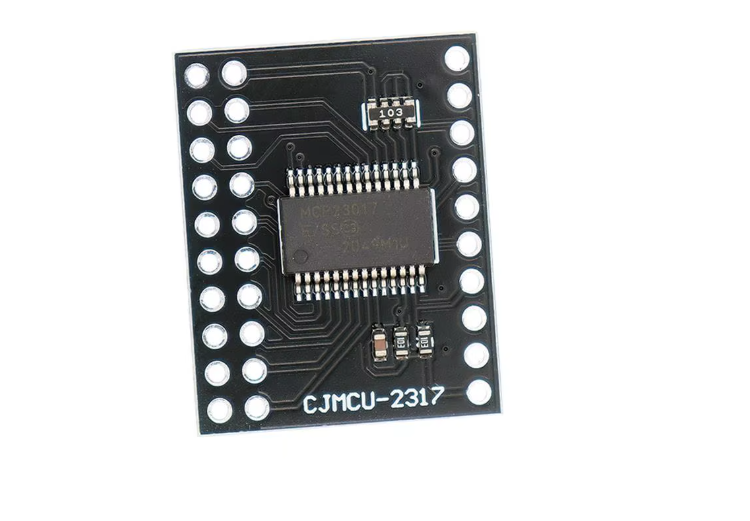

- Chip: MCP23017, 16-bit bidirectional I/O
- Interface: I2C, up to 1.7MHz
- Operating voltage: 1.8V to 5.5V
- Operating temperature: -40C to 85C

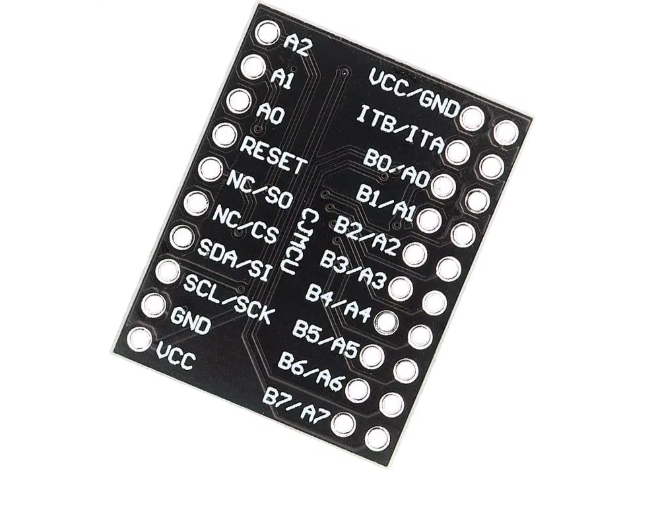

- Address pins A0, A1, A2 (up to 8 modules on one bus)
- Two interrupt outputs (INTA, INTB) and reset pin
- Internal power-on reset
