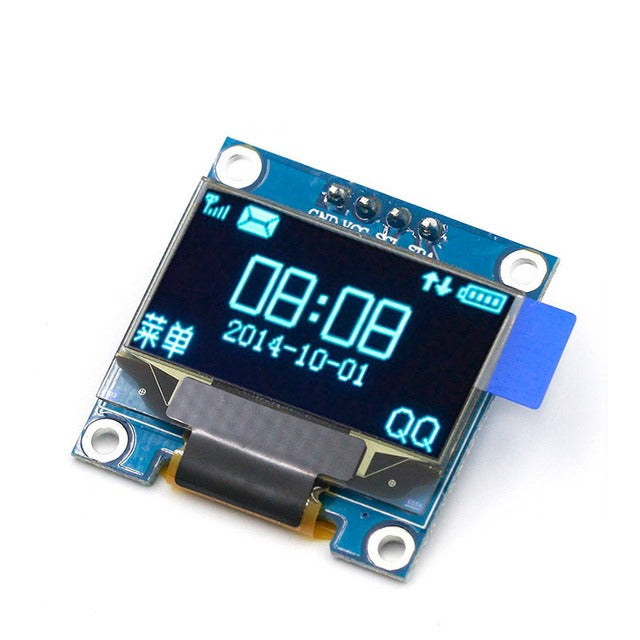

• Blue 0.96 inch OLED showing a clock
  • Blue 0.96 inch OLED module, angled
  • OLED 0.96" Blue image 2
  • OLED 0.96" Blue image 3
1 4

Tinker Tailor

OLED 0.96" Blue (Blue Circuit Board)

OLED 0.96" Blue (Blue Circuit Board)

$7.99 CAD
$7.99 CAD
Sale Sold out
Shipping calculated at checkout.

A lovely OLED to add a display to your wearable. This uses the I2C protocol so you only need to connect SDA and SCL to your microcontroller — simple and clean wiring.

Let the Maker-O-Matic 3000 decide. Spin for a project idea.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

Also available: Black Circuit Blue OLED 0.96", Black Circuit Yellow & Blue OLED 0.96", White OLED 0.91" 128×32, and OLED 1.3" SPI.

Specifications

  • Screen: 128 × 64 pixels, SSD1306 driver
  • Interface: I2C (IIC)
  • Voltage: 3.3–5 V
  • PCB size: 25 × 25 mm
  • PCB colour: Blue

Pinout

  • GND — Ground
  • VCC — Power (3.3–5 V)
  • SCL — I2C clock line
  • SDA — I2C data line

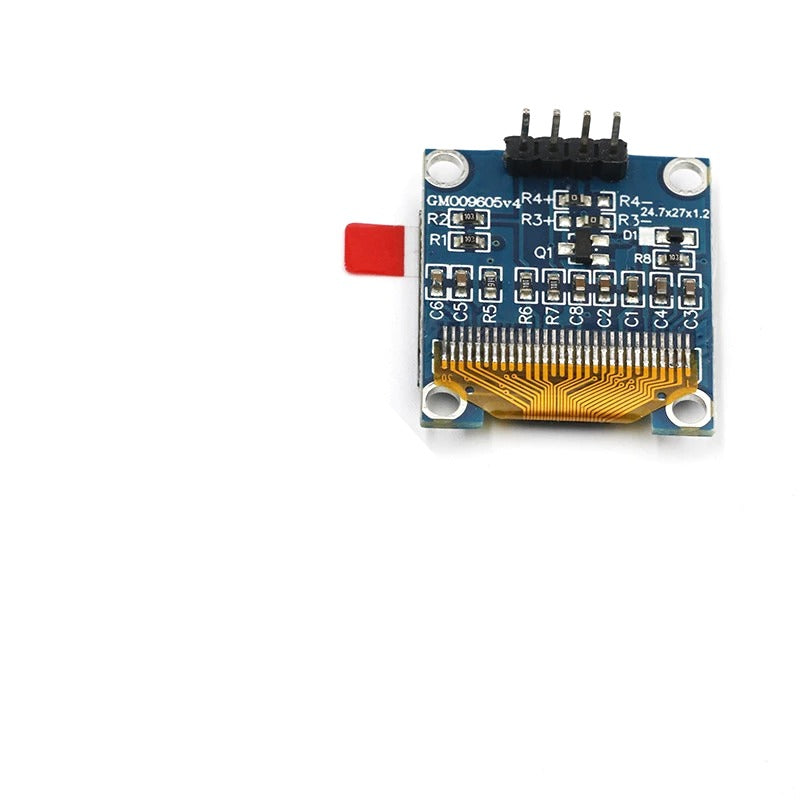

Address Select

On the back of the board is a small resistor for address selection. Desolder and move it to the alternate pads to switch between 0x78 and 0x7A — useful when running multiple OLEDs on the same I2C bus.
