Small Inductive Coil & 10 Wireless LEDs - 5V

Small Inductive Coil & 10 Wireless LEDs - 5V

Regular price $15.50 CAD
Regular price Sale price $15.50 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity

Not sure which LEDs? Compare every strip, ring and pixel, plus free code with CMozGlow.

LED Guide →

Shipping in Canada from $3.50 for small parcels up to 150 g, usually arriving in about 4 business days. Canadian-owned and packed by hand in Nova Scotia, so there's no cross-border duty or brokerage. Shipping rates

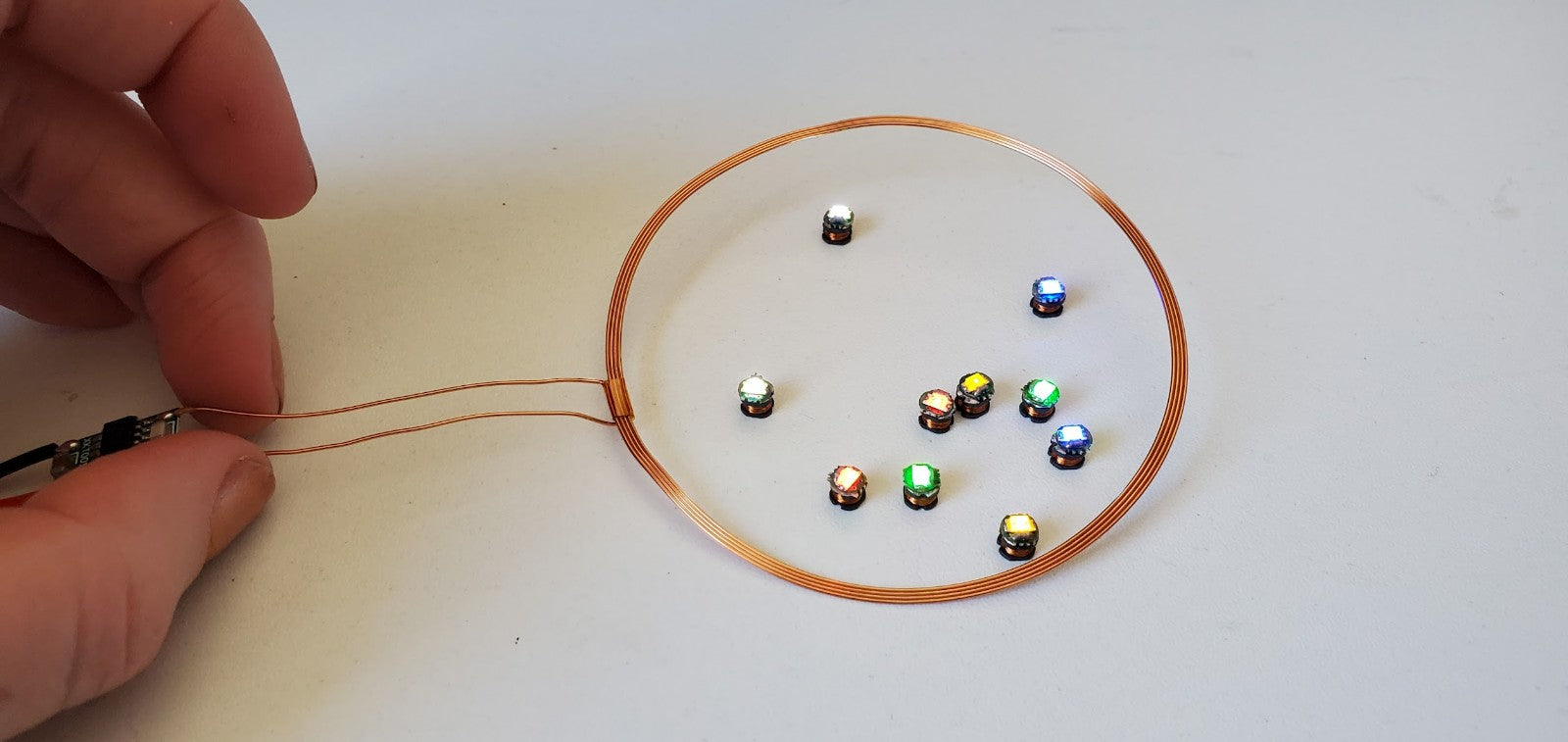

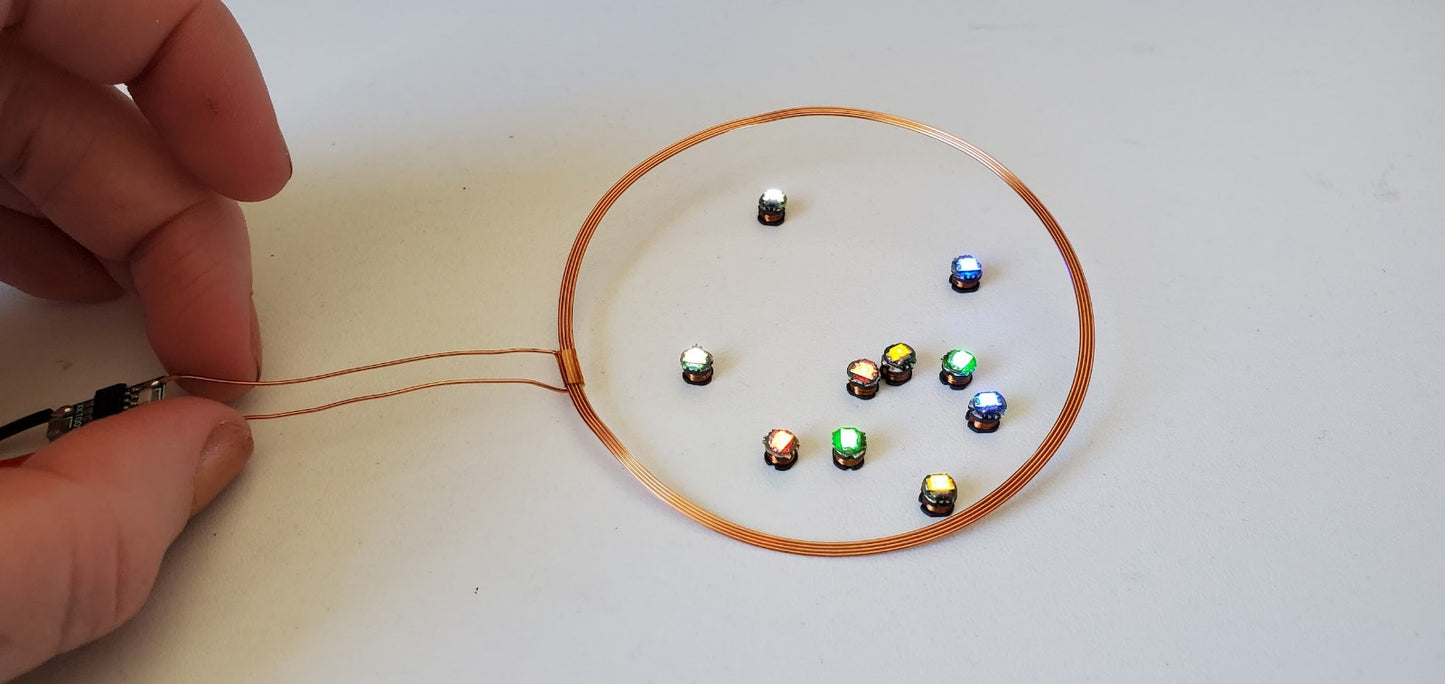

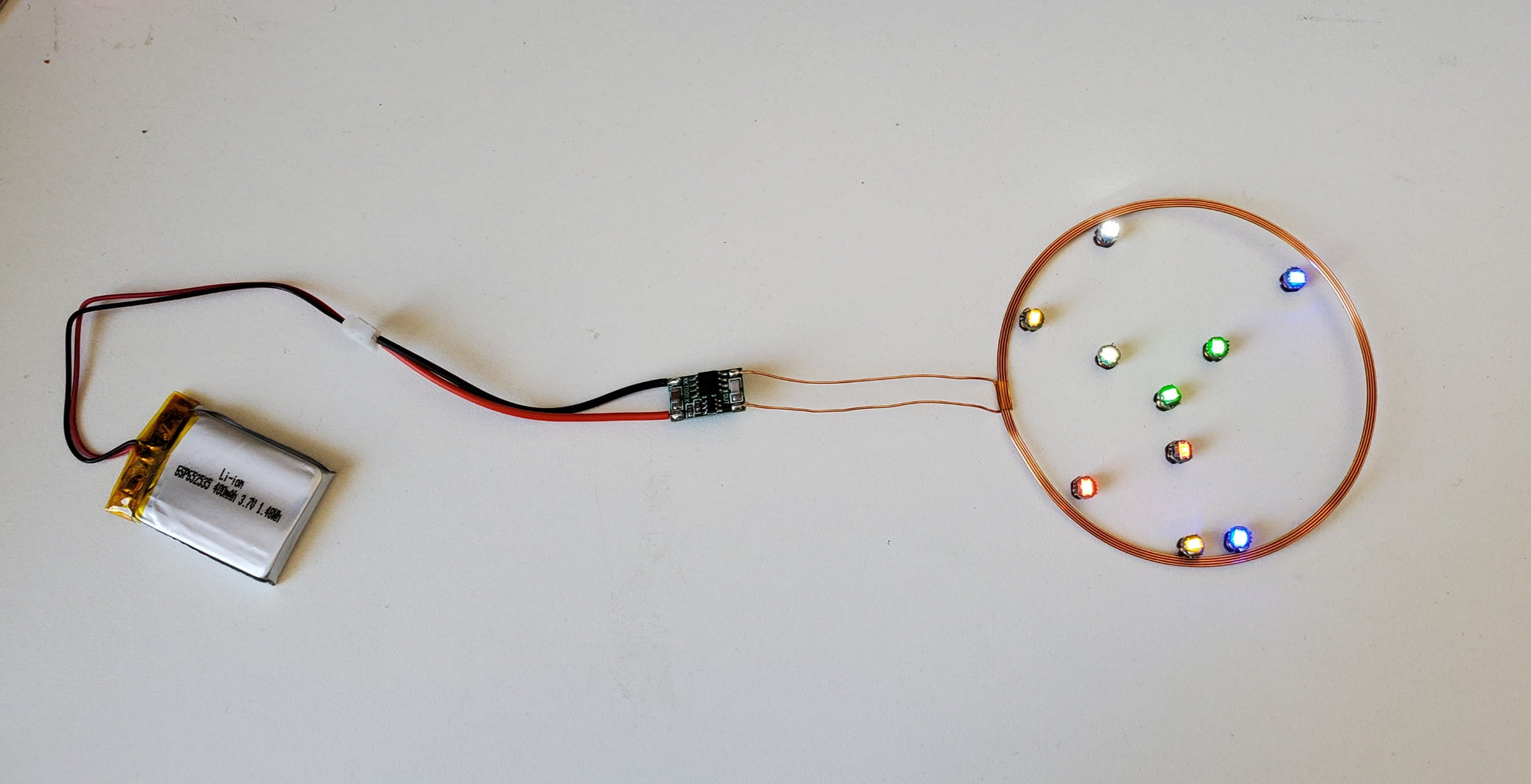

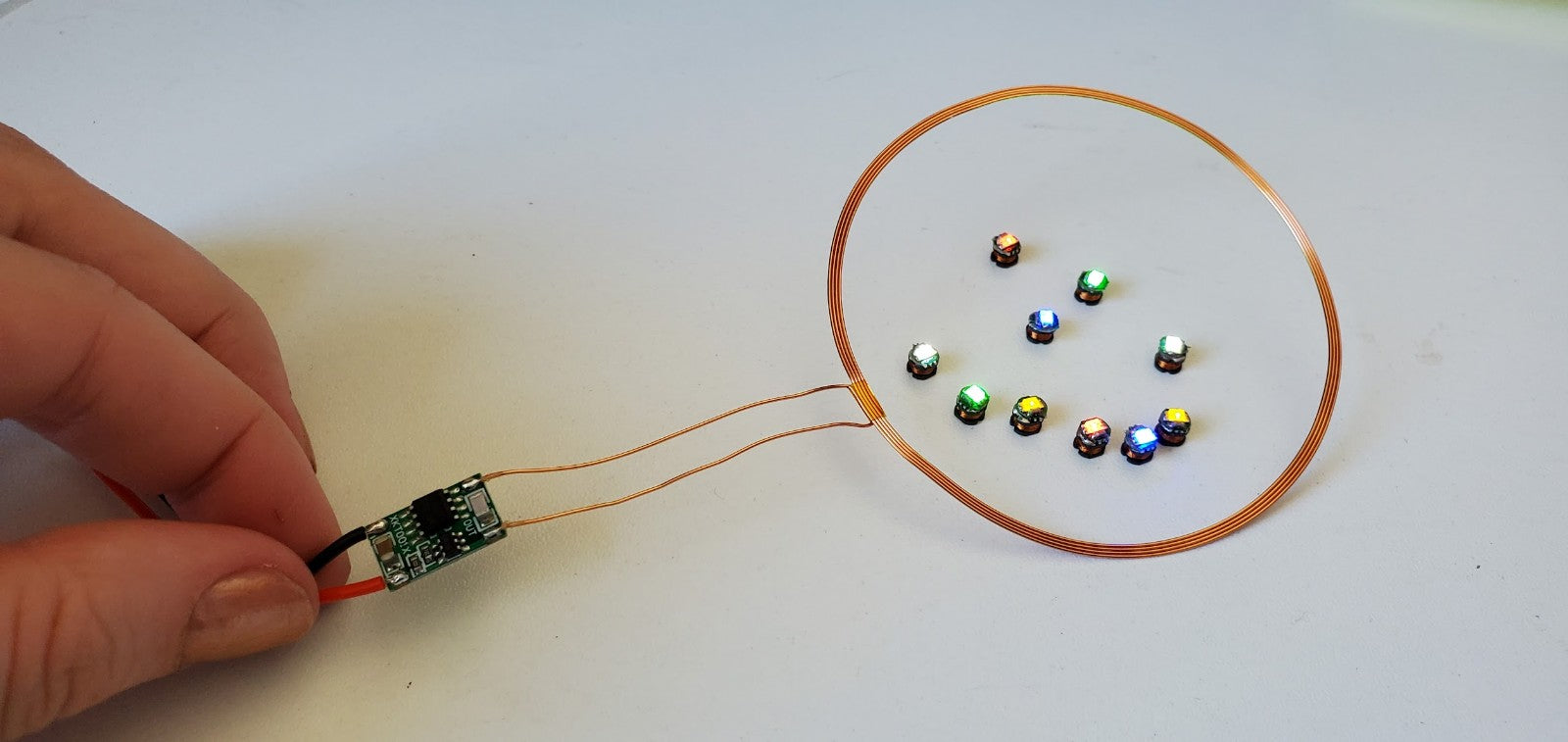

It’s true magic to see. This comes with a driver board which you power at 5 V, and the coil wirelessly lights up your LEDs — no wires between the coil and the LEDs at all. This could be part of a really fun wearable project.

Idea machine, now open. Give the Maker-O-Matic 3000 a spin.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

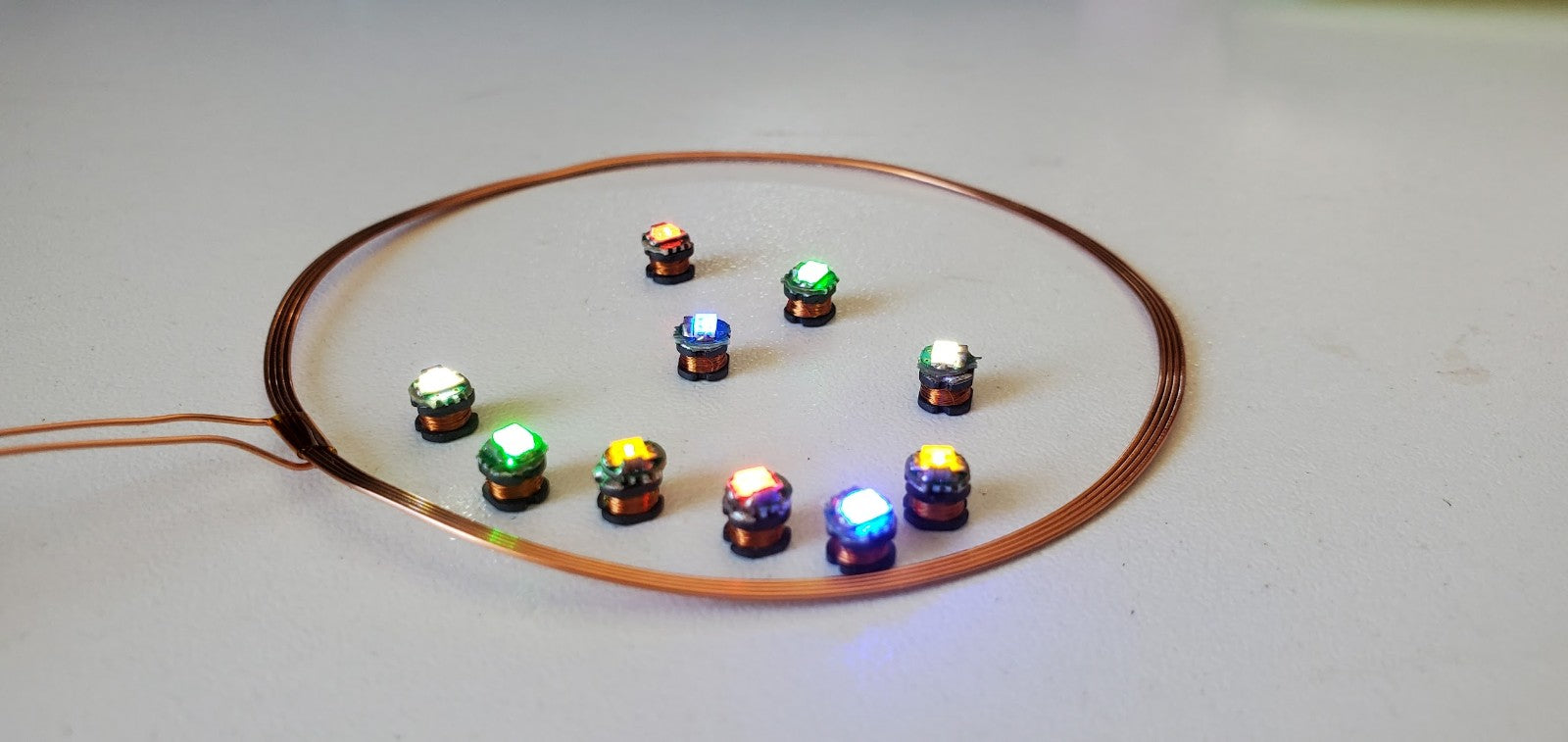

The coil is fairly small so you get about 1–3" of vertical space to work within. The closer your lights are to the coil, the brighter they will be. They can be inside or outside of the coil and they will still work. Battery not included.

Based on magnetic resonance coupling technology — the same principle as wireless charging. The transmitter coil creates a non-radiative magnetic field that excites resonance in the tiny receiver coils on each LED bead, transferring energy through air, paper, or plastic at ultra-low power consumption.

Specifications

  • Transmitter input voltage: 5 V
  • Transmitter coil: 70 mm outer diameter, 65 mm inner diameter, 0.5 mm thick
  • Driver board: 16 × 12 × 2.5 mm
  • Receiver LED diameter: 4.3 mm
  • Induction distance: 0–80 mm
  • Included: 10 wireless LEDs + driver board + transmitter coil
