UV Detection Sensor Module

UV Detection Sensor Module

$6.99 CAD
$6.99 CAD
Sale Sold out
Shipping calculated at checkout.

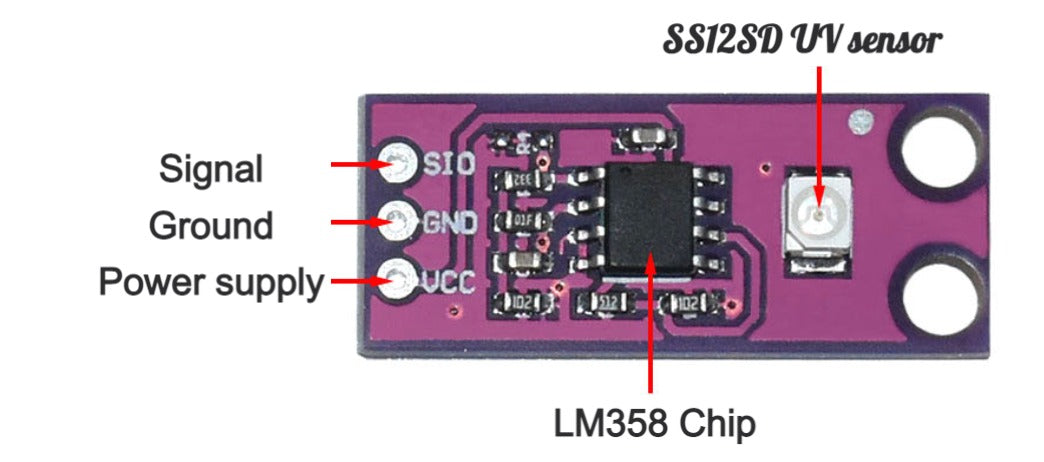

This board uses the S12SD UV sensor to detect sunlight intensity. It includes an onboard LM358 amplifier to boost the weak signal from the photodiode for reliable analog readings on your microcontroller.

Let the Maker-O-Matic 3000 decide. Spin for a project idea.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

The GaN-based Schottky photodiode has high responsiveness and low dark current. All components use 1% precision parts. Great for UV-index wearables, outdoor safety gear, or reactive projects that respond to sunlight levels.

Specifications

  • Sensor: S12SD (GaN-based Schottky photodiode)
  • Wavelength range: 240–370 nm (UVB/UVA)
  • Detection angle: 130°
  • Power supply: 2.5–5 V
  • Board size: 11 × 27 mm
  • Analog output — connect directly to a microcontroller ADC pin
