Details

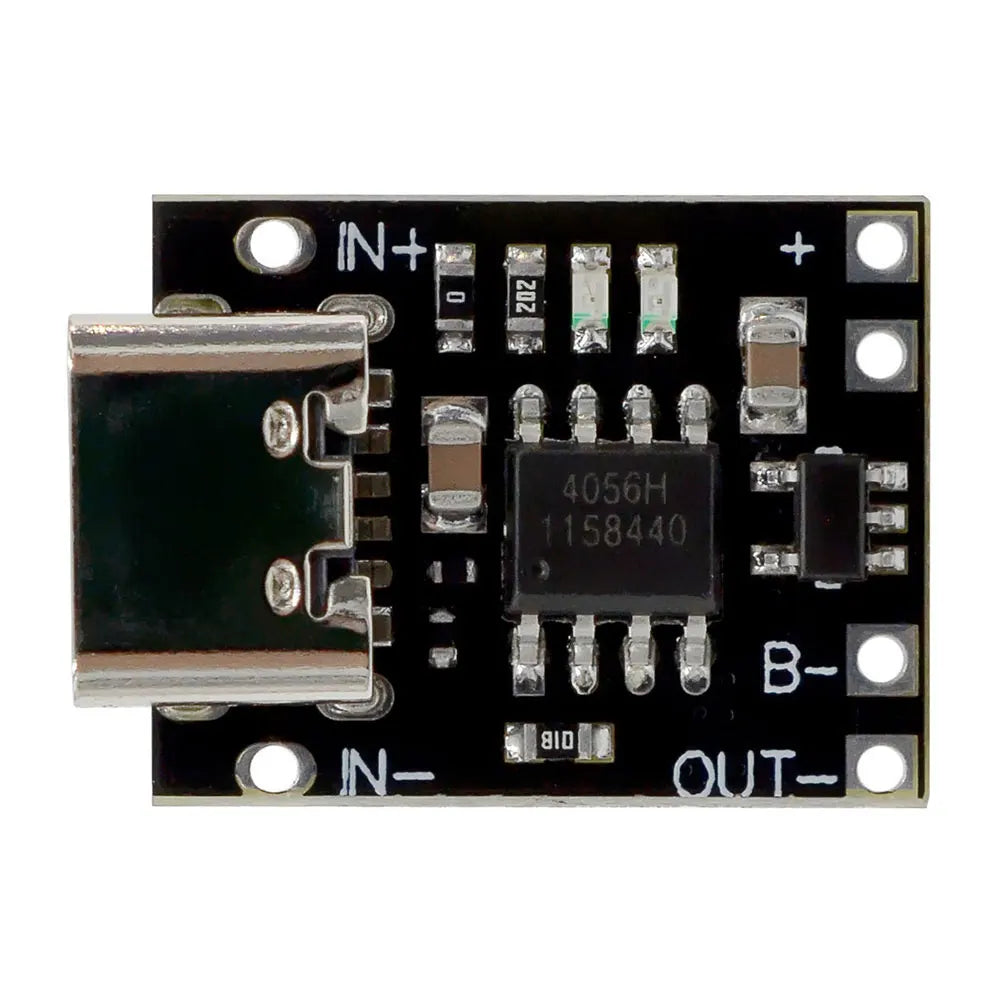

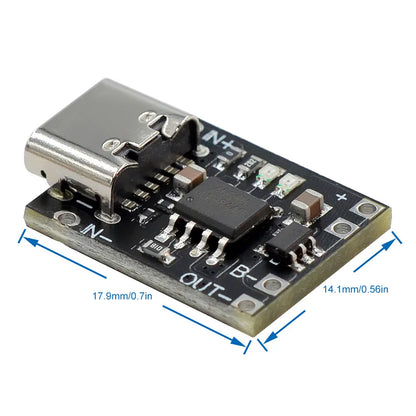

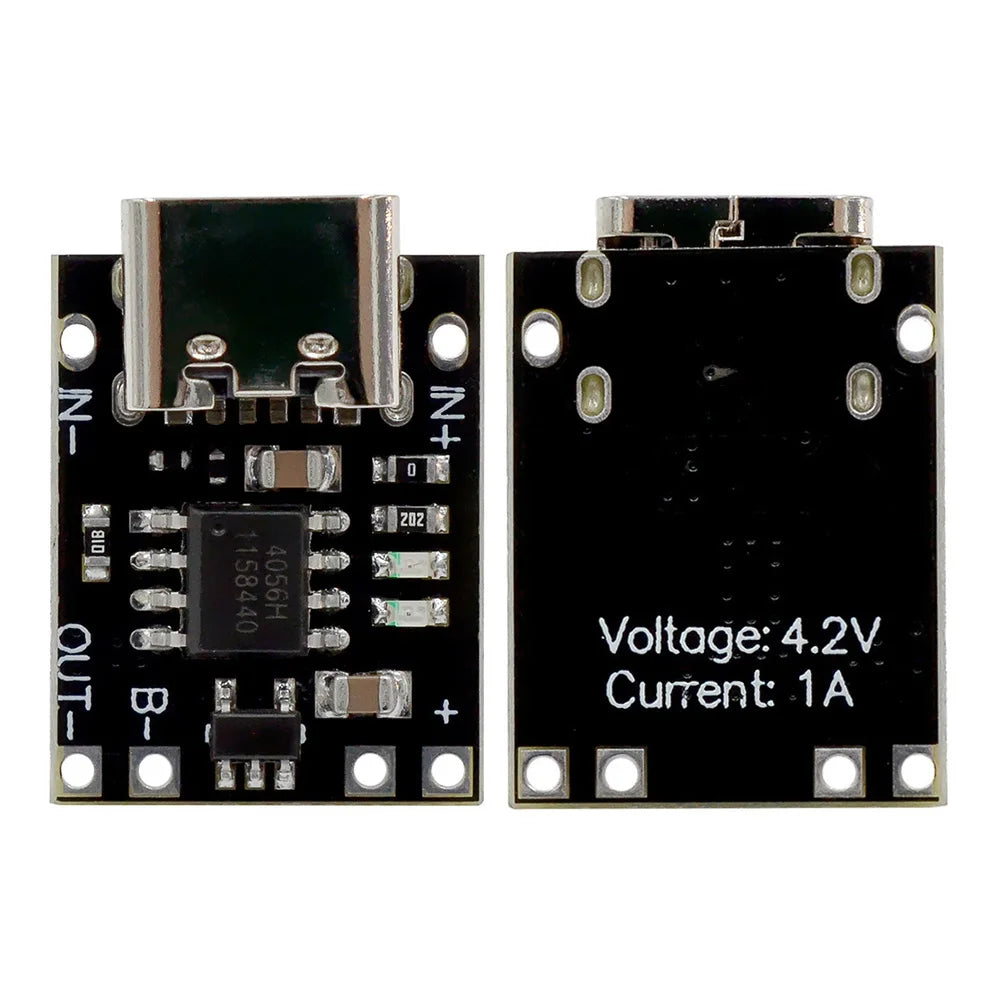

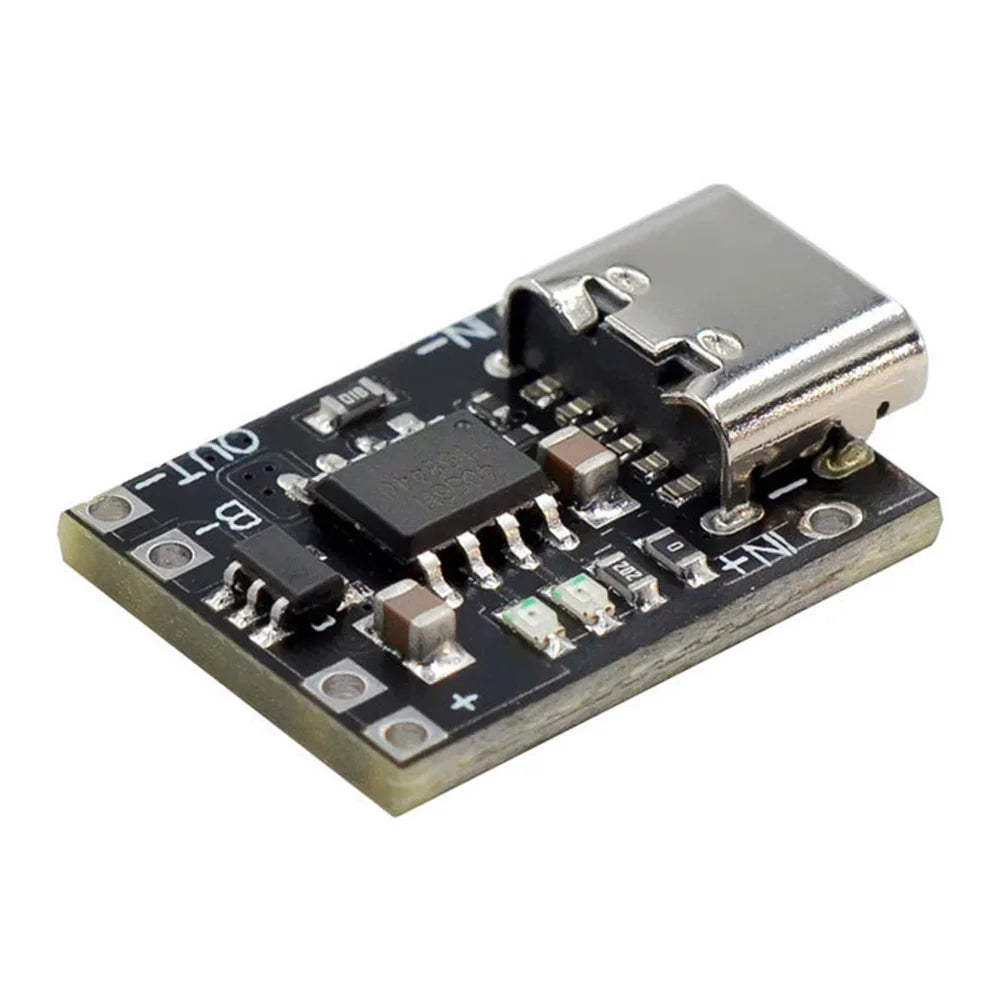

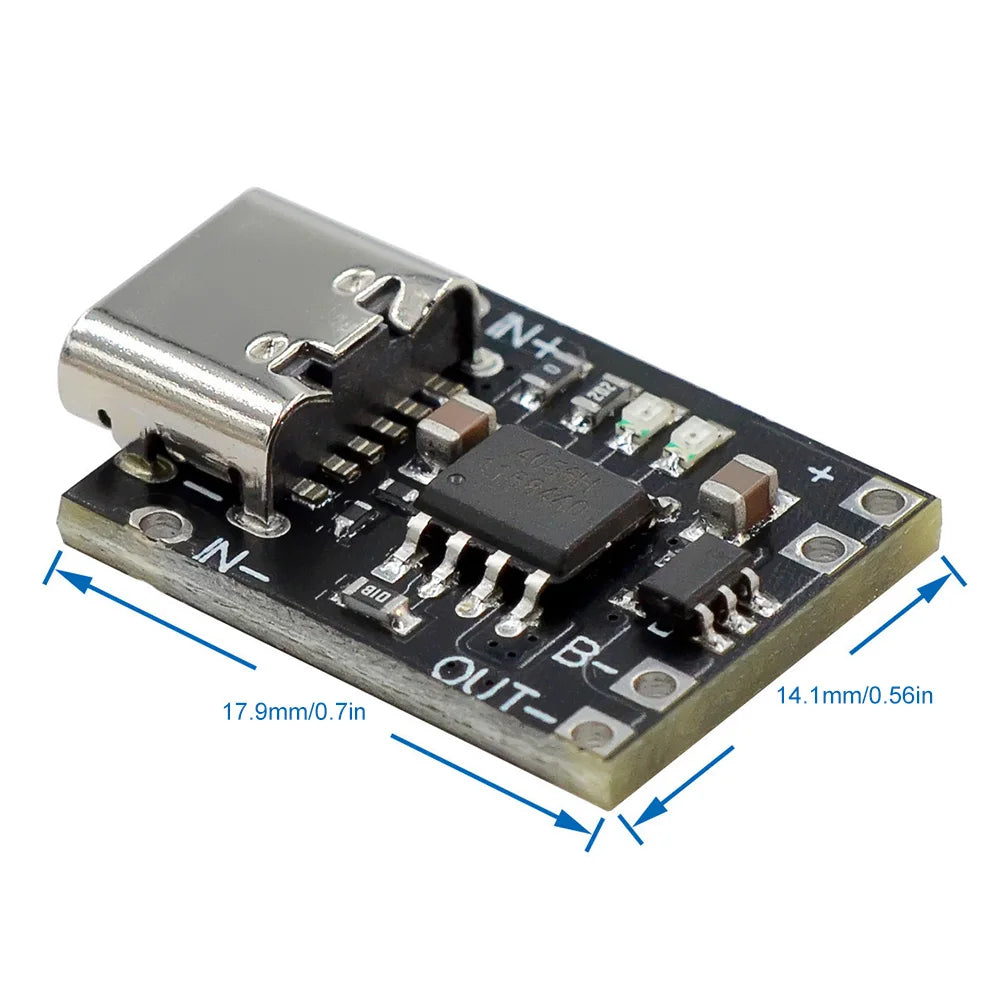

I use these in almost all of my wearable builds. Smaller and more discreet than the traditional blue TP4056 boards, with a full protection circuit built in.
Specs
- Input: 5–6V (USB-C or wired)
- Output: 3.7V single-cell lithium (parallel connection supported, no series)
- Charge current: 1A default
- Auto-termination when current drops to 100mA at float voltage
- Pre-charge at 100mA when battery is below 2.9V
- Overdischarge protection: 2.4V
- Overcurrent protection: 4A
- Overvoltage protection: included
Important notes

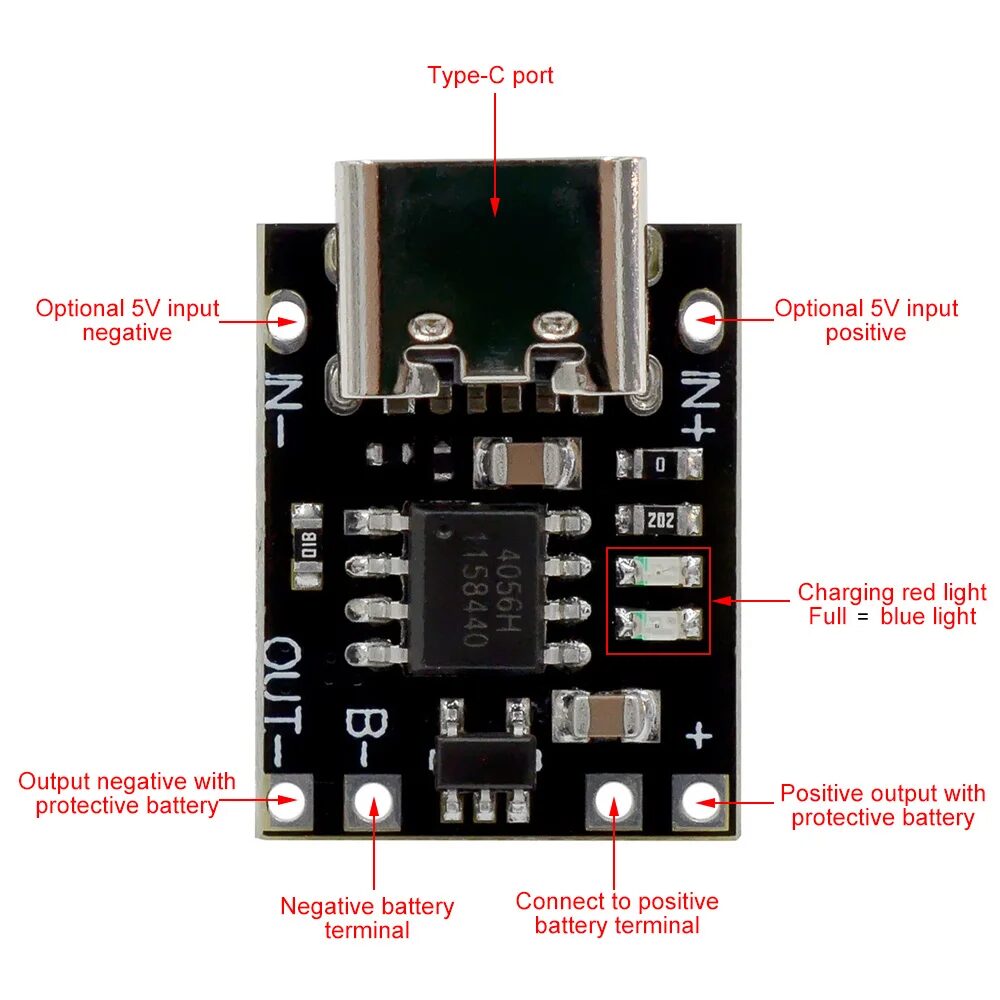

- First use: Connect power supply first to activate the protection board
- Battery connections must be soldered — use wire that isn't too thin
- Do not connect battery in reverse
- Parallel connection only — no series
