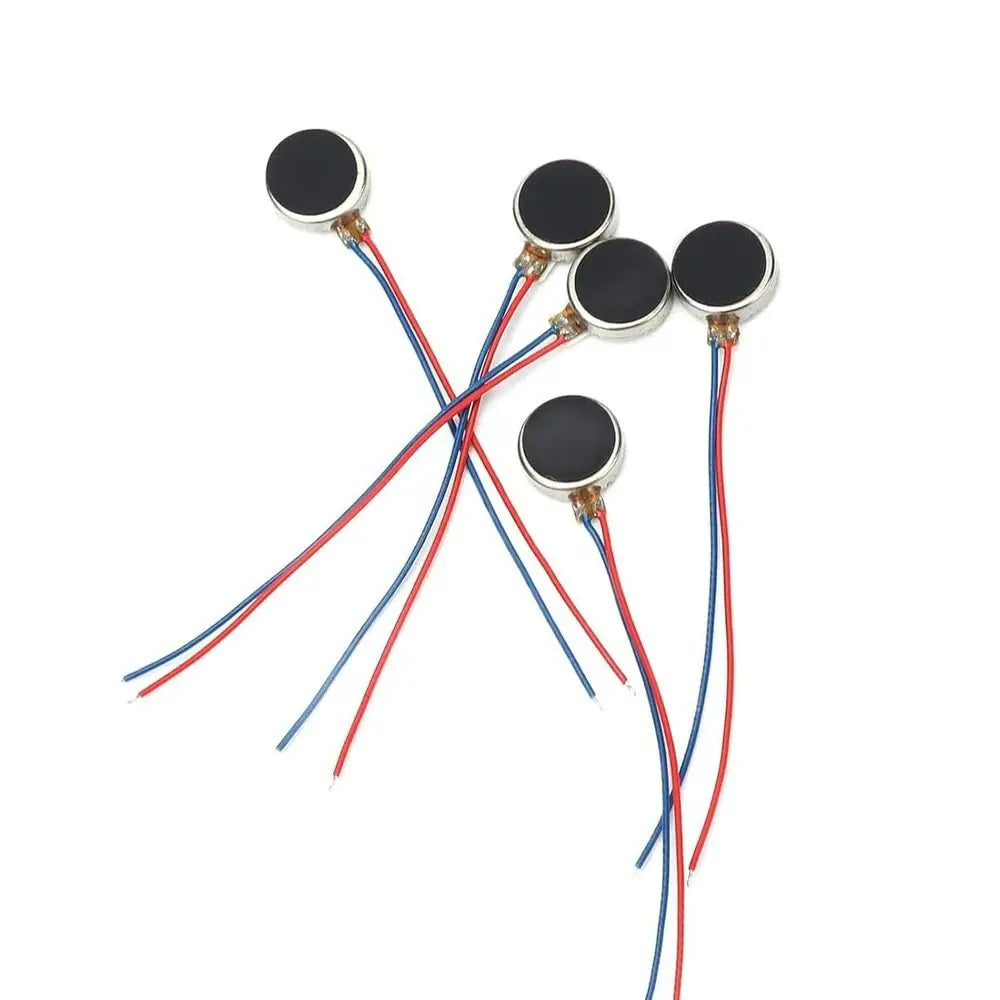

Add a quiet buzz you can feel. This flat coin vibration motor is the same kind used inside phones and smartwatches. At just 10 mm across and 2.7 mm thick, it disappears into a cuff, a glove, a collar or a bag strap.
Haptic feedback is one of the most useful outputs in wearables. It can confirm a touch, deliver a private notification, or guide someone with a tap on the wrist, and nobody else hears or sees it.
Specifications
Size: 10 mm diameter × 2.7 mm thick (1027)
Rated voltage: 3V DC (range 2.5–4.0V)
Starting voltage: 2.3V
Speed: about 12,000 rpm
Current: up to 80 mA running (100 mA at start)
Leads: 32 AWG, about 30 mm long
Pin Definitions

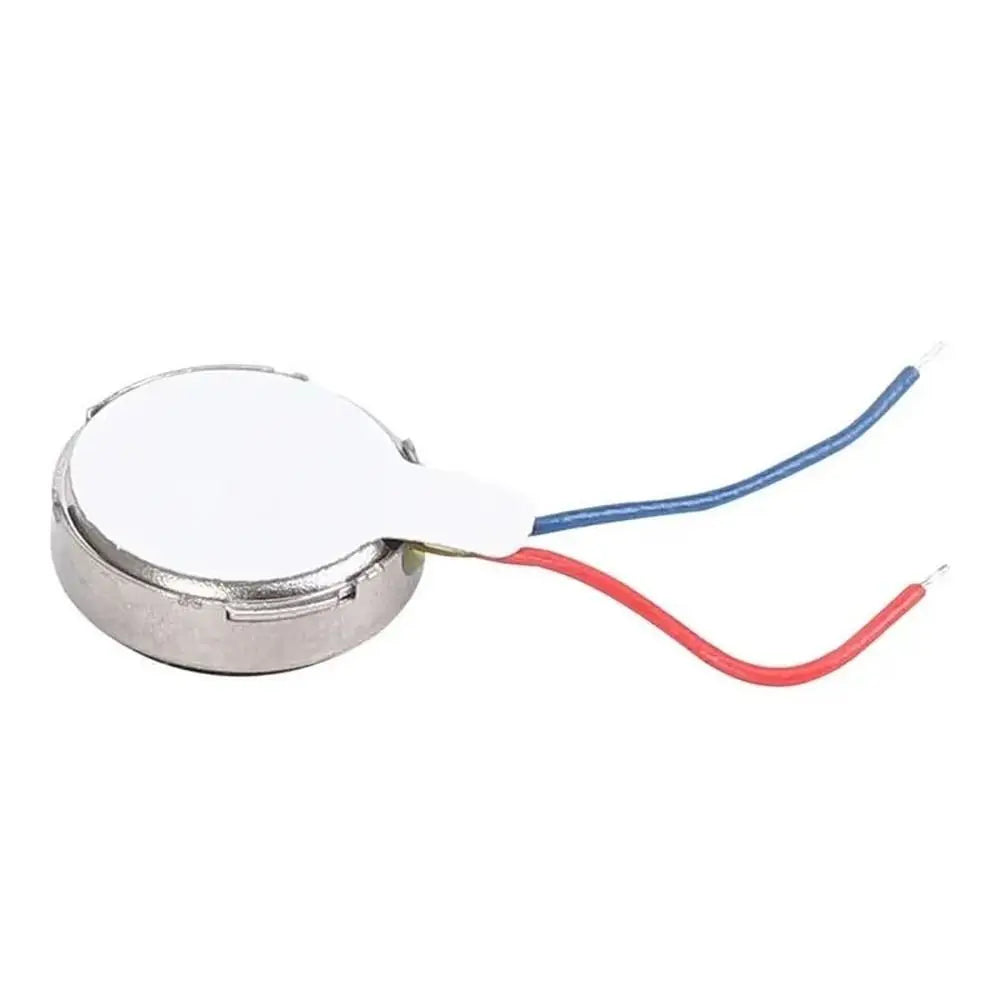

Red wire — Positive (+)
Blue wire — Negative (−)
Project Ideas
A glove that buzzes when you touch a conductive fabric patch, a navigation belt that taps left or right, a bracelet that pulses with a heartbeat sensor, or a bag that buzzes if it's left behind.
Good to know
Don't drive the motor straight from a microcontroller pin: it draws more current than a GPIO can safely supply. Use a small NPN transistor (such as a 2N2222) or MOSFET with a flyback diode (1N4148), or a haptic driver board. The leads are very fine, so add strain relief (a dab of glue or a stitch) before sewing it into a garment.
Note: I have added it directly to my circuits in some of my builds as I only used it for a brief alert in my circuit. I wired blue to ground, and the red wire to the pin that will set it high to vibrate.
