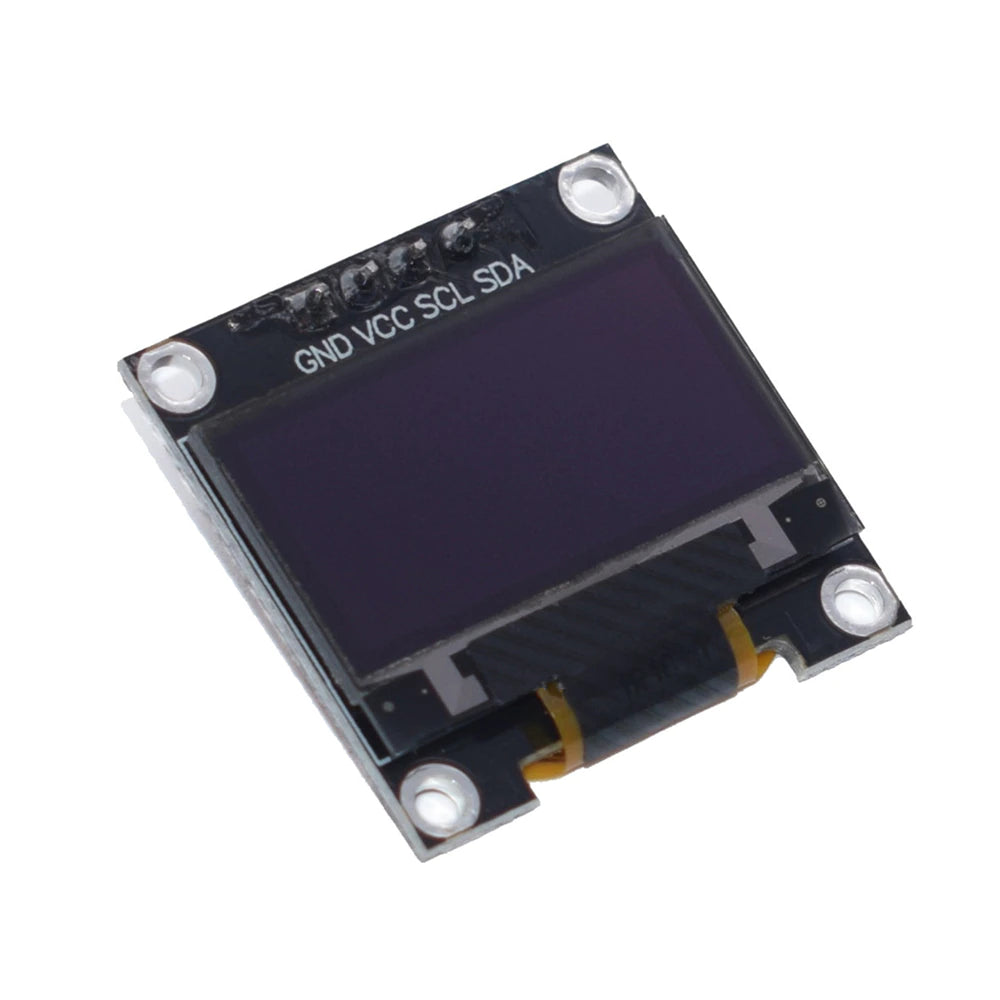

Black Circuit White OLED 0.96"

Black Circuit White OLED 0.96"

$8.45 CAD
$8.45 CAD
Sale Sold out
Shipping calculated at checkout.

A crisp, no-backlight white OLED that's perfect for wearables and compact maker projects. The SSD1306 controller communicates over I2C — just two wires (SDA + SCL) to your microcontroller and you're displaying data.

Warning: may produce weird and wonderful projects. Try the Maker-O-Matic 3000.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

OLED displays shine in dark environments: no backlight means true blacks, excellent contrast, and lower power draw compared to LCD alternatives.

Specs

  • Display: 0.96" OLED, 128 × 64 pixels, white
  • Controller: SSD1306
  • Interface: I2C (IIC) — SDA + SCL only
  • Voltage: 3.3V – 5V
  • PCB: Black, 25 × 25mm

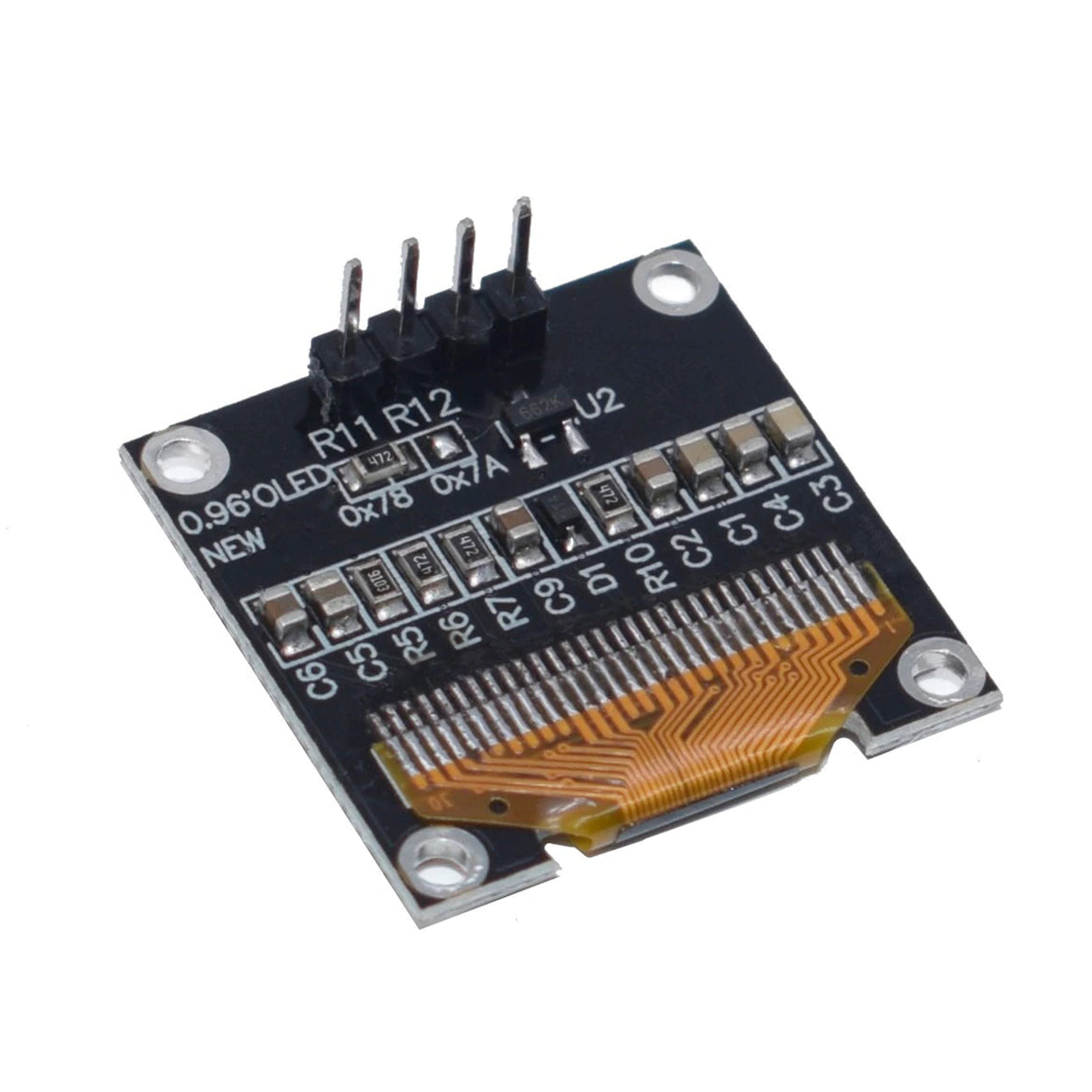

  • I2C Address: 0x78 (default) or 0x7A (via resistor swap on back)
  • No backlight — self-emissive display

Pin Definitions

  • GND — Ground
  • VCC — 3.3V to 5V power
  • SCL — I2C Clock
  • SDA — I2C Data

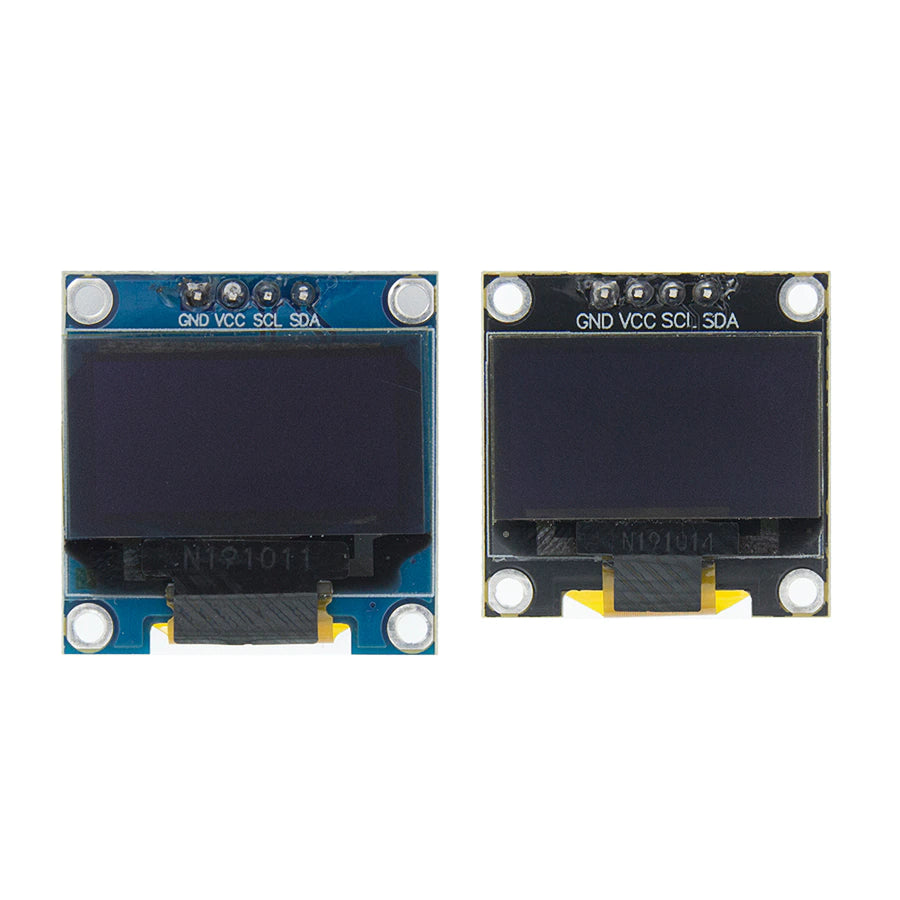

Other colours in this series
