• Wearable Simon Game video kit contents, photo 1
  • ESP32 30-pin USB-C development board, angled

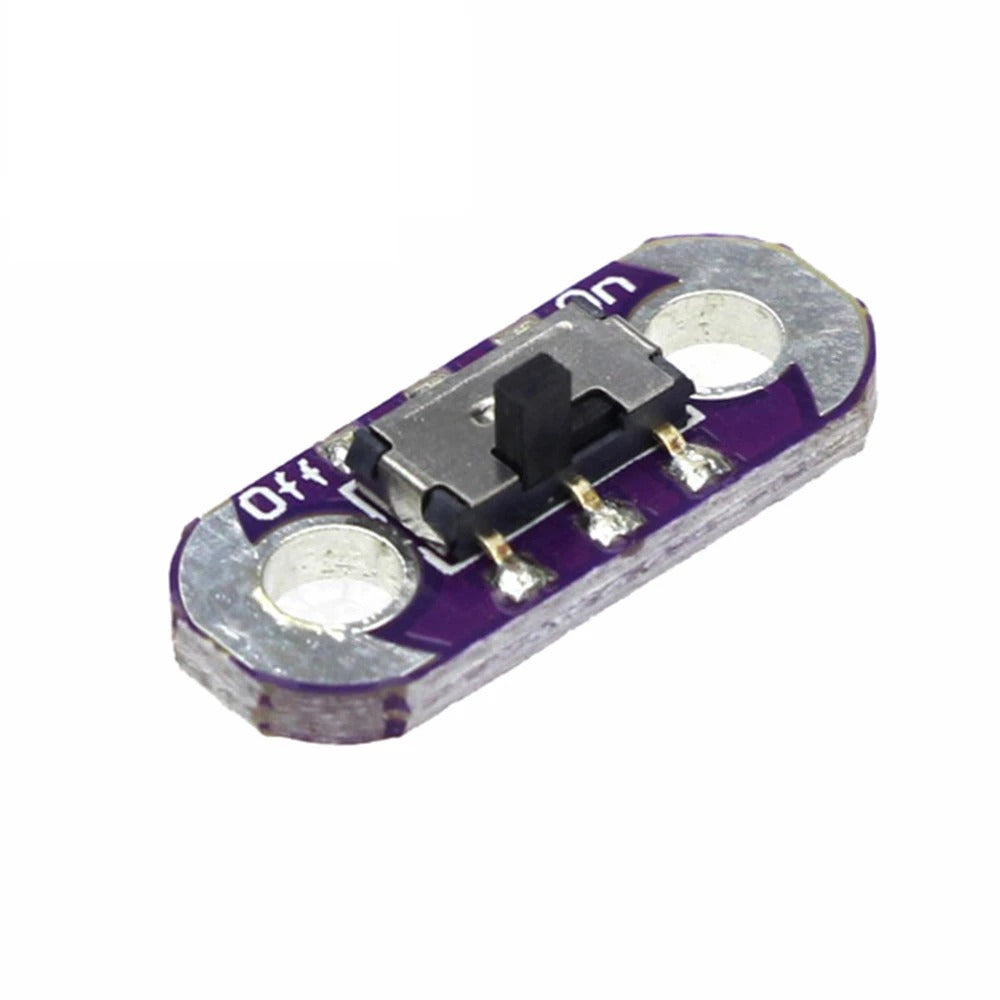

  • Sewable slide switch on a purple board

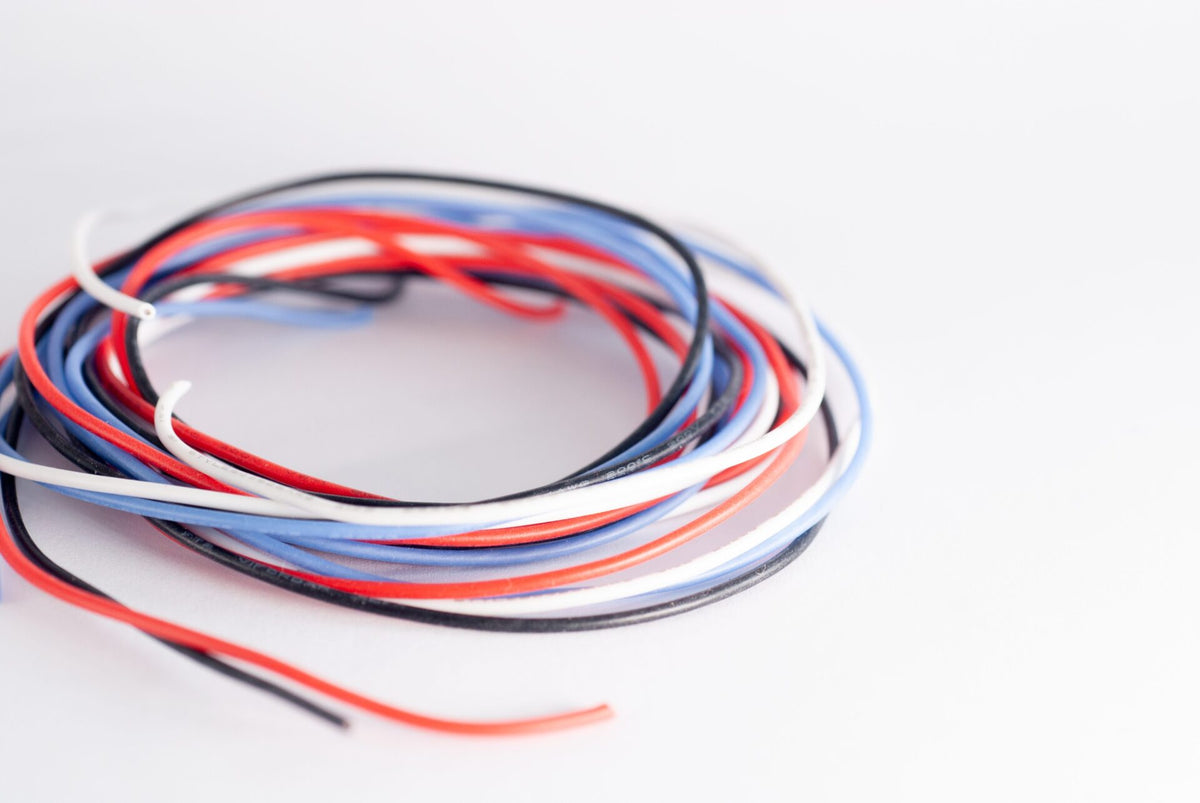

  • Mixed Sampler Soft Silicone Wire 24 AWG image 2

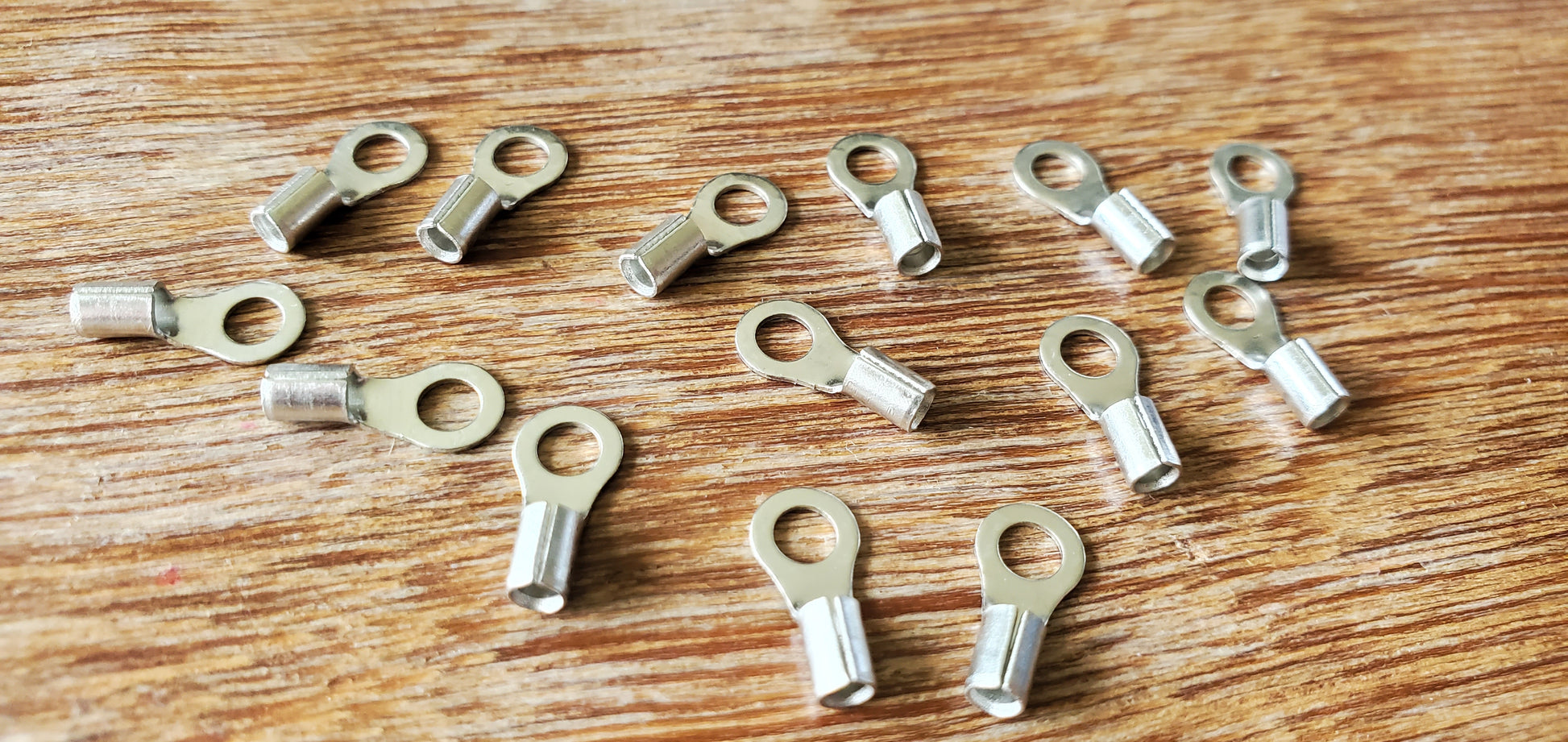

  • Electro Loops!! aka ring terminals image 8

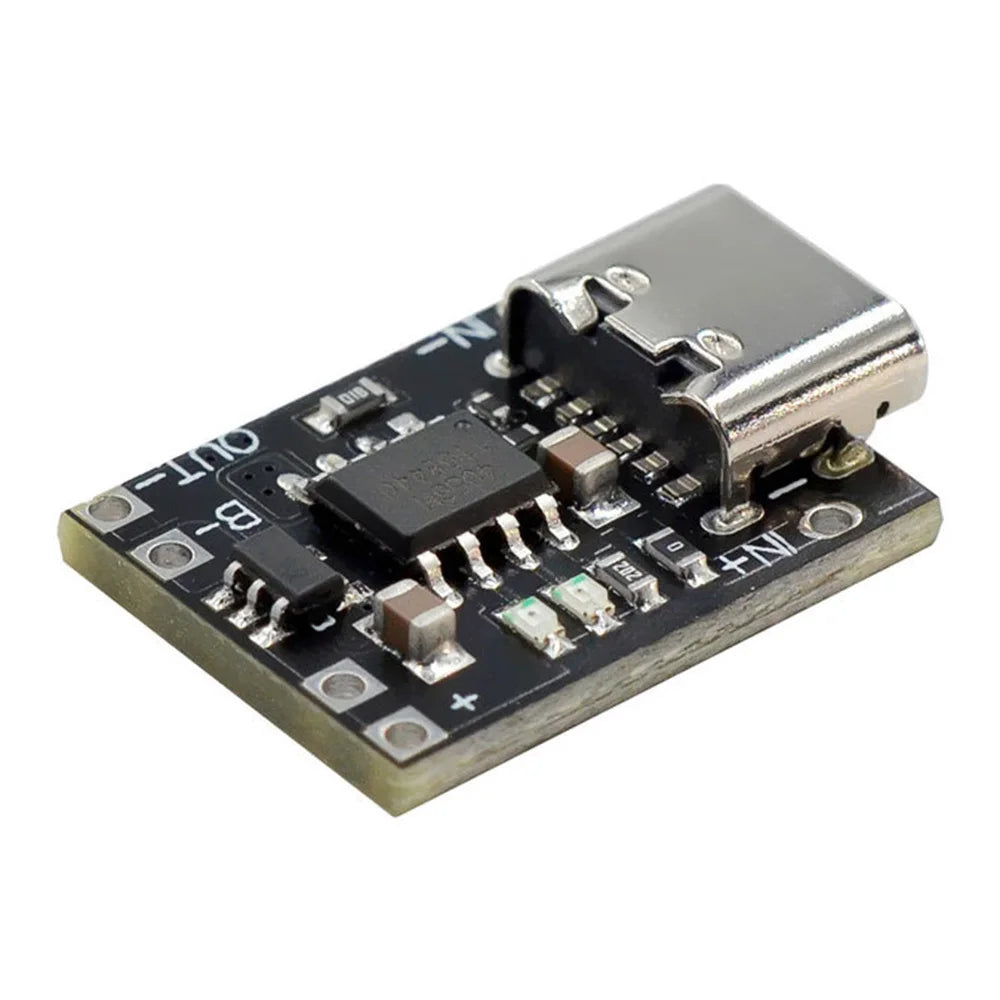

  • USB-C lithium battery charging board
  • Wearable Simon Game video kit contents, photo 2

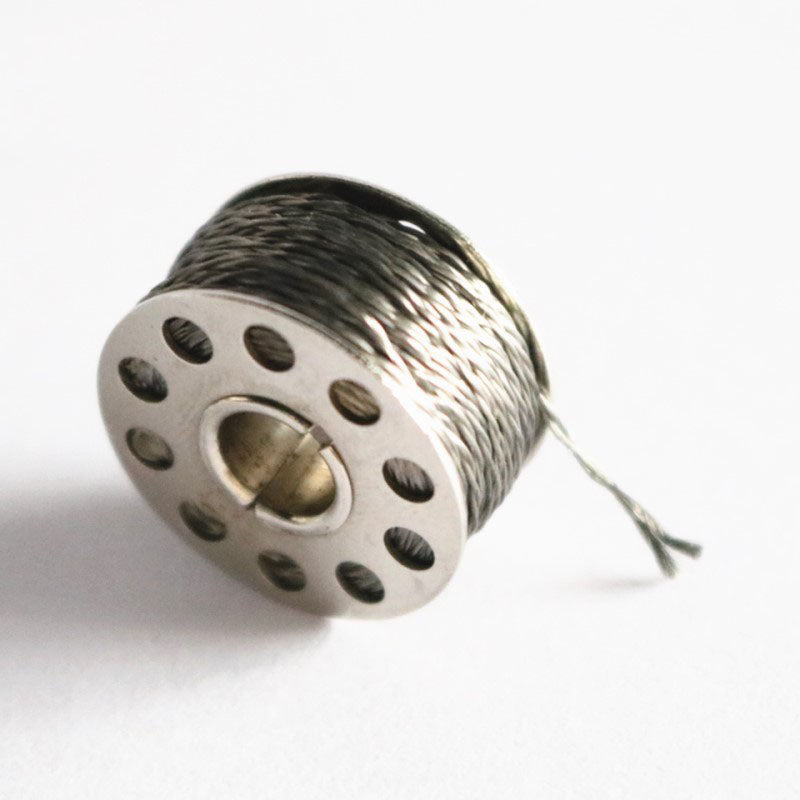

  • Bobbin of stainless steel 2-ply conductive thread
1 8
Limited ⚠️

Tinker Tailor

Wearable Simon Game Video Kit — Everything Used in the Build

Wearable Simon Game Video Kit — Everything Used in the Build

$49.95 CAD
$49.95 CAD
Sale Sold out
Shipping calculated at checkout.

Canadian-owned and packed by hand in Nova Scotia, so there's no cross-border duty or brokerage. Shipping rates

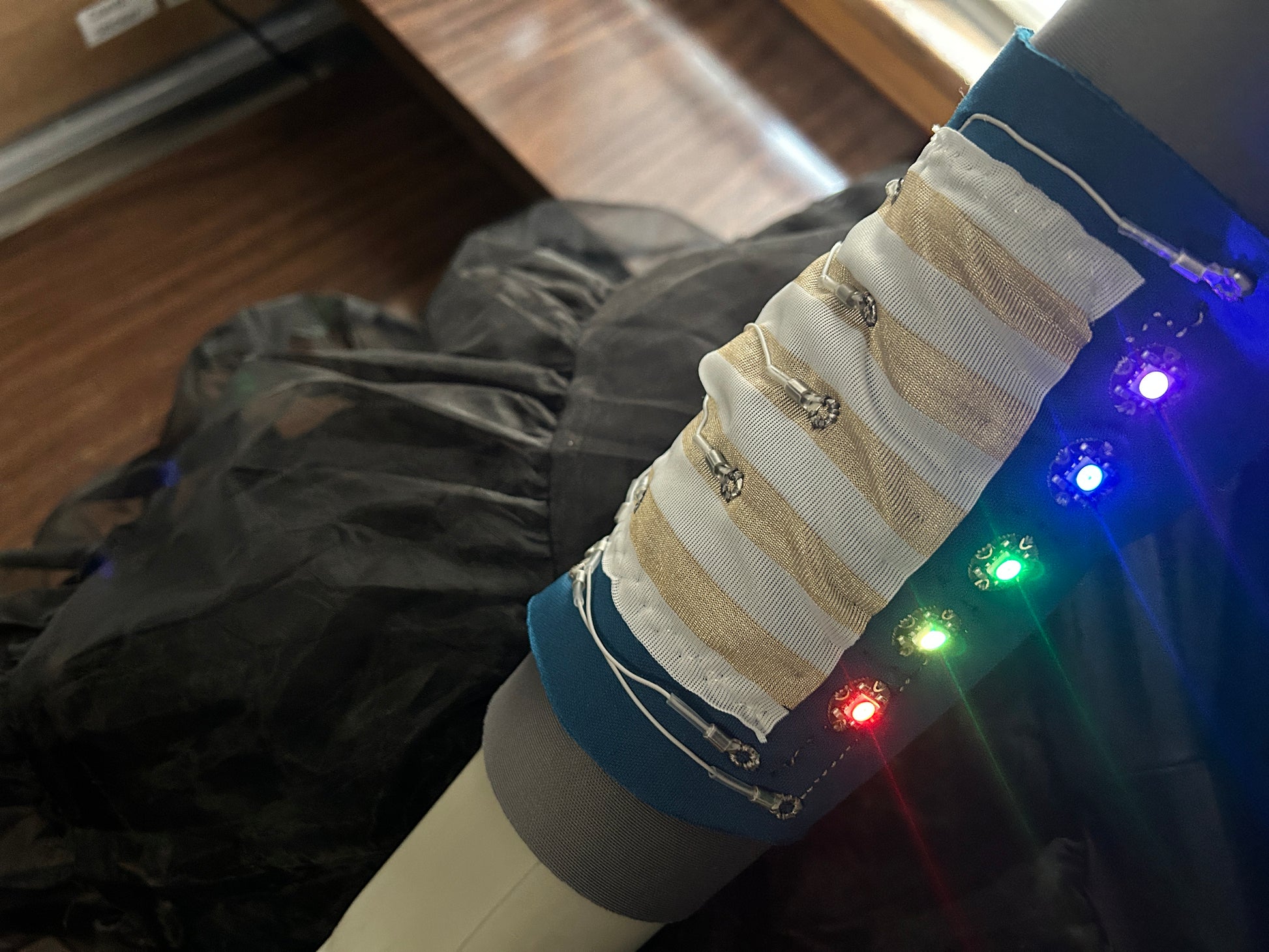

Everything used in the video — in one box. Build the Wearable Simon Game: a fabric memory game you can actually play on the go. Conductive fabric touch strips are your buttons, five addressable RGB LEDs flash the pattern (and show your score in binary!), and it all sews onto soft neoprene into a genuinely playable wearable. Watch the pattern, repeat it, and see how far you can get — the top score is 31.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

Kit Facts

  • Difficulty: Level 3 — Wearable Build
  • Soldering: Yes — the LED chips and wire connections
  • Sewing: Yes — conductive thread circuitry and fabric touch strips
  • You'll need: soldering iron, USB-C data cable, small LiPo battery

What's in the kit

  • ESP32 Development Board, 30-pin (USB-C)
  • RGB LED Button Chips, 5-pack — addressable WS2812B pixels for the game lights and binary score - sew or solder
  • An exclusive cut of striped conductive fabric for your touch strips — specially sourced, not available anywhere else (even in our shop)
  • Sewable slide switch
  • Soft silicone wire, 24 AWG mixed sampler (1m lengths)
  • Electro Loops (ring terminals, 15-pack)
  • Lithium battery charging board (USB-C)

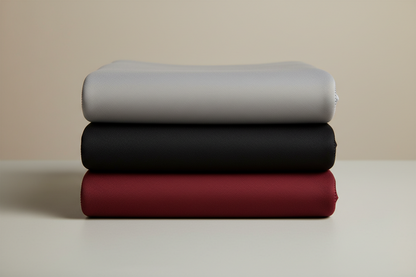

  • Neoprene base fabric, 30 × 20cm
  • Stainless steel 2-ply conductive thread, 25m
  • Sewing needle and needle threader

Good to know

  • The LED button chips are sewable LEDs — they can be soldered or used as sew tabs, exactly as used in the video. You can sew or solder thread/wire between them to make the chain.
  • Colours may vary: the neoprene may be black, grey/silver, teal, or wine, and the LED chip boards may be black or white PCB — all are equivalent for the build.
  • ⚠️You'll need a USB-C data cable to program the ESP32. Many USB-C cables are charge-only and will not work — if you're not sure, grab our USB-C data cable.

🖥️ Code for the build is free on GitHub: github.com/cmoz/SimonMemoryWearableWoop

NOTE: This is a LIMITED kit - based on availability of the specialist 'zebra' conductive fabric so - when it's gone, it's gone! If we secure a reliable source, we will remove the limited-availability stock notice.
