Tinker Tailor

Soldering Practice Board

Soldering Practice Board

$9.95 CAD
$9.95 CAD
Sale Sold out
Shipping calculated at checkout.

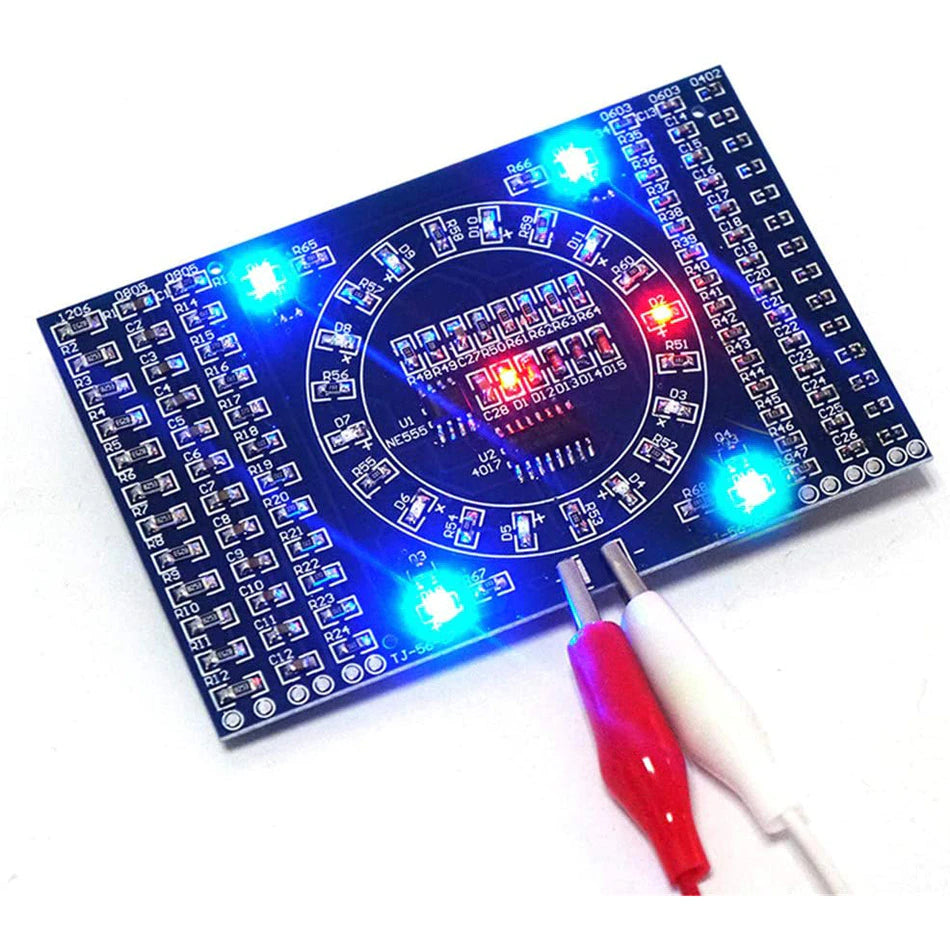

The best way to learn SMD soldering is to build something that actually does something cool when you're done. This NE555 rotating LED practice board produces a mesmerising chasing "water lamp" effect once assembled — power it from 3–12V and the LEDs loop in a smooth sequence, instantly showing whether your solder joints are solid.

Make something you didn't plan to. The Maker-O-Matic 3000 will get you started.

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

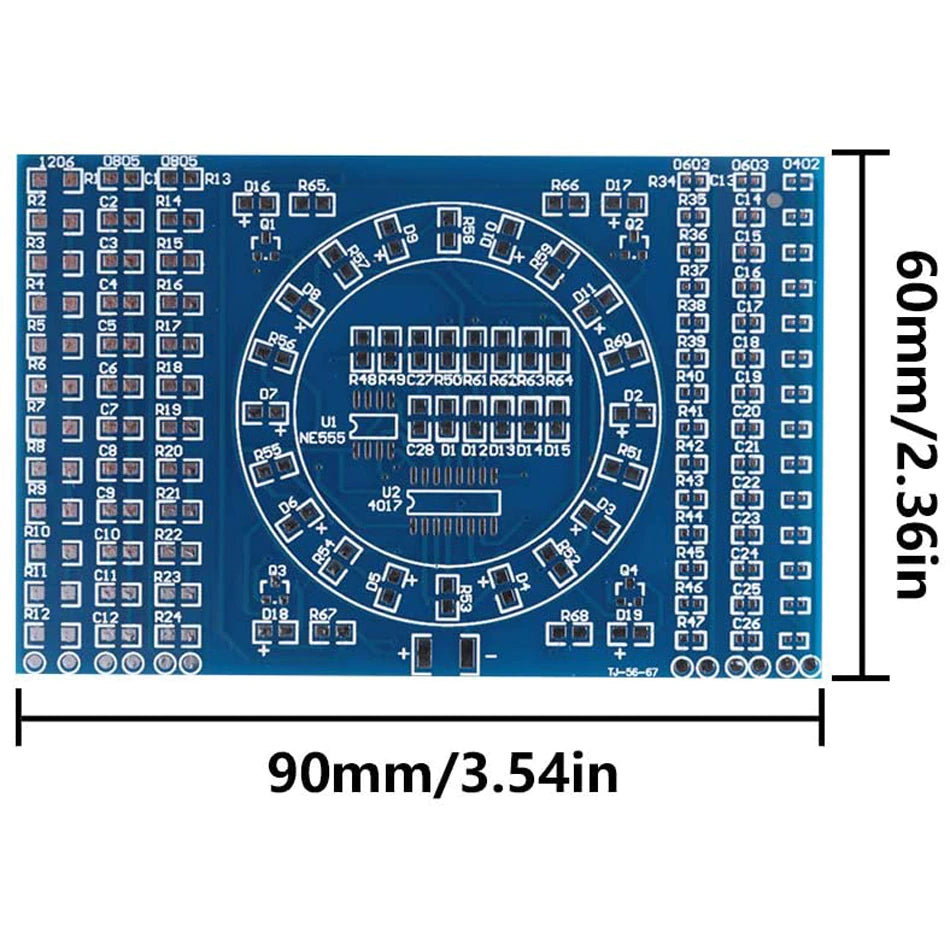

The 1.6mm PCB has all components clearly marked, making it easy to place parts correctly. A great first SMD project for anyone stepping up from through-hole soldering.

Key Details

  • Circuit: NE555 timer + LED driver
  • Effect: Rotating/chasing LED "water lamp"
  • Power: 3–12V DC
  • PCB: 1.6mm, clearly labelled component placement
  • Component type: SMD (surface-mount)

Tips for success

  • Double-check component orientation before soldering
  • Watch for cold (pseudo) joints and floating solder bridges
  • Test at 3V first before going higher
