Tinker Tailor
Neo Tester
Neo Tester
Couldn't load pickup availability

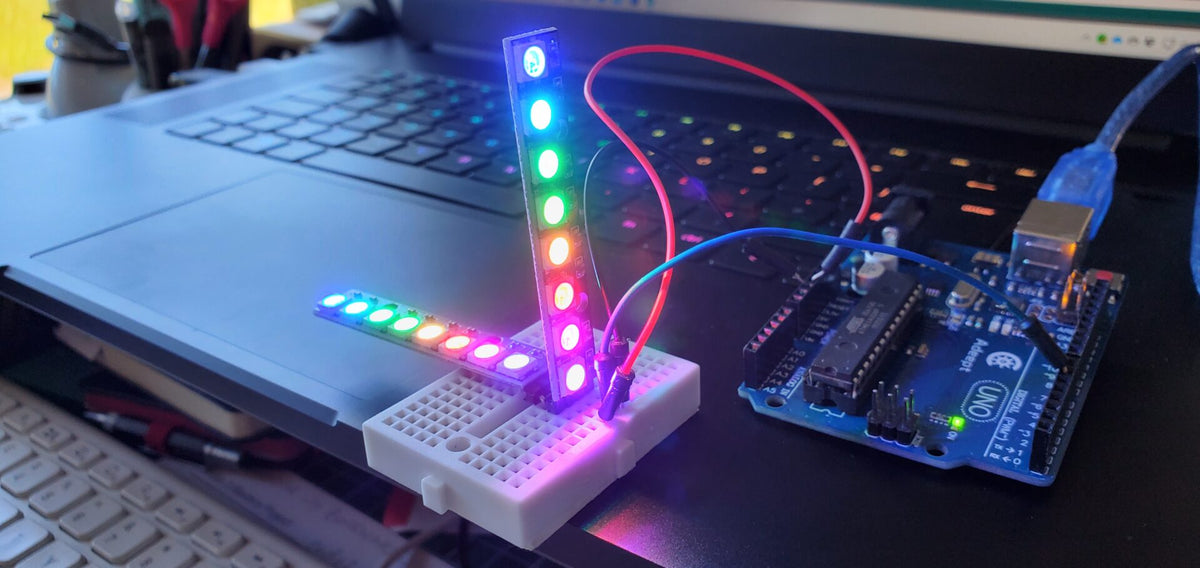

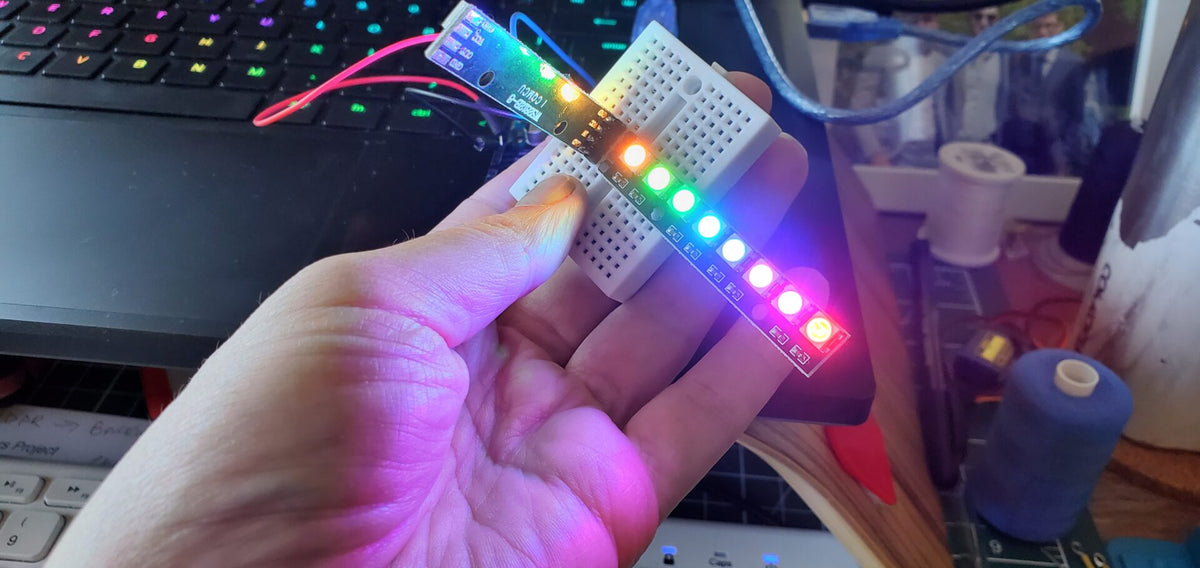

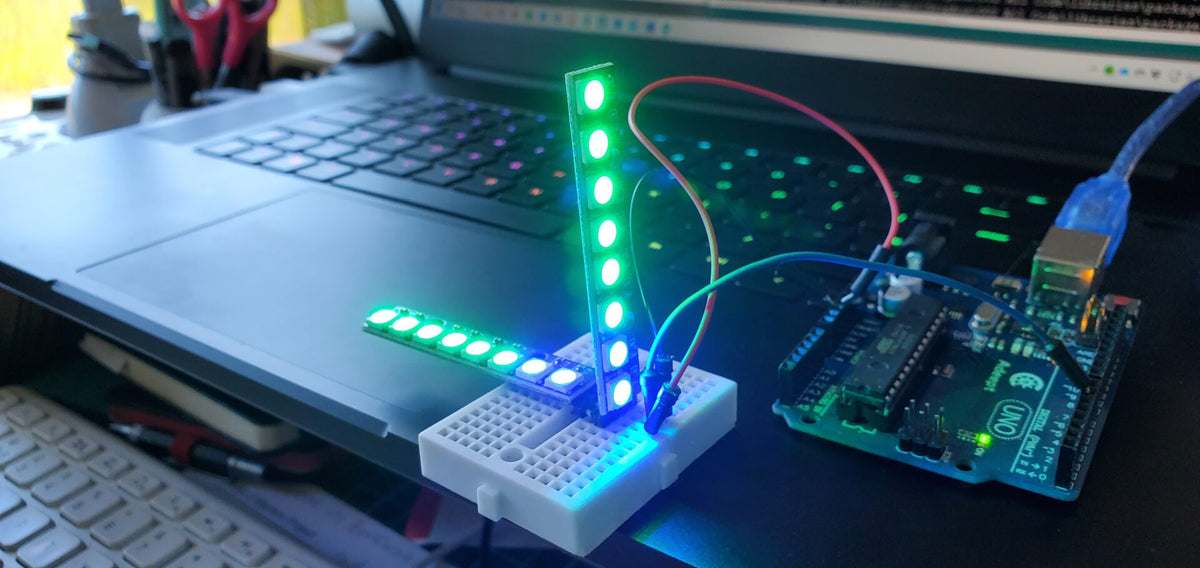

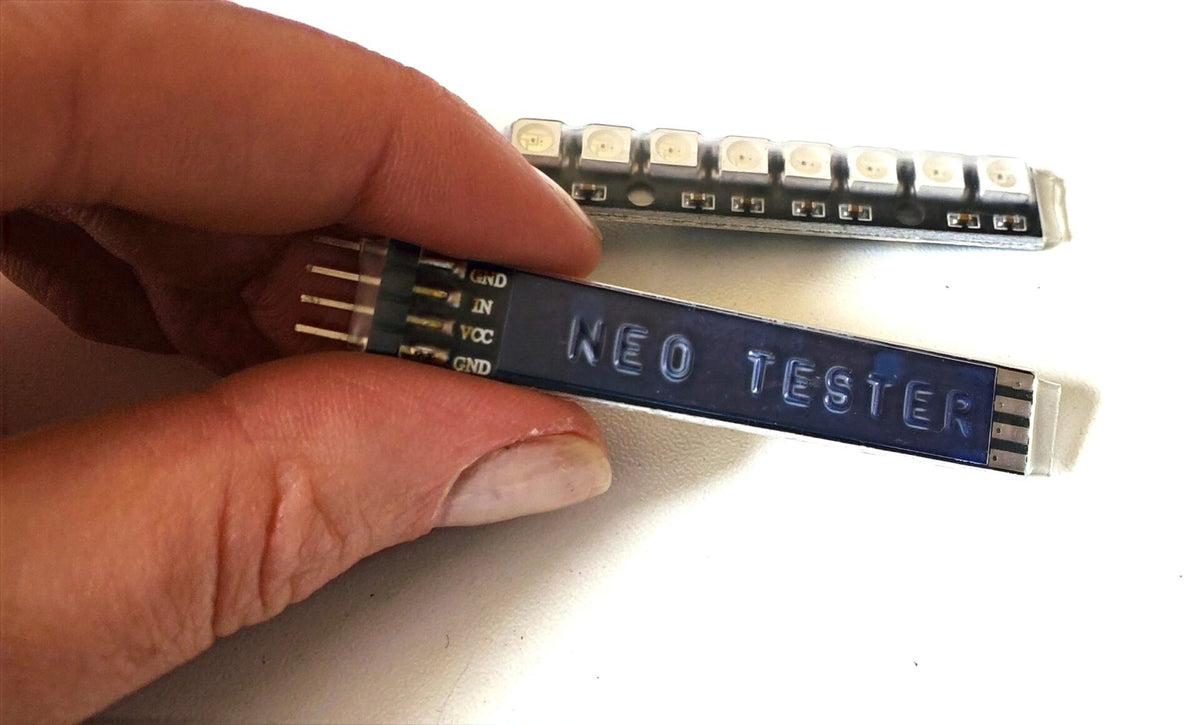

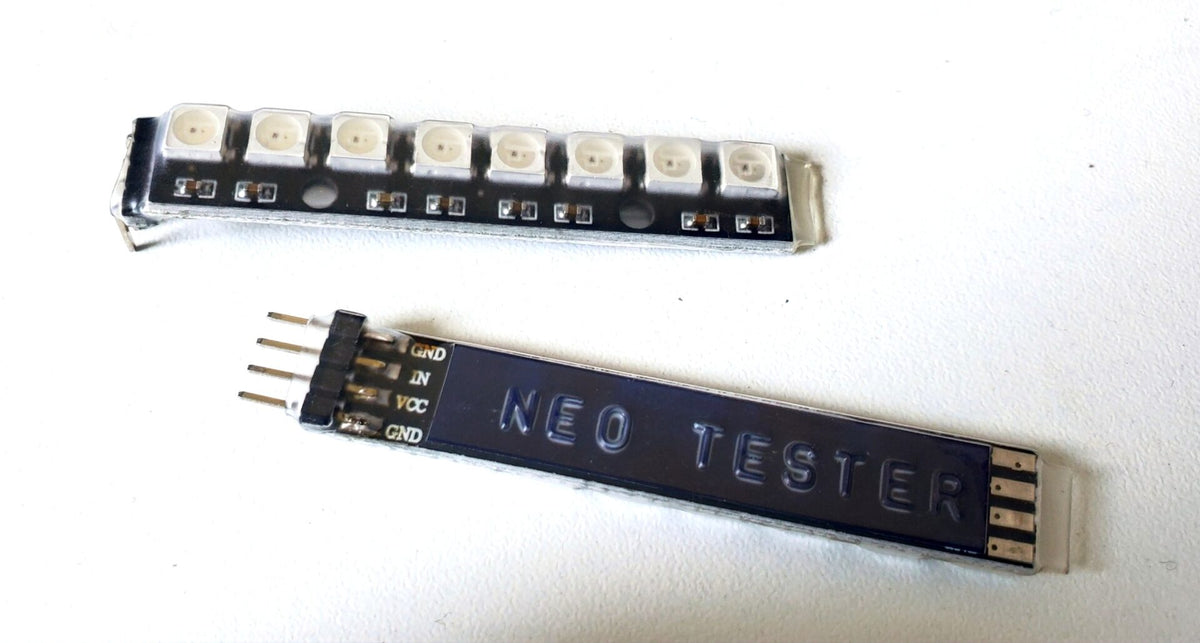

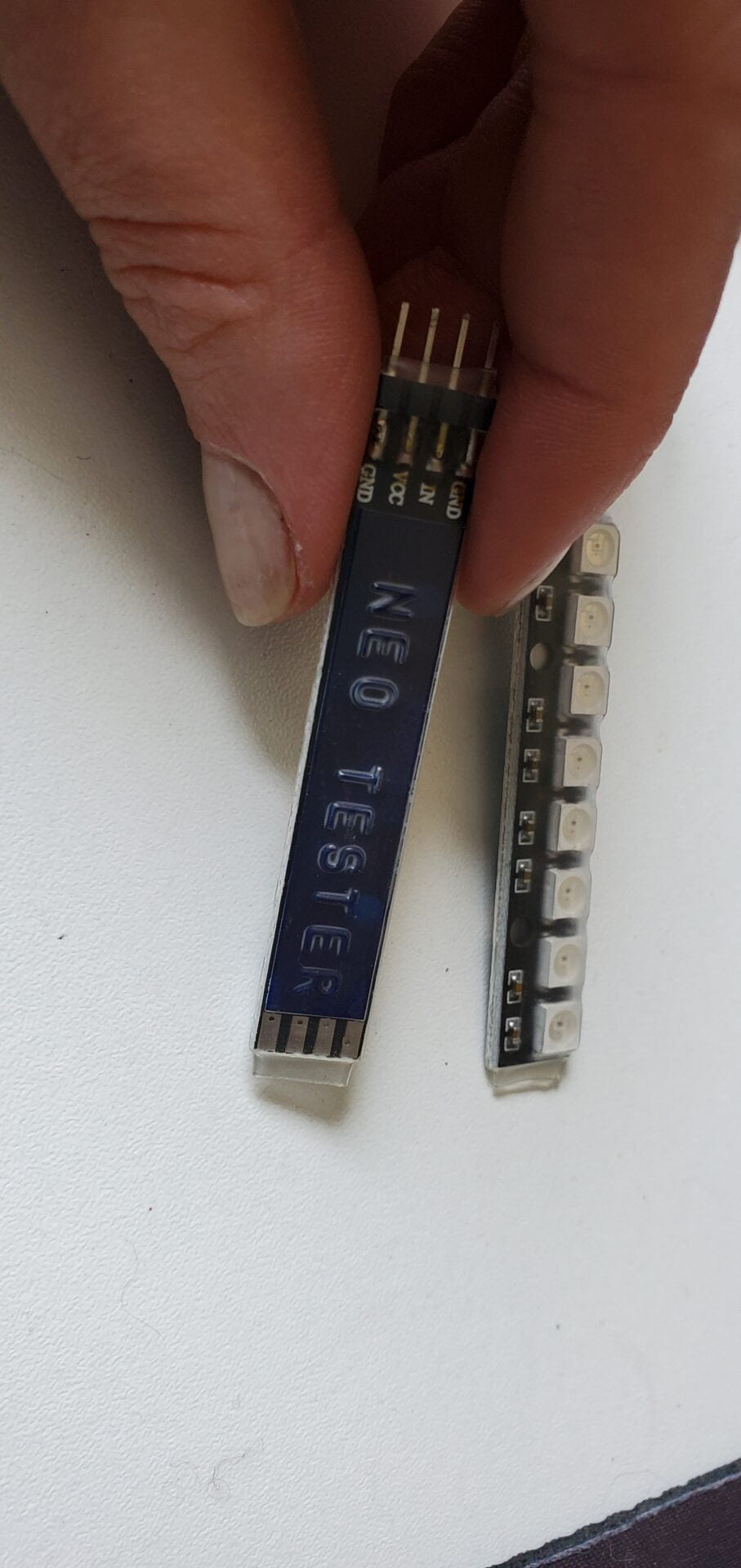

A Tinker Tailor original — the Neo Tester is an 8-LED WS2812B RGB circuit strip with header pins, designed to make NeoPixel prototyping instant. No soldering, no trimming, no hunting for the right size. Just plug into a breadboard and go.
Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca
Add this too
Details
Fully assembled and tested by hand in Nova Scotia — headers soldered, heat-shrink protected, and labelled, so it's ready the moment it arrives. Prefer to solder your own? Our bare 8-Bit WS2812 Rectangle Module is the budget-friendly DIY route.
Choose your orientation:
- Straight pins — LEDs stand upright from your breadboard
- 90° right-angle pins — LEDs lay flat
Pin header colours will vary.
Specs
- 8 × WS2812B 5050 RGB LEDs, individually addressable
- Header pins: straight or 90° right-angle
- Compatible with FastLED, Adafruit NeoPixel library, Arduino, ESP32
- Designed and made by Tinker Tailor
Related products
- Rather solder your own? The bare 8-Bit WS2812 Rectangle Module (white or black).
- Need more LEDs in a ring? Try the 16-LED WS2812B RGB Ring.
- Want a flexible sewable strip? See the WS2812B Flexible RGB LED Strip.
- Need a board to drive it? Try the Adafruit Circuit Playground Classic.
Want code for these lights without the headache? Preview your effects and copy a ready-to-run PlatformIO or Arduino sketch with the CMozGlow code generator. Learn more about the CMozGlow library.
