White ESP32-WROOM-32E Development Board 30-Pin (USB-C)

White ESP32-WROOM-32E Development Board 30-Pin (USB-C)

Regular price $17.95 CAD
Regular price Sale price $17.95 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity

Not sure which board? Compare every board by chip, touch pins, size and wireless.

Microcontroller Guide →
> PlatformIO setup (platformio.ini)

Paste this into your platformio.ini to get this board running.

[env:esp32dev]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
upload_speed = 921600
  • Use a USB-C data cable: many cables only charge.
  • No port showing? Install the CH340 or CP2102 driver; the chip name is printed next to the USB socket.
  • Stuck on "Connecting..."? Hold the BOOT button until the upload starts.
  • Touch pins for conductive fabric: GPIO 4, 2, 15, 13, 12, 14, 27, 33 and 32.

Shipping in Canada from $3.50 for small parcels up to 150 g, usually arriving in about 4 business days. Canadian-owned and packed by hand in Nova Scotia, so there's no cross-border duty or brokerage. Shipping rates

1 total reviews

Grab the 'snow' board while they are in stock!

Ships next business day from Nova Scotia · 30-day returns · Questions? cmoz@tinkertailor.ca

View full details

Details

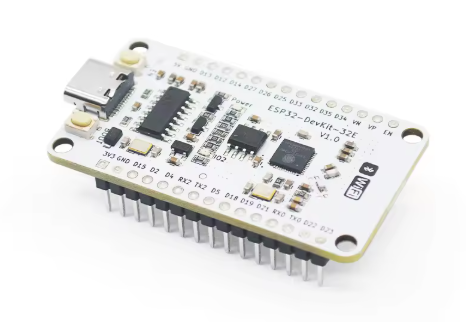

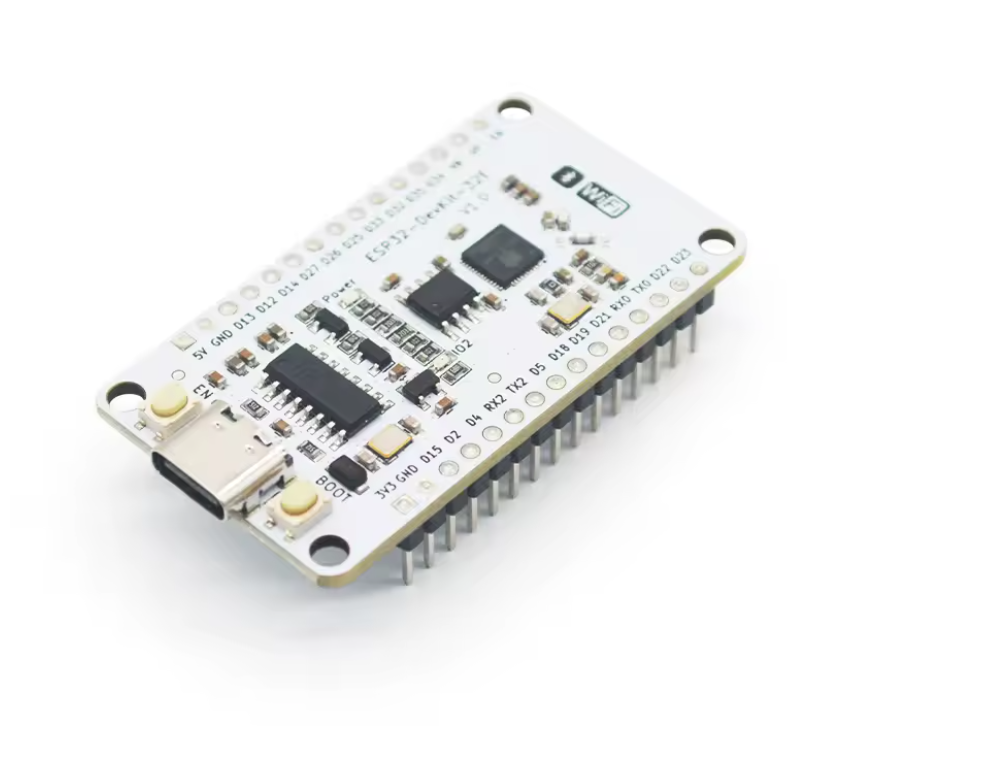

The classic ESP32, dressed for fashion tech. A white-PCB ESP32 development board with gold detailing — the same dual-core WiFi + Bluetooth workhorse behind countless tutorials, on a board your project won't want to hide. Built on the ESP32-WROOM-32E, the newest revision of the classic module, with USB-C and the compact 30-pin layout.

Highlights

  • ESP32-WROOM-32E module — the current-generation revision Espressif recommends for new designs: V3 silicon, improved stability, 4MB flash
  • Dual-core 240MHz, WiFi 2.4GHz + Bluetooth
  • USB-C connector for power and programming

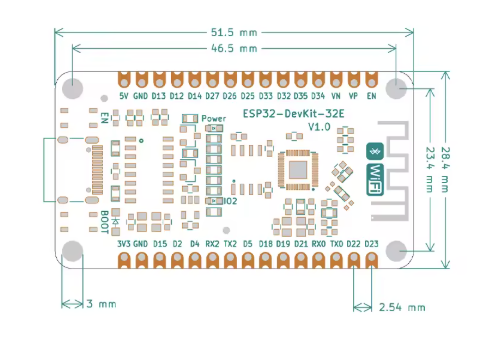

  • 30-pin layout — narrower than the 38-pin, easier to breadboard
  • BOOT and EN buttons on board
  • Fully code-compatible with every ESP32 WROOM tutorial — works with PlatformIO, Arduino IDE, ESP-IDF, and MicroPython
  • A limited run — when they're gone, they're gone

Good to know

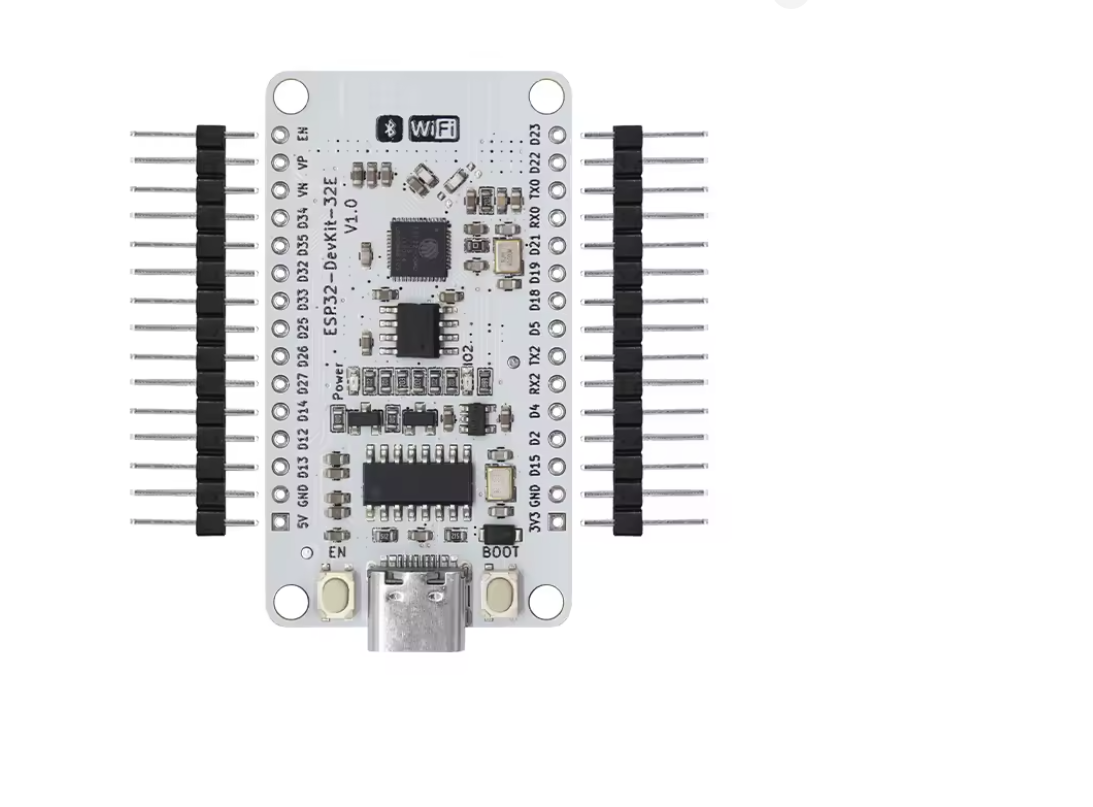

  • Headers included, unsoldered — two 15-pin strips ship in the bag, ready for you to solder in the orientation your project needs. An easy soldering job, and a chance to keep the board low-profile for wearables if you'd rather solder wires directly.
  • You'll need a USB-C data cable to program the board. Many USB-C cables are charge-only and will not work — if you're not sure, grab our USB-C data cable.
  • Prefer it pre-soldered and understated? The classic black 30-pin USB-C ESP32 ships with headers already on.
